The MPCVD (Microwave Plasma Chemical Vapor Deposition) method for growing single-crystal diamonds relies on specific gases that provide the necessary carbon source and facilitate the plasma environment for diamond formation. The primary gases used are hydrogen (H₂) and methane (CH₄), with nitrogen (N₂) and oxygen (O₂) sometimes added to influence growth conditions or diamond properties. These gases are broken down into reactive species like H, CH₃, and C₂H₂ under microwave excitation, enabling the deposition of high-quality diamond crystals. The process balances gas ratios and plasma conditions to optimize crystal growth, purity, and structural integrity.
Key Points Explained:
-

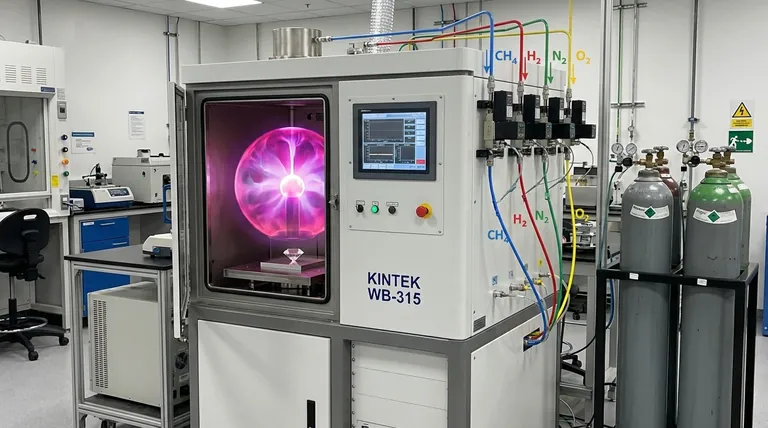

Primary Gases in MPCVD Diamond Growth
-
Hydrogen (H₂):
- Acts as a carrier gas and plasma stabilizer.
- Dissociates into atomic hydrogen (H), which etches non-diamond carbon phases (e.g., graphite) and promotes diamond lattice formation.
- Critical for maintaining the high-temperature plasma environment (~2000–3000°C) needed for diamond synthesis.
-
Methane (CH₄):
- The primary carbon source for diamond growth.
- Breaks down into methyl radicals (CH₃) and acetylene (C₂H₂), which deposit carbon atoms onto the substrate.
- Typically used in low concentrations (1–5% of total gas volume) to avoid excessive non-diamond carbon incorporation.
-
Hydrogen (H₂):
-
Secondary Gases and Their Roles
-
Nitrogen (N₂):
- Introduced to modify diamond properties (e.g., creating nitrogen-vacancy centers for quantum applications).
- Can increase growth rates but may also introduce defects or yellow coloration in diamonds.
-
Oxygen (O₂):
- Enhances the etching of non-diamond carbon impurities, improving crystal purity.
- Reduces soot formation and stabilizes the plasma at lower pressures.
-
Nitrogen (N₂):
-
Gas Dissociation and Plasma Dynamics
- Microwave energy cleaves gas molecules into reactive species (e.g., H, CH₃, OH).
- Atomic hydrogen (H) dominates the plasma, suppressing graphite formation and promoting sp³ carbon bonding (diamond’s crystalline structure).
- Gas ratios (e.g., CH₄/H₂) are tightly controlled to balance growth speed and crystal quality.
-
Practical Considerations for Gas Selection
- Purity Requirements: Ultra-high-purity gases (99.999% or better) are essential to prevent contamination.
- Safety: Hydrogen is flammable, and methane is explosive; systems require leak detection and ventilation.
- Cost: Hydrogen and methane are relatively inexpensive, but nitrogen and oxygen additives increase operational complexity.
-
Emerging Trends
- Research explores alternative carbon sources (e.g., CO₂) or dopants (e.g., boron for conductive diamonds).
- Advanced plasma diagnostics optimize gas mixtures for specific applications (e.g., optical, electronic).
By understanding these gas interactions, manufacturers can tailor MPCVD processes for high-purity single-crystal diamonds used in cutting tools, semiconductors, and quantum devices.
Summary Table:
| Gas | Role in MPCVD Diamond Growth | Key Considerations |
|---|---|---|
| Hydrogen (H₂) | Carrier gas, plasma stabilizer, etches non-diamond carbon, promotes diamond lattice formation. | Requires ultra-high purity (99.999%+). |
| Methane (CH₄) | Primary carbon source, breaks into CH₃/C₂H₂ for diamond deposition. | Low concentrations (1–5%) prevent impurities. |
| Nitrogen (N₂) | Modifies properties (e.g., NV centers for quantum tech), may increase defects. | Can cause yellow coloration. |
| Oxygen (O₂) | Enhances purity by etching impurities, stabilizes plasma at lower pressures. | Reduces soot formation. |
