Tube Furnace

Vertical Laboratory Quartz Tube Furnace Tubular Furnace

Item Number : KT-VTF

Price varies based on specs and customizations

Max. temperature: 1800℃
Temperature control accuracy: ±1℃
Furnace tube material: High grade Quartz/ Al2O3 alumina

Shipping:

Description
Downloads

View Specs Request Your Custom Quote 👋

Request Quote

Live Chat View Specs

Why Choose Us

Easy ordering process, quality products, and dedicated support for your business success.

Easy Process Quality Assured Dedicated Support

Product Details & Key Components

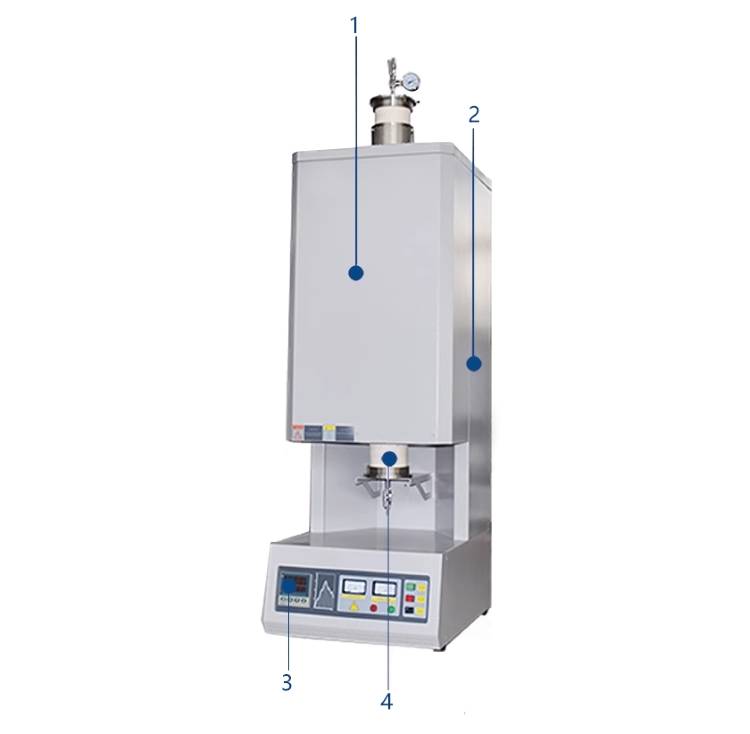

1. electrostatic spraying furnace body 2. heating chamber 3. 30-segment programmable PID control 4. heating tube

product details

Advanced High-Temperature Solutions by KINTEK

Leveraging exceptional R&D and in-house manufacturing, KINTEK provides diverse laboratories with advanced high-temperature furnace solutions. Our product line, including Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD/MPCVD Systems, is complemented by our strong deep customization capability to precisely meet unique experimental requirements.

KINTEK Vertical Tube Furnaces are precision-engineered laboratory equipment for high-temperature material processing under controlled atmospheric conditions. They feature a vertically oriented tube (often quartz or alumina) within a heating chamber, ensuring precise temperature control and uniform heat distribution. Operating on the principle of radiant heat transfer from surrounding heating elements (e.g., MoSi2 or SiC), our furnaces deliver efficient and consistent heating to the sample. This design allows for rapid heating and cooling, making them ideal for a multitude of research and industrial tasks.

Key Features & Advantages of KINTEK Vertical Tube Furnaces

Our Vertical Tube Furnaces are designed to offer versatility, precision, and safety for your demanding applications:

Versatile Experimental Setups: The vertical or sloped furnace chamber positioning allows for diverse experiments, including fluent bed heating, crystal pulling growth, quenching, and more.
Adaptable Mechanical Functions: Accommodates various sample manipulations such as hanging, pulling, spinning, and releasing, enhancing experimental flexibility.
Wide Operating Temperature Range: Capable of reaching maximum temperatures up to 1800℃, suitable for a broad spectrum of high-temperature processes.
Precision Temperature Control: PID programmable temperature control ensures excellent accuracy (±1℃) and stable heating. The VTF Pro model features a user-friendly touch screen controller for intuitive program setting, data analysis, and recipe management. Remote and centralized control options are available.

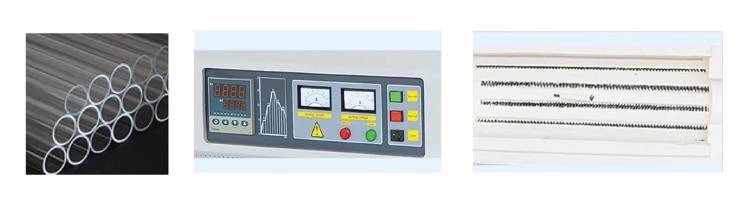

Durable Construction: Features a high-temperature corundum tube (corrosion-resistant, high transmittance, pressure-resistant up to 1700℃) and an alumina polycrystalline fiber hearth (high-temperature resistant, non-deforming, crack-resistant).
Enhanced Safety by Design:
- A double furnace shell design with forced air flow maintains a low furnace surface temperature.
- Comprehensive safety features include over-current protection and over-temperature alarming, automatically shutting off power if anomalies are detected.
- Built-in thermocouple detection system stops heating and triggers an alarm if the thermocouple breaks or fails.
Experiment Continuity: The power failure restart function (available on VTF Pro) allows the furnace to resume the heating program automatically once power is restored, safeguarding your experiments.
Customization: We offer specialized frock equipment customization to adapt the furnace to your specific experimental requirements. Contact us to discuss your custom needs.

Diverse Applications

KINTEK Vertical Tube Furnaces are versatile heating devices critical for a wide range of applications in various industries and laboratory settings, especially for processes requiring precise temperature control and operation under vacuum or controlled gas atmospheres:

Gas Quenching Tests: Rapidly cool samples from high temperatures to study material phase transitions and the effects of rapid cooling.
Heat Treatment: Perform annealing, tempering, and stress relieving to improve material properties like strength, hardness, and ductility.
Chemical Vapor Deposition (CVD): Deposit thin films on substrates via chemical reactions in a gaseous environment, essential in semiconductor manufacturing.
Crystal Growth: Grow high-quality crystals from molten or vapor phases for optics, electronics, and other advanced applications.
Materials Testing: Conduct thermal conductivity measurements, melting point determinations, and phase transition studies.
Other Key Processes:
- Sintering
- Brazing
- Calcination
- Ceramics processing
- Glassworking
- General laboratory research
- Powders processing

Technical Specifications

Our Vertical Tube Furnaces are available in standard and pro models, with options for customization:

Furnace model	KT-VTF	KT-VTF PRO
Temperature controller	Digital PID controller	Touch screen PID controller
Multi program preset	no	yes
Power failure restarting	no	yes
Max. temperature	1800℃
Furnace tube material	High grade Quartz/ Al2O3 alumina
Furnace tube diameter	50 / 60 / 80 / 100 mm
Heating zone length	300 / 450 / 600 / 800 mm

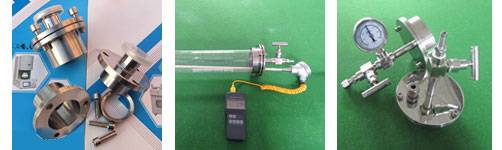

Vacuum sealing solution	SS 304 flange with solid copper seal ring
Rated vacuum pressure	0.001Pa/10E5 torr
Chamber material	Japan Al2O3 alumina fiber
Heating element	Cr2Al2Mo2 wire coil/SiC/MoSi2
Thermal couple	K /S/B type
Temperature control accuracy	±1℃
Electric power supply	AC110-220V,50/60HZ
Other furnace tube size and heating zone length can be customized

Standard Package & Customization Options

Each KINTEK Vertical Tube Furnace comes with a comprehensive standard package to get you started:

Standard Package

No.	Description	Quantity
1	Furnace	1
2	Alumina tube	1
3	Vacuum flange	2
4	Tube thermal block	2
5	Tube thermal block hook	1
6	Heat resistant glove	1
7	Operation manual	1

Tailor Your Furnace: Optional Setups

Enhance your furnace's capabilities with our range of optional setups, designed to meet specific experimental needs:

In-tube gas detection and monitoring (e.g., H2, O2).
Independent furnace temperature monitoring and recording.
RS 485 communication port for PC remote control and data exporting.
Insert gas feeding flow rate control (mass flowmeter, float flowmeter).
Upgrade to touch screen temperature controller with versatile operator-friendly functions (standard on VTF Pro).
High vacuum pump station setups (vane vacuum pump, molecular pump, diffusion pump).

KINTEK excels in deep customization. If your requirements go beyond these options, we are ready to develop a solution tailored for you.

Partner with KINTEK for Your High-Temperature Needs

Ready to advance your research or industrial processes with a KINTEK Vertical Tube Furnace? Our team of experts is dedicated to providing you with the optimal high-temperature solution, backed by robust R&D and manufacturing capabilities.

Whether you require a standard model or a fully customized system, we are here to assist. For detailed consultations, to discuss your unique experimental requirements, or to request a quote, please reach out to us.

Contact KINTEK Today to explore how our Vertical Tube Furnaces can meet your specific needs.
