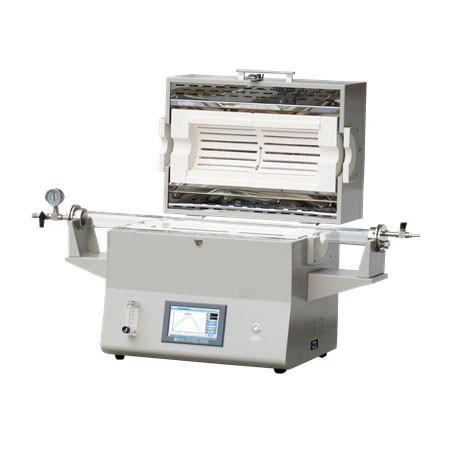

Tube Furnace
1400℃ High Temperature Laboratory Tube Furnace with Quartz and Alumina Tube
Item Number : KT-TF14
Price varies based on specs and customizations
- Max. temperature
- 1400℃
- Furnace tube material
- High grade Al2O3 alumina
- Heating zone length
- 300~800mm
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Leveraging exceptional R&D and in-house manufacturing, KINTEK provides diverse laboratories with advanced high-temperature furnace solutions. Our product line, including Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD/MPCVD Systems, is complemented by our strong deep customization capability to precisely meet unique experimental requirements.
KINTEK Tube Furnace with Alumina Tube: Precision High-Temperature Processing
Our Tube Furnace with Alumina Tube is a state-of-the-art laboratory equipment designed for high-temperature applications (standard models up to 1400°C, with options up to 2000°C available through customization). It's engineered for precision, reliability, and versatility in research and industrial settings, commonly used for material synthesis, chemical vapor deposition, vacuum sintering, and heat treatment.
The furnace features a robust heating element enclosed within a high-purity alumina ceramic tube. This alumina tube provides excellent thermal insulation, resistance to extreme temperatures, acids, and alkalis, ensuring minimal contamination and an extended service life for your critical processes.

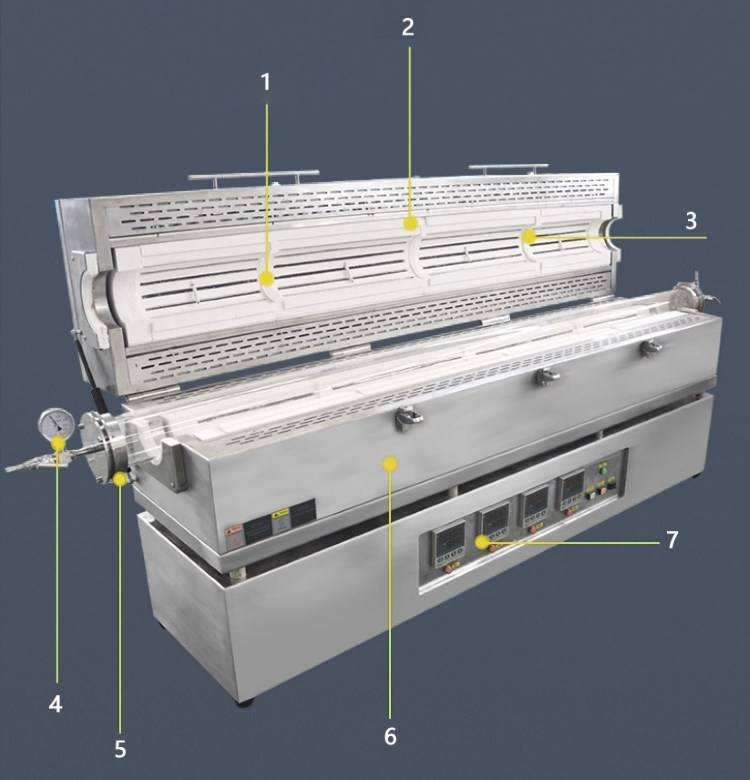

Detailed View & Components
Why Choose KINTEK's Tube Furnace? Features & Benefits for Your Lab
KINTEK tube furnaces are engineered to deliver precision, durability, and user-friendly operation for your most demanding applications. Here’s how our furnaces provide exceptional value:
- Precise Temperature Control & Uniformity:
- Advanced PID programmable temperature control ensures excellent accuracy (±1℃) and stable heating performance with uniform temperature distribution (±5℃).
- The KT-TF14 Pro model features a 5-inch TFT touch screen controller for intuitive program setting, storage of multiple recipes, and easy analysis of historical data.
- Supports remote control and centralized control capabilities for streamlined operations.
- Robust & Durable Construction for Longevity:
- High-purity alumina tube (Al2O3 > 99%) offers exceptional resistance to high temperatures (continuous operation up to 1600°C, short-term spikes up to 1800°C for select tubes), harsh chemicals (acids and alkalis), and thermal shock, ensuring long service life and process integrity.

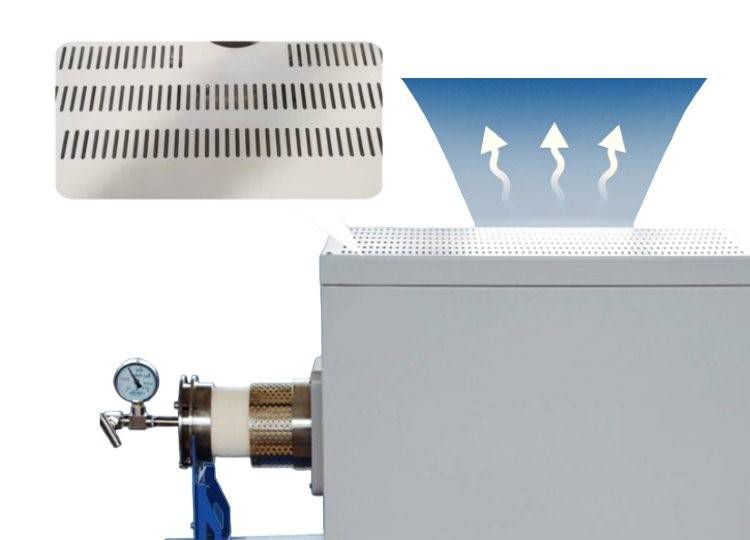

- Double furnace shell design with forced airflow effectively dissipates heat, keeping the furnace surface temperature low for enhanced operator safety and comfort.

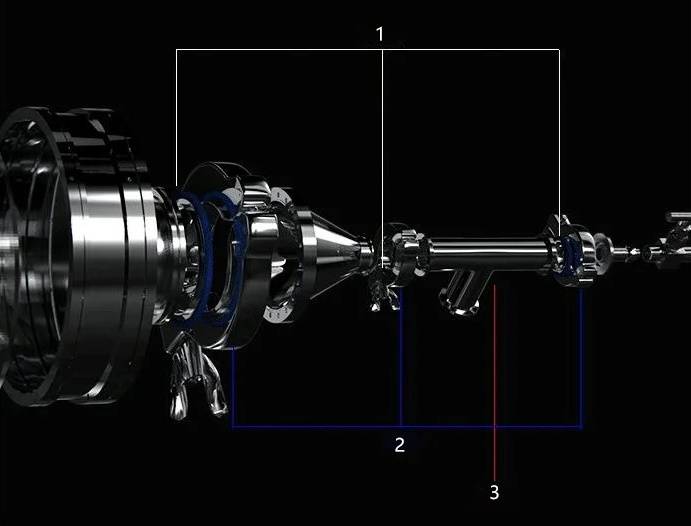

- Stainless steel vacuum flanges with various adapting ports accommodate different vacuum pump setups, providing reliable sealing for high vacuum or controlled atmosphere applications.
- Versatile & Compact Design for Diverse Needs:
- Space-saving compact design is ideal for laboratories with limited bench space.
- Suitable for a wide range of high-temperature processes, including pyrolysis, composition analysis, annealing, sintering, and various heat treatments.
- Available in vertical and horizontal models. We also offer bottom-loading vertical tubes and combination units that allow for both vertical or horizontal placement to suit your experimental setup.
- Options for multiple, independently controlled heating zones for complex temperature profiles.
- Advanced Safety Features for Peace of Mind:
- Integrated over-current protection and over-temperature alarm functions automatically shut off power if anomalies are detected, safeguarding your experiments and equipment.
- Built-in thermocouple break detection system stops heating and triggers an alarm if the thermocouple malfunctions, preventing uncontrolled heating.
- The TF14 Pro model includes a power failure restarting function, which can automatically resume the heating program when power is restored after an outage.
Diverse Applications Across Industries
The KINTEK Tube Furnace with Alumina Tube is an indispensable tool for high-temperature testing, analysis, and material processing across a multitude of sectors. Its ability to provide precisely controlled heating zones and withstand extreme conditions makes it invaluable for:
- Material Science Research: Ideal for synthesizing and characterizing new materials at high temperatures, including ceramics, composites, nanomaterials, and refractory materials.
- Metallurgical Powder Testing and Analysis: Essential for heating and analyzing metallic powders, aiding in alloy development, quality control of metal-based components, and powder metallurgy research.
- Chemical and Glass Industry: Employed in heating and processing glass samples for chemical and physical property analysis, crucial for developing new glass compositions, coatings, and specialty glass products.
- Coal and Energy Research: Used for precise heating and analysis of coal, biomass, and other fuel samples to determine their properties, combustion characteristics, and suitability for various industrial energy applications.
- Semiconductor & Electronics: Facilitates processes like annealing, diffusion, and oxidation in semiconductor manufacturing and electronics research.
- Pharmaceutical and Biotechnology: Utilized for specific high-temperature sterilization processes and material treatment in controlled environments.
Operating Principle
KINTEK tube furnaces utilize high-quality heating elements (such as Cr2Al2Mo2 wire coil or SiC rods) to uniformly heat a process tube, typically made of high-purity alumina, positioned within an exceptionally insulated furnace chamber. A precision PID temperature controller continuously monitors the temperature of the process tube via a thermocouple and dynamically adjusts the power supplied to the heating element. This closed-loop system ensures highly stable and accurate temperature management, critical for processes like heat treating, annealing, sintering, and chemical vapor deposition.
Technical Specifications
| Furnace model | KT-TF14 | KT-TF14 Pro |
|---|---|---|
| Temperature controller | Digital PID controller | Touch screen PID controller |
| Multi program preset | No | Yes |
| Power failure restarting | No | Yes |
| Max. temperature | 1400℃ | |
| Constant work temperature | 1300℃ | |
| Furnace tube material | High grade Al2O3 alumina | |
| Furnace tube diameter (mm) | 30 / 40 / 60 / 80 / 100 (Other sizes customizable) | |
| Heating zone length (mm) | 300 / 450 / 600 / 800 (Other lengths customizable) | |
| Heating zone quantity | 1-10 zones (Customizable) | |
| Vacuum sealing solution | SS 304 flange with O ring | |
| Rated vacuum pressure | 0.001Pa / 10-5 torr | |
| Rated positive pressure | 0.02MPa / 150 torr | |
| Chamber material | High-quality Al2O3 alumina fiber (e.g., Japan-sourced) | |
| Heating element | Cr2Al2Mo2 wire coil (SiC or MoSi2 for higher temperatures by customization) | |
| Heating rate | 0-10℃/min (Adjustable) | |
| Temperature sensor | S-type thermocouple (Other types for different ranges) | |
| Temperature control accuracy | ±1℃ | |
| Temperature uniformity | ±5℃ (in constant temperature zone) | |
| Electric power supply | AC110-240V, 50/60HZ (selectable) | |
| Note: KINTEK offers extensive customization. Alumina tube sizes, heating zone lengths, number of zones, max temperature (up to 2000°C), and other specifications can be tailored to your precise requirements. | ||
Standard Package
| No. | Description | Quantity |
|---|---|---|
| 1 | Tube Furnace Main Body | 1 unit |
| 2 | High Purity Alumina Tube | 1 piece |
| 3 | Vacuum Sealing Flanges with Valves & Gauge Port | 2 sets |
| 4 | Ceramic Tube Thermal Blocks/Plugs | 2 pieces |
| 5 | Tube Block Hook/Extractor | 1 piece |
| 6 | Heat Resistant Gloves | 1 pair |
| 7 | Operation Manual & Warranty Card | 1 set |
Enhance Your Furnace: Optional Setups & Customizations
Tailor your KINTEK Tube Furnace to perfectly match your research or production needs with our extensive range of optional setups and deep customization capabilities:

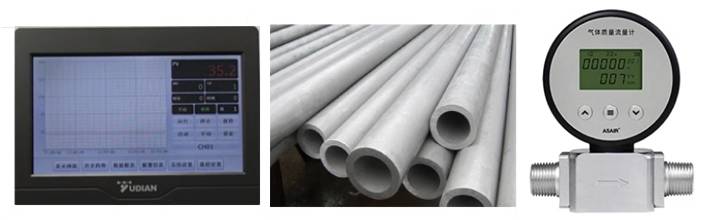

- Advanced Gas Management Systems:
- In-tube gas atmosphere analysis and monitoring (e.g., O2, H2 sensors).
- Precise control of insert gas feeding using digital mass flowmeters or analog float flowmeters.
- Gas mixing stations for creating specific atmospheric compositions.
- Enhanced Control, Monitoring & Data Logging:
- Independent furnace temperature monitoring and recording systems.
- RS485/Ethernet communication port for PC remote control, data logging, and integration into lab networks.
- Upgrade to advanced touch screen temperature controllers with enhanced programming, data logging, and user interface features (standard on Pro models, optional for others).

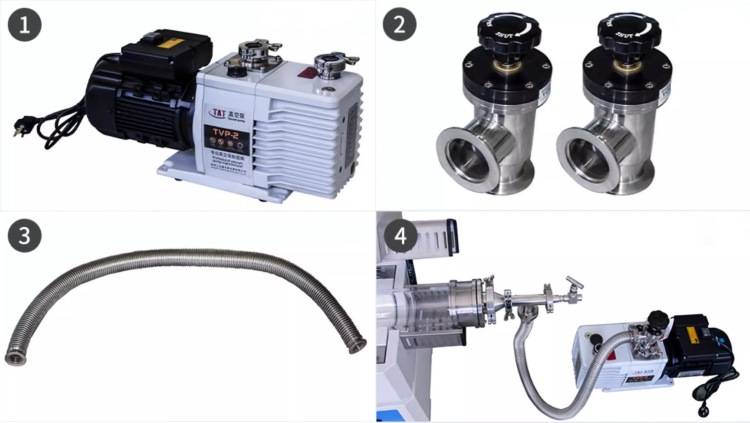

- Vacuum System Integration & Upgrades:
- Complete high vacuum pump station setups, including rotary vane pumps, turbomolecular pumps, and diffusion pumps, tailored to your vacuum level requirements.
- Automated vacuum control systems.
- Mechanical & Structural Customizations:
- Water-cooled end caps for rapid cooling or processes sensitive to heat at tube ends.
- Custom tube diameters, lengths, and materials (e.g., quartz, mullite).
- Specific heating zone configurations (number, length, independent control).
- Furnaces designed for operating temperatures up to 2000°C.
Partner with KINTEK for Your High-Temperature Needs
At KINTEK, we're dedicated to empowering your research and industrial processes with superior high-temperature furnace solutions. Our in-house R&D and manufacturing expertise allow us to offer not only standard excellence but also deep customization to meet your unique experimental requirements.
Have specific needs for your tube furnace? Looking for a tailored solution or expert advice?
We invite you to discuss your project with our specialists. Let us help you configure the ideal tube furnace, from specific dimensions and temperature ranges to advanced control systems and integrated accessories, ensuring optimal performance for your applications.
Ready to elevate your experiments? To discuss your specific requirements, explore customization options, or request a quote, please contact us through our inquiry form. Our team is ready to assist you in finding the perfect high-temperature solution.
