Muffle Furnace

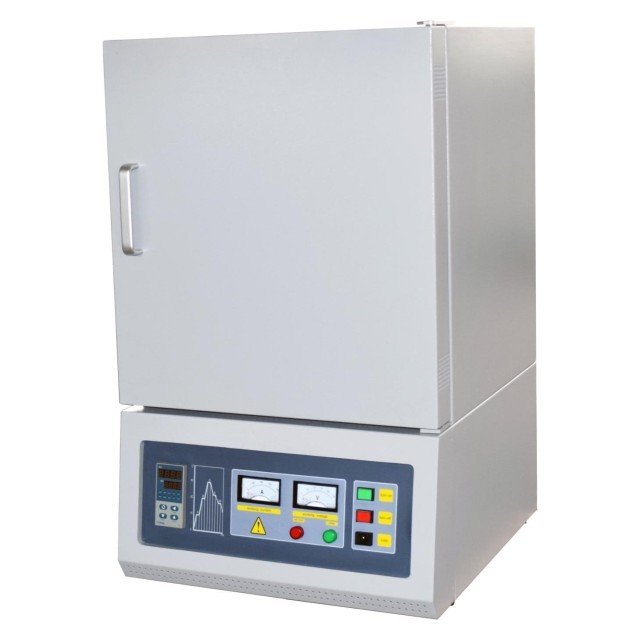

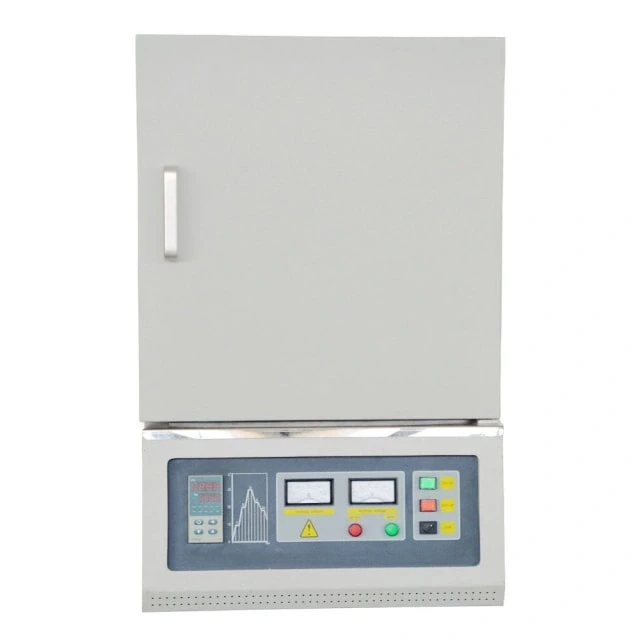

1700℃ High Temperature Muffle Oven Furnace for Laboratory
Item Number : KT-17M
Price varies based on specs and customizations
- Max. temperature
- 1700℃
- Heating element
- Molybdenum Disilicide (MoSi2)
- Temperature control accuracy
- ±1℃
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
KT-17M Muffle Furnace: Precision High-Temperature Performance up to 1700°C
The KT-17M series muffle furnaces are engineered for demanding laboratory and industrial applications requiring precise high-temperature control and excellent uniformity. Discover the detailed features and capabilities below.

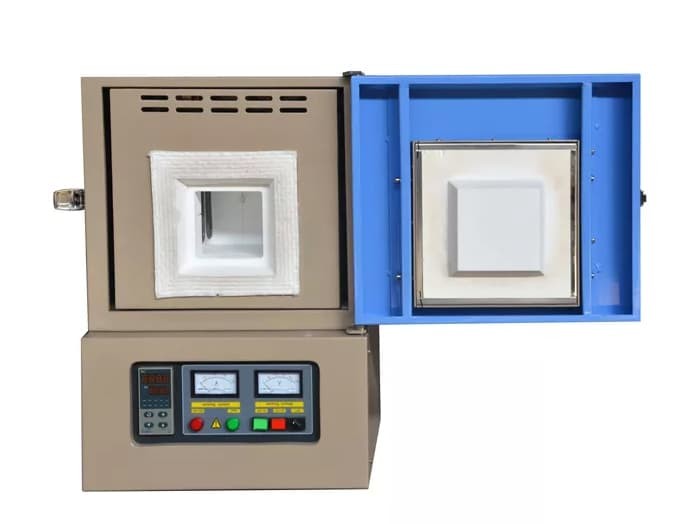

Visual Overview & Key Components
Mainly used in college laboratories, industrial and mining enterprise laboratories, for chemical analysis, physical determination and metal, ceramics, etc. It can be used for debinding, pre-firing and firing of electronic components, powder metallurgy, magnetic materials and other products, and can also be used for heat treatment processes of other materials.
Caption: The bottom-opening high-temperature energy-saving muffle furnace (model dependent feature) adopts a bottom-opening design for convenient material handling. The furnace utilizes a new type of ceramic fiber, ensuring excellent heat preservation (shell remains cool after 1 hour) and can reduce sintering temperatures by up to 500°C, leading to energy savings of up to 70-90%. It offers short sintering times (up to 50% faster), increased structure density, refined grain, and improved material performance, characterized by uniform temperature, stable control, fast heating, energy efficiency, high service temperature, and long service life.
Product Core: KT-17M Series Muffle Furnaces
The KT-17M muffle furnace features insulation materials made from Japan 1800 Al2O3 polycrystalline fiber boards and Silicon Molybdenum (MoSi2) heating elements, enabling a working temperature of up to 1700°C. It incorporates a PID intelligent temperature microprocessor for high temperature control accuracy and excellent temperature uniformity.
The KT-17M Pro muffle furnace enhances user experience with a versatile 7-inch TFT smart touch screen controller. This allows operators to easily set and save multiple heating programs, simplifying operations compared to traditional digital controllers and assisting in the analysis of historical furnace data.
Technical Specifications
| Furnace model | KT-17M / KT-17M Pro | ||
|---|---|---|---|
| Max. temperature | 1700℃ | ||
| Constant work temperature | 1600℃ | ||
| Chamber material | Japan alumina fiber | ||
| Heating element | Molybdenum Disilicide (MoSi2) | ||
| Heating rate | 0-20℃/min | ||
| Temperature sensor | B type thermal couple | ||
| Temperature controller | Digital PID controller (KT-17M) / 7-inch Touch screen PID controller (KT-17M Pro) | ||
| Temperature control accuracy | ±1℃ | ||
| Temperature uniformity | ±5℃ | ||
| Electric power supply | AC110-220V, 50/60HZ | ||
| Standard Chamber Sizes Stocks | |||
| Chamber size (mm) | Effective volume (L) | Chamber size (mm) | Effective volume (L) |
| 100x100x100 | 1 | 300x300x400 | 36 |
| 120x120x130 | 2 | 400x400x400 | 64 |
| 150x150x200 | 4.5 | 500x500x500 | 125 |
| 200x200x200 | 8 | 600x600x600 | 216 |
| 200x200x300 | 12 | 800x800x800 | 512 |
| Customer design sizes and volume is accepted. | |||
Need a custom chamber size or specific modification? Contact us to discuss your unique experimental requirements.
Why Choose KINTEK and the KT-17M Muffle Furnace?
Leveraging exceptional R&D and in-house manufacturing, KINTEK provides diverse laboratories with advanced high-temperature furnace solutions. Our product line, including Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems, is complemented by our strong deep customization capability to precisely meet unique experimental requirements. Discover how our expertise can benefit your work by contacting us today!
Key Benefits & Advanced Features of the KT-17M Series:
- High-Temperature Capabilities: Reaches up to 1700°C, crucial for annealing, sintering, and other demanding high-heat applications, ensuring effective and efficient material processing.
- Precision Temperature Control: PID programmable temperature control (with optional 7-inch TFT touch screen on Pro models) ensures excellent control accuracy (±1℃) and stable heating performance. Supports remote and centralized control.
- Superior Energy Efficiency: Features high-quality Japanese 1800 Al2O3 polycrystalline fiber insulation, minimizing heat loss and significantly saving energy.
- Durable and Optimized Design:
- Compact design with a small footprint, offering versatile functionality.
- Double furnace shell design with forced air flow maintains a low surface temperature for operator comfort and safety.
- Professional heating element configuration optimizes heat radiation properties for extended service life.
- User-Friendly Operation (KT-17M Pro): The 7-inch TFT touch screen controller offers intuitive program setting, storage for different heating recipes, and historical data analysis.
- Contamination-Free Environment: The muffle design isolates materials from heating elements and external contaminants, vital for maintaining material purity and integrity.
- Robust Safety Interlocks: Includes power shut-off when the furnace door is open, over-temperature protection, and sensor break detection for secure operation.
Versatile Applications
Muffle furnaces are versatile high-temperature heating devices used in various industrial and laboratory settings. They are designed to provide precise temperature control and isolation from combustion contaminants, making them ideal for a range of applications including:
- Ashing Samples: Crucial for determining residue content in organic and inorganic materials.
- Heat Treatment: Essential for processes like annealing, hardening, and tempering of metals and alloys.
- Materials Research: Used to study material behavior at high temperatures and synthesize new materials.
- Melting Glass: Ideal for melting and fusing glass for technical ceramics and enamel coatings.
- Soldering and Brazing: Provides necessary high temperatures for strong and reliable joints.
- Technical Ceramics: Used in the production and testing of technical ceramics requiring precise temperature control.
- Enamel Coatings: Essential for creating durable and aesthetically pleasing enamel coatings.
Operating Principle
Muffle furnaces operate on the principle of indirect heating. Heating elements located outside a separate muffle chamber heat a ceramic muffle. This muffle, in turn, radiates heat to the contents inside, ensuring precise temperature control and preventing contamination from direct heat sources or combustion byproducts.
Enhanced Safety Features
- Over-Current and Over-Temperature Protection: Kindle Tech furnaces feature over-current protection and over-temperature alarms, automatically shutting off power if limits are exceeded.
- Thermal Couple Failure Detection: The furnace includes a built-in thermocouple detection function. If a thermocouple breaks or fails, heating will stop, and an alarm will activate.
- Power Failure Restart (KT-17M Pro): The KT-17M Pro model supports a power failure restarting function, allowing the furnace to resume its heating program automatically once power is restored after an outage.
Standard Package Contents
| No. | Description | Quantity |
|---|---|---|
| 1 | Furnace | 1 |
| 2 | Thermal block | 1 |
| 3 | Crucible tong | 1 |
| 4 | Heat resistant glove | 1 |
| 5 | Operation manual | 1 |
Customize Your Furnace: Optional Setups
Enhance your KT-17M muffle furnace to perfectly match your laboratory's needs with these optional setups:
- Independent furnace temperature monitoring and recording
- RS 485 communication port for PC remote control and data exporting
- Ports for inert gas insertion, exhaust output, and observation window
- Upgrade to the touch screen temperature controller with versatile operator-friendly functions (standard on KT-17M Pro)
Your research is unique, and your equipment should support your specific goals. KINTEK's strong deep customization capability allows us to precisely meet your unique experimental requirements. Please share your needs via our Contact Form, and our experts will work with you to design the ideal high-temperature furnace solution.
