Vacuum Induction Melting Furnace

Vacuum Furnace

Vacuum Induction Melting Furnace

Item Number : KT-VI

Price varies based on specs and customizations

Max temperature
2000 ℃
Crucible effective capacity (Steel)
20kgs
Max melting vacuum
7×10-3Pa
ISO & CE icon

Shipping:

Contact us to get shipping details Enjoy On-time Dispatch Guarantee.

View Specs

Live Chat View Specs

Why Choose Us

Easy ordering process, quality products, and dedicated support for your business success.

Easy Process Quality Assured Dedicated Support
Play Video: Vacuum Induction Melting Furnace

Discover KINTEK's Advanced Vacuum Induction Melting Furnace

KINTEK's Vacuum Induction Melting Furnace is engineered for superior performance in melting metals and alloys under precisely controlled vacuum or inert gas conditions. Leveraging our exceptional R&D and in-house manufacturing, KINTEK provides diverse laboratories and industrial clients with advanced high-temperature furnace solutions. This specialized furnace, capable of reaching temperatures up to 2000℃, is crucial for applications demanding high purity, such as casting aircraft components and refining high-purity metals.

Our comprehensive product line extends beyond this model to include Muffle Furnaces, Tube Furnaces, Rotary Furnaces, other specialized Vacuum & Atmosphere Furnaces, and sophisticated CVD/PECVD/MPCVD Systems. What truly sets KINTEK apart is our strong deep customization capability, allowing us to precisely tailor solutions to meet your unique experimental or production requirements.

Explore the detailed features and specifications below. If you're ready to enhance your material processing capabilities or have specific needs, please contact us to discuss your project.

Detail & Parts

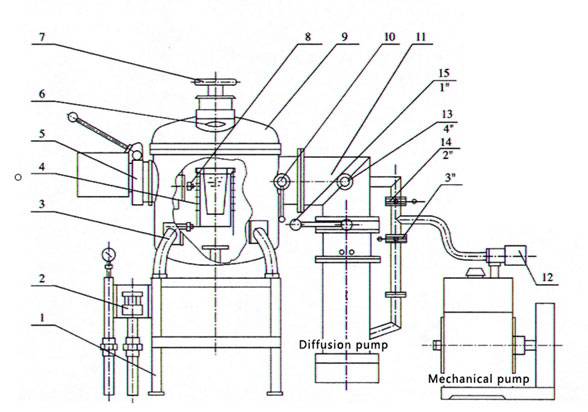

Furnace Structure (1. Base 2. Water cooling system 3. Furnace stack 4. Inductor 5.Sealing rotary bearing 6.Observation window 7.Feeder 8.Electrode 9. stove lids 10.Temperature Measuring 11.Vacuum system 12.Inflatable vacuum solenoid valve 13.vent valve 14.Φ50 Vacuum valve 15.Φ300)

Furnace Structure(1. Base 2. Water cooling system 3. Furnace stack 4. Inductor 5.Sealing rotary bearing 6.Observation window 7.Feeder 8.Electrode 9. stove lids 10.Temperature Measuring 11.Vacuum system 12.Inflatable vacuum solenoid valve 13.vent valve 14.Φ50 Vacuum valve 15.Φ300)

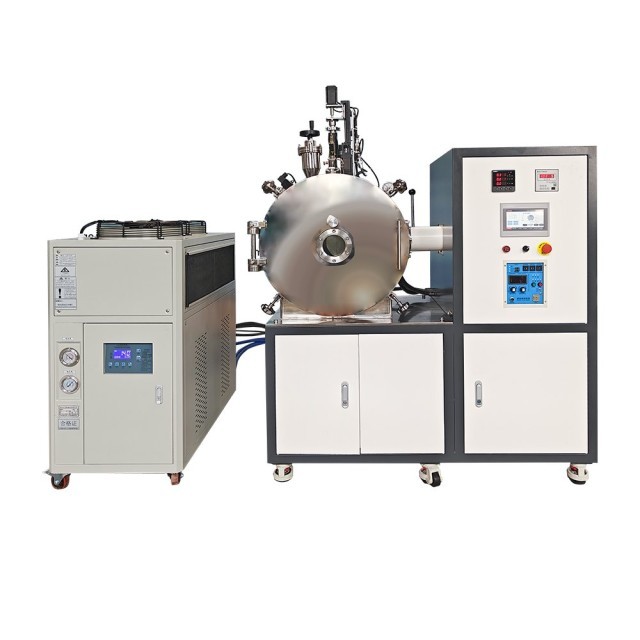

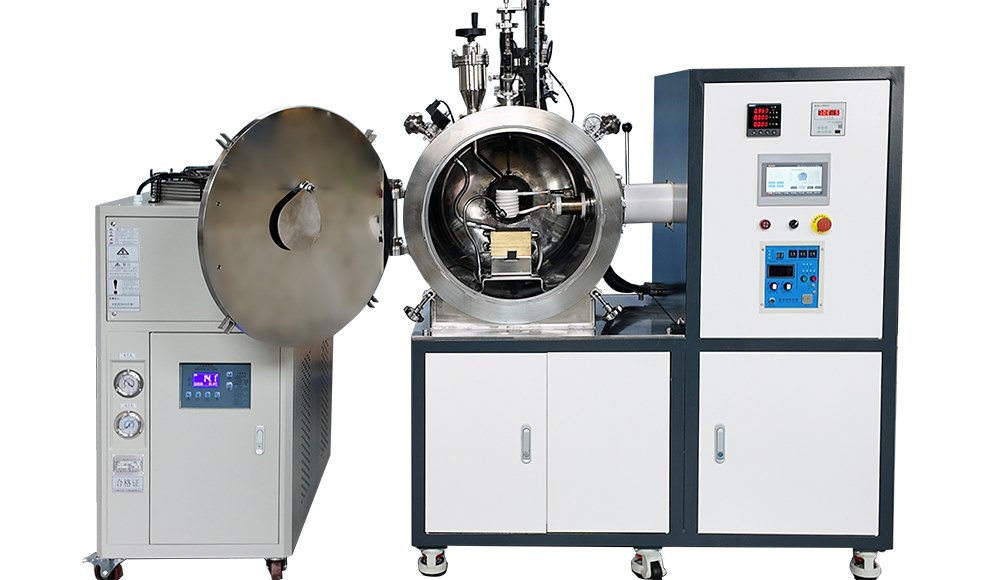

Vacuum induction melting furnace details 1

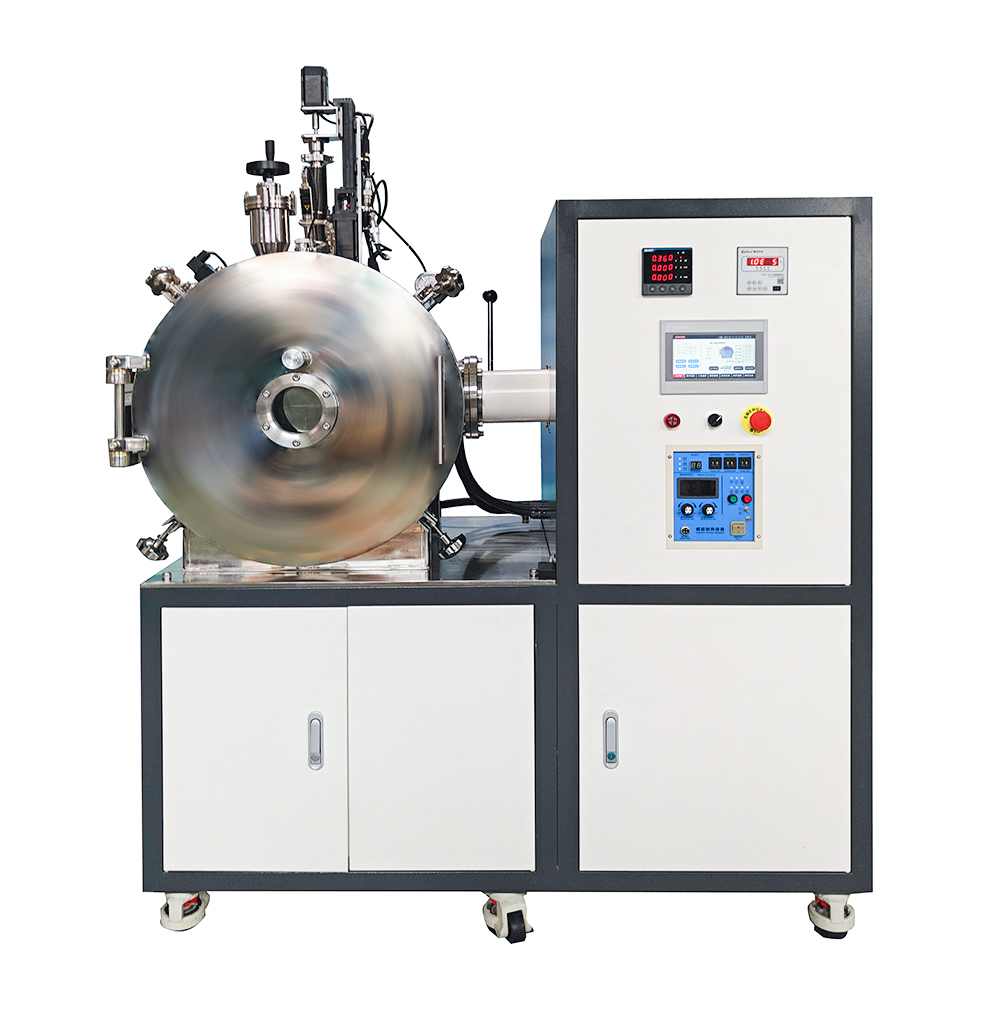

Vacuum induction melting furnace details 2

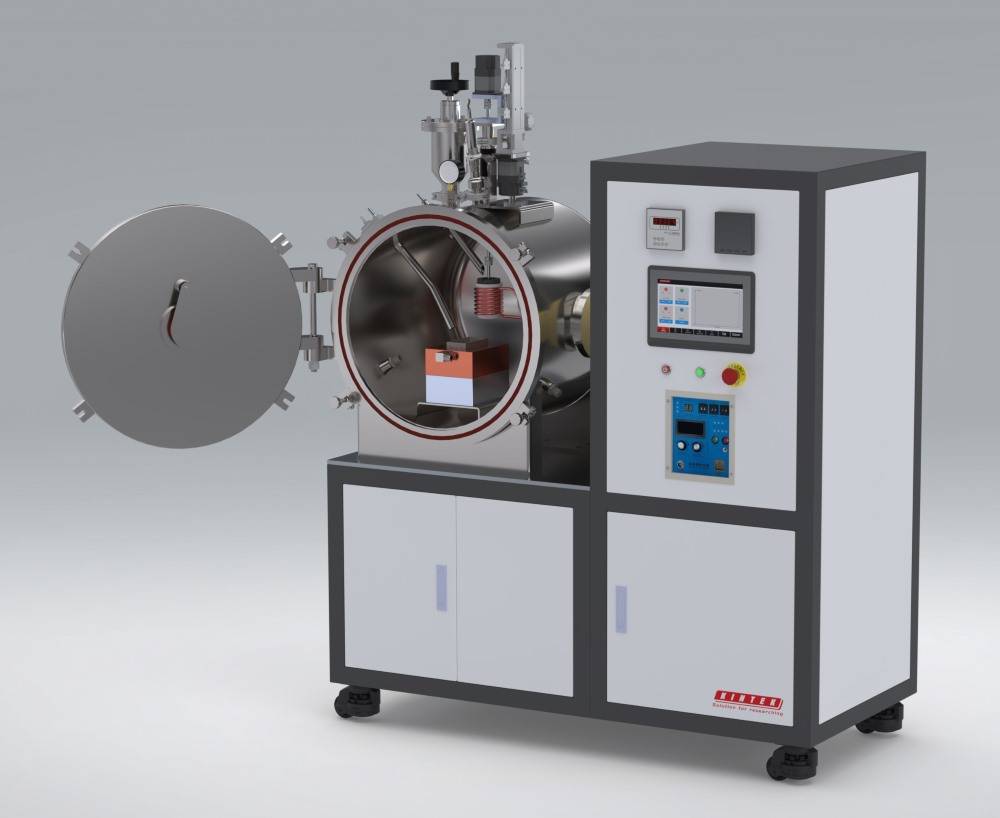

Vacuum induction melting furnace details

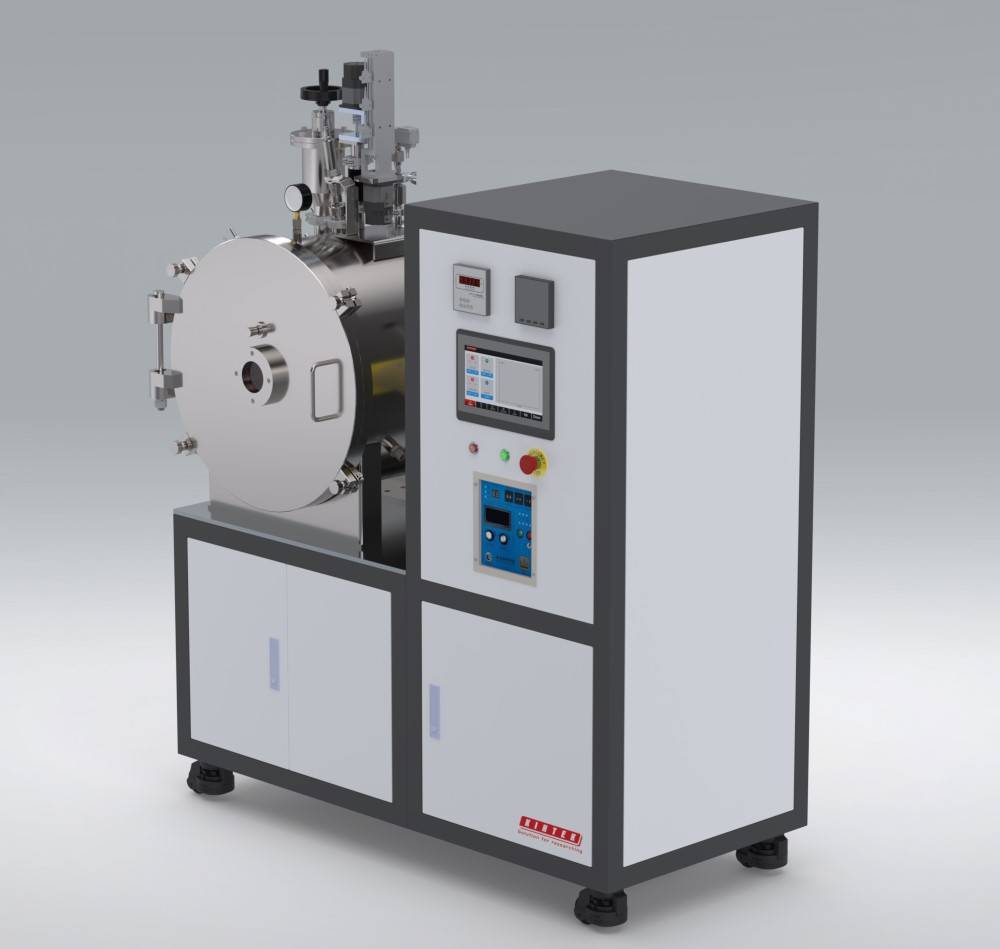

Vacuum induction melting furnace details 2

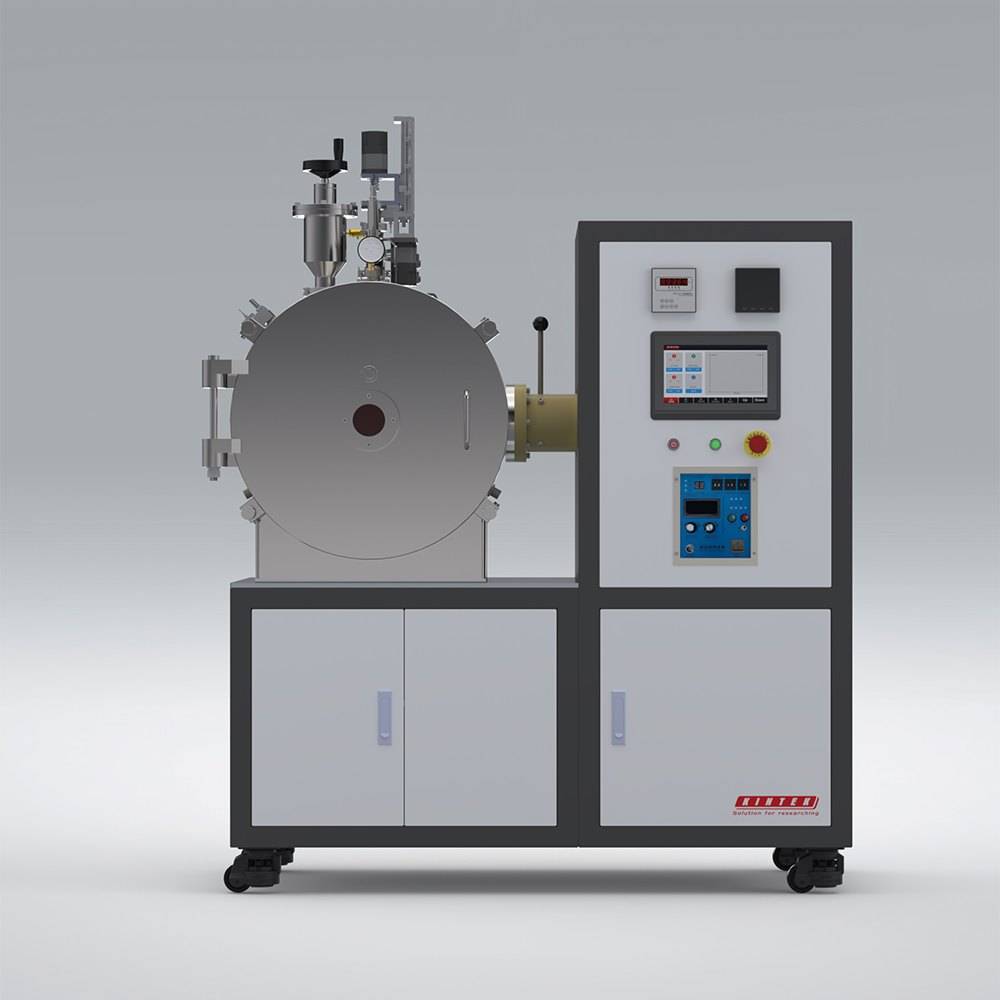

Vacuum induction melting furnace details 3

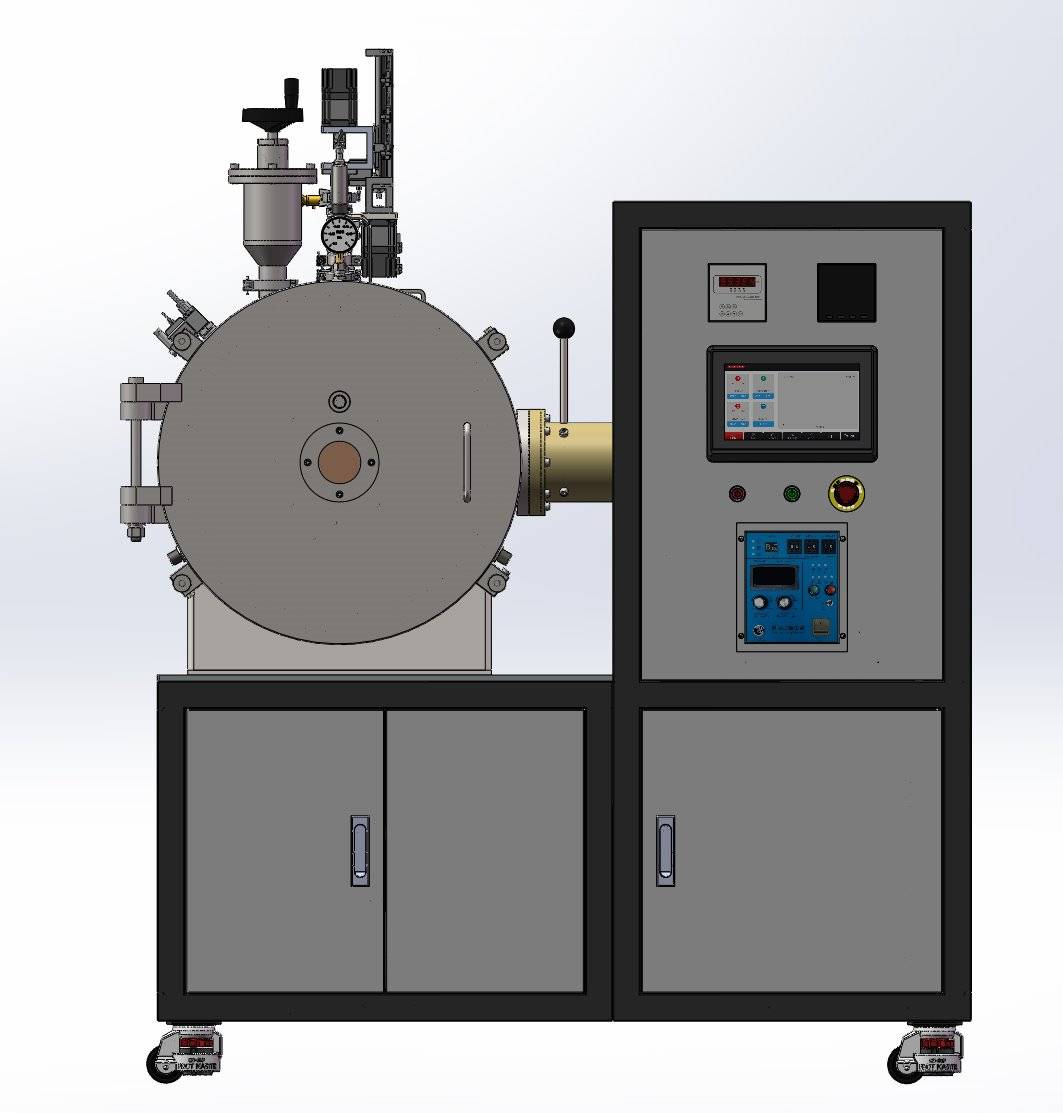

Vacuum induction melting furnace details 4

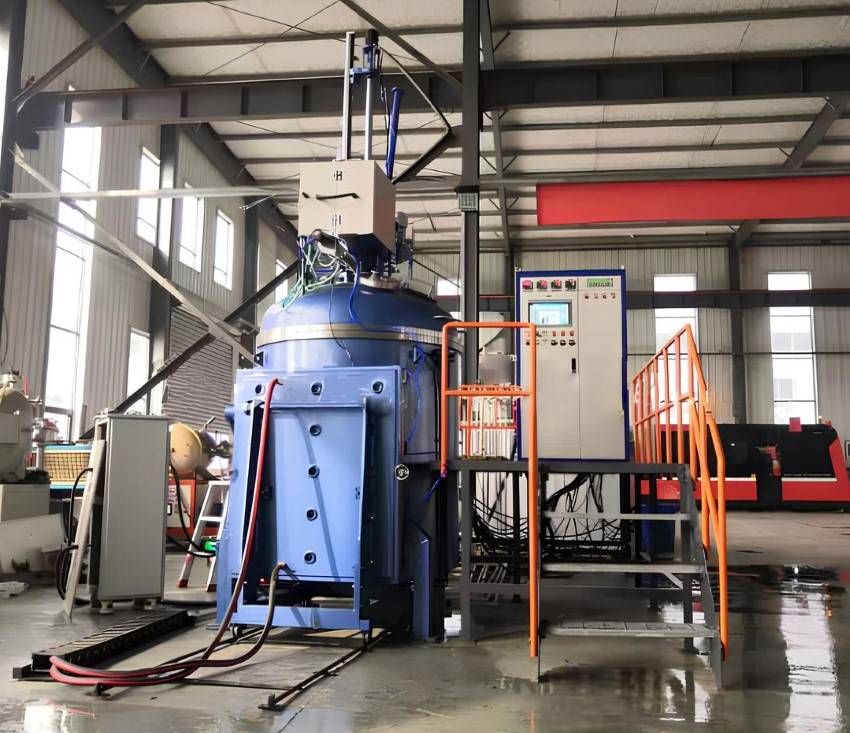

Vacuum induction melting furnace details

Product Overview and Key Features

The Vacuum Induction Melting Furnace is specialized equipment designed for melting and casting metals under vacuum or inert gas conditions. It utilizes a water-cooled induction coil and refractory lining, crucial for processes requiring high purity and precise temperature control, operating at temperatures up to 2000℃. This furnace is particularly beneficial for melting valuable active metals and alloys, preventing reactions with non-metallic inclusions, and removing harmful dissolved gases and pollutants from the molten metals. Key features include:

  • Air-Tight Water-Cooled Steel Jacket: The furnace is equipped with an air-tight, water-cooled steel jacket that can withstand the required vacuum for processing, ensuring a stable and controlled environment for melting.
  • Induction Heating System: Utilizing medium frequency induction heating, the furnace can reach temperatures up to 2000℃, making it suitable for melting a wide range of metals and alloys, including nickel, special steel, and high-temperature alloys.
  • Crucible and Refractory Lining: The metal is melted in a crucible housed in a water-cooled induction coil, and the furnace is lined with suitable refractories to enhance durability and performance.
  • Vacuum and Inert Gas Casting: The molten metal can be poured or cast under either vacuum or inert gas environments, providing flexibility in processing and ensuring the purity of the final product.
  • Advanced Features: Depending on the size and model, the furnace may include tilt and pour mechanisms, casting chambers, sampling ports, and mould handling facilities with vacuum interlock systems, enhancing automation and precision in the melting process.

These features collectively ensure high-quality melting and casting of metals, making the Vacuum Induction Melting Furnace an indispensable tool for industries requiring precision and purity in their metalworking processes.

Applications

The Vacuum Induction Melting Furnace is a specialized equipment used for melting and casting metals under vacuum conditions, primarily utilizing medium-frequency induction heating. This technology is crucial in various high-tech industries due to its ability to produce high-purity metals and alloys with precise control over the melting environment. Key applications include:

  • Aerospace components casting
  • Manufacturing of complex valves for extreme conditions
  • Refining high-purity metals and alloys
  • Production of electrodes for remelting
  • Nickel and special steel production
  • Precision alloy fabrication
  • Active metal processing
  • High-temperature alloy development
  • Magnet material creation

Operating Principle

The vacuum induction melting furnace operates on the principle of medium frequency induction heating, where a high vacuum environment is created to melt metals. The furnace utilizes an induction coil to generate an alternating electromagnetic field, which induces eddy currents within the metal, causing it to heat up and melt. The vacuum environment prevents oxidation and contamination of the molten metal, allowing for the production of high-purity alloys. This process is particularly suitable for melting high-temperature alloys, active metals, and materials requiring precise composition control.

Key System Components & Design Features

Our Vacuum Induction Melting Furnace incorporates thoughtfully designed components to ensure reliability, efficiency, and ease of use:

  • Furnace Body: The furnace body and furnace cover have a water-cooled interlayer to ensure the furnace surface temperature will not be too high. An optional side door on the furnace body can be added according to user requirements. The furnace cover is equipped with an alloy feeder and observation window, which allows for the addition of different alloy raw materials during smelting and observation of the working conditions in the furnace.
  • Inductor: The furnace inductor is coiled into a spiral coil with thick-wall copper tubes. The outer layer of the induction coil is covered with a ceramic coating, which increases the firmness and extends the service life of the coil while ensuring its insulation.
  • Furnace Tilting Mechanism: Manual, electric, and hydraulic furnace tilting options are available. The furnace tilting angle is designed to tilt forward 105 degrees and backward 10 degrees, ensuring no residual liquid. The furnace tilting speed can be adjusted continuously.
  • Vacuum System: Consists of a mechanical pump, Roots pump, diffusion pump or booster diffusion pump, vacuum valves, damping elastic sleeves, and vacuum pipelines. The configuration of the vacuum system is tailored to the physical and chemical properties and process of the smelting materials.
  • Medium Frequency Power Supply: Utilizes an IGBT medium frequency power unit, enabling maximum temperatures up to 2000℃.
  • Electrical Control System: Features a Touch screen controller with PLC, vacuum measuring instrument, temperature measuring instrument, and operation buttons, indicator lights, and other components. It enables the operation and control of the pneumatic system, vacuum system, furnace cover lifting, furnace tilting, etc.

Key Benefits & Process Advantages

Utilizing the KINTEK Vacuum Induction Melting Furnace offers significant advantages for your material processing:

  • Effectively control and adjust alloy composition to produce high-performance metal or alloy materials.
  • Capable of inhibiting the formation of non-metallic oxide inclusions produced in the metal solution and casting high-quality castings.
  • The unique electromagnetic stirring feature can effectively avoid element segregation during alloy smelting.
  • According to the different melting points of elements, some harmful volatile trace elements, such as antimony, tellurium, selenium, bismuth, etc., can be purposely removed.

Technical specifications

Crucible effective volume 4L
Crucible effective capacity (Steel) 20kgs
Max temperature 2000 ℃
Max melting vacuum
  • 7×10-3Pa
  •  Vacuum time: open diffusion pump when preheating is complete, then up to 7×10-3Pa in 30 minutes.
Rated power 60KW
Rated voltage 375V
Power frequency 50HZ
Rated frequency 1500~2500HZ
Heat element Induction copper coil
Vacuum system
  • 70L/s Double stage Rotary vane mechanical pump
  • Dia.300mm diffusion pump, Max. pumping speed: 5000L/s
  • Dia.300mm diffusion pump clod trap, effective cooling cycle for pump oil
  • Dia.300mm diffusion pump flapper valve + Dia.80mm former pump flapper valve
  • Stainless pipe + stainless bellows



Model Capacity Temperature Vacuum Rated power
KT-VI5 5kg 1700 ℃ 6x10-3Pa 40Kw
KT-VI10 10kg 40Kw
KT-VI25 25kg 75Kw
KT-VI50 50kg 100Kw
KT-VI100 100kg 160Kw
KT-VI200 200kg 200Kw
KT-VI500 500kg 500Kw
Semi-continuously melting production can be customized

Partner with KINTEK for Your High-Temperature Furnace Needs

KINTEK's Vacuum Induction Melting Furnaces offer unparalleled precision and purity for your demanding applications. With our expertise in high-temperature technology and commitment to customization, we can provide the perfect solution for your laboratory or production needs.

Don't see the exact specifications you need? Our team excels at deep customization. Contact us today to discuss your unique requirements, request a quote, or learn more about how our furnaces can benefit your work.

Trusted by Industry Leaders

Our Cooperated Clients

FAQ

What Are The Main Applications Of A Vacuum Furnace?

Vacuum furnaces are primarily used for vacuum quenching (tempering, annealing) to achieve desired material properties, vacuum brazing for welding below the base metal's melting point, vacuum sintering to bond metal powder grains into parts, and vacuum plus magnetism for metal and magnetic material treatment. They are also widely used in semiconductor devices, optical thin films, functional coatings, nanomaterials, and other fields, providing important technical support for material preparation and functional improvement.

What Is A Vacuum Induction Furnace?

A vacuum induction furnace is a specialized heating device that melts metals in a vacuum environment using induction heating technology. It is designed to remove impurities and improve the quality of the melted metals by preventing oxidation and contamination.

What Is A Dental Furnace Used For?

A dental furnace is primarily used in dental laboratories for sintering dental ceramics, such as zirconia, to create high-quality dental restorations like crowns, bridges, and implants. It ensures precise temperature control and consistent results for durable and aesthetically pleasing prosthetics.

What Is An Atmosphere Furnace Used For?

Atmosphere furnaces are widely used in material processing, metal processing, semiconductor manufacturing, solar cell production, optical materials, ceramics and glass industry, electronic material manufacturing, and research and development of new energy materials.

What Are The Main Applications Of A Muffle Furnace?

Muffle furnaces are widely used in various industries including metallurgy for heat treatment processes like annealing and hardening metals; ceramics and glass for sintering and melting processes; biomedical for material analysis and drug testing; pharmaceuticals for ashing and quality control of samples; and environmental testing for analyzing ash content in materials and conducting water quality assessment. In the glass industry, they are used for melting glass during recycling, molding glass into shapes, toughening glass products, and analyzing raw material characteristics.

What Are The Key Features Of A Vacuum Furnace?

A vacuum furnace heats materials, mostly metals, at extremely high temperatures with low pollution and high consistency. Materials can be loaded vertically or horizontally. Vacuum furnaces can have batch or continuous designs, depending on cooling medium, load size, temperature, and pressure. They come in hot wall and cold wall designs, with cold wall furnaces offering higher operating temperature ranges, faster heating and cooling, and greater temperature uniformity.

What Are The Main Applications Of Vacuum Induction Furnaces?

Vacuum induction furnaces are widely used in industries such as aerospace, metallurgy, and materials research for processes like melting, sintering, heat treatment, and brazing of metals and alloys. They are particularly useful for producing high-purity metals and advanced materials.

What Are The Key Features Of A Dental Furnace?

Key features of a dental furnace include precise temperature range and control, programmability, vacuum technology for contamination-free processing, efficient cooling systems, and user-friendly interfaces. Safety features like automatic shutdown, emergency stop buttons, and overheating protection are also essential.

What Are The Key Features Of An Atmosphere Furnace?

The key features of an atmosphere box furnace include its ability to maintain a specific gas environment, such as inert gases (e.g., nitrogen, argon), reducing gases (e.g., hydrogen), or vacuum conditions, to prevent oxidation, contamination, or unwanted chemical reactions during heating. The furnace typically consists of a high-temperature-resistant box chamber, heating elements, and a gas supply system. Advanced models may include programmable temperature controllers, uniform heating zones, and safety interlocks to ensure operational reliability.

What Are The Key Features Of A Muffle Furnace?

Key features of a muffle furnace include a high temperature range (typically from 800°C to 1800°C), uniform heating for accurate results, isolated heating elements to prevent chemical reactions, and precise digital temperature control. Additional features often include temperature sensing through J-type sensors, PID control for temperature regulation, high-grade insulation materials like imported glass wool blanket for maximum thermal efficiency, SSR-based heaters, and an auto-tuning advanced PID controller.

How Does A Vacuum Furnace Work?

The working principle of a vacuum furnace involves removing air and gases from the chamber to create a vacuum, which prevents oxidation and contamination. Heating elements generate heat, and a temperature control system regulates the heating process to ensure precise and consistent results. The vacuum system pumps the furnace chamber to create a vacuum, and the heating element then heats the chamber while the temperature control system regulates heating speed and holding time, allowing materials to be heated under vacuum conditions.

How Does A Vacuum Induction Furnace Work?

The furnace operates by creating a vacuum in the chamber to remove air and gases, preventing oxidation. Induction heating is then used to melt the metals. This combination of vacuum and induction heating ensures a clean, controlled environment for high-quality metal processing.

How Does A Dental Furnace Work?

A dental furnace works by applying controlled high temperatures to dental ceramics in a vacuum or controlled atmosphere environment. This process, known as sintering, bonds ceramic particles together to form strong, dense restorations. The furnace's advanced controls ensure uniform heating and cooling for consistent results.

How Does An Atmosphere Furnace Work?

A tube furnace generates heat through a heat source and transfers this heat to the heated workpiece or medium via the furnace tube. This process provides stable and uniform heating suitable for various industrial applications. The principle of sintering involves heating materials to high temperatures below their melting points, causing particles to bond and form a solid structure. Heat and sometimes pressure are applied to compact and densify materials, enhancing their mechanical and physical properties.

How Does A Muffle Furnace Work?

A muffle furnace operates by using heating elements, such as silicon carbide or nichrome wires, which line the walls of the chamber. When electrical current flows through these elements, they generate heat, which is transferred through the chamber lining into the insulated space where samples are placed. The insulated chamber minimizes heat loss and maintains a steady, even temperature distribution, allowing precise control over the heating process without contaminating the sample.

What Are The Advantages Of Using A Vacuum Furnace?

The benefits of a vacuum furnace include precise temperature control within a small area, low contamination of the product by carbon, oxygen, and other gases, quick cooling (quenching) of the product, and computer-controlled processes to ensure metallurgical repeatability. Additionally, vacuum furnaces provide a highly pure processing environment, fast processing speed due to no need for atmosphere adjustment, and strong controllability of the processing process as it is not affected by the atmosphere.

What Are The Advantages Of Using A Vacuum Induction Furnace?

Key advantages include: 1. Contamination-free processing due to the absence of oxygen and reactive gases. 2. Precise temperature control for consistent results. 3. Versatility in handling various materials and processes. 4. High efficiency with minimal heat loss. 5. Improved product quality by removing impurities.

What Are The Advantages Of Using A Dental Furnace?

The advantages of using a dental furnace include precise temperature and heating control, consistent and predictable results, time and cost savings by reducing the need for adjustments or remakes, and the ability to create various types of dental restorations. These features ensure high-quality, durable, and aesthetically pleasing dental prosthetics.

What Are The Advantages Of Using An Atmosphere Furnace?

The advantages of an atmosphere furnace include strong environmental control capability by adjusting atmosphere components, lower cost compared to vacuum furnaces, and a wide range of applications suitable for various materials like metals and ceramics. Additionally, atmosphere tube furnaces offer precise temperature control, flexible atmosphere control, high heating efficiency, energy conservation and environmental protection, safe and reliable operation, wide applicability, and reasonable structural design.

What Are The Advantages Of Using A Muffle Furnace?

The advantages of using a muffle furnace include high precision and control with accurate temperature management, reduced contamination due to an isolated chamber, versatile applications across scientific and industrial tasks, energy efficiency from effective insulation, and enhanced safety due to reduced external heat exposure. They are also cost-effective due to their long service life and energy efficiency, offer high temperature resistance, ensure temperature uniformity with even heat distribution, and minimize heat loss compared to conventional heating methods.

What Types Of Materials Can Be Processed In A Vacuum Furnace?

Vacuum furnaces are primarily used for processing metals, including sintering, annealing, and brazing. They are also suitable for ceramics, composites, and other advanced materials, especially in applications requiring high purity and precise temperature control, such as semiconductor devices, optical thin films, and nanomaterials.

What Types Of Vacuum Induction Furnaces Are Available?

Vacuum induction furnaces come in various designs including batch or continuous types, and hot wall or cold wall configurations. They can also be customized based on cooling medium, load size, temperature requirements, and pressure conditions to suit specific industrial or research needs.

What Safety Features Should A Dental Furnace Have?

A dental furnace should include safety features such as over-temperature protection, automatic shut-off systems, emergency stop buttons, and overheating protection. These features ensure the safety of users and prevent damage to the equipment during operation.

What Types Of Gases Can Be Used In An Atmosphere Furnace?

An atmosphere furnace can maintain specific gas environments such as inert gases (e.g., nitrogen, argon), reducing gases (e.g., hydrogen), or vacuum conditions to prevent oxidation, contamination, or unwanted chemical reactions during heating.

What Types Of Muffle Furnaces Are Available?

Muffle furnaces come in various types based on their maximum temperature capabilities and design features. Examples include high-temperature models (up to 1800°C) for sintering and annealing, models with bottom lifting mechanisms for easy loading, and those with specific features like PID control and energy-efficient designs. They can also vary in size and customization options to suit different laboratory and industrial needs.

What Is The Difference Between Hot Wall And Cold Wall Vacuum Furnaces?

Hot wall vacuum furnaces have the heating elements and insulation inside the vacuum chamber, while cold wall furnaces have these components outside the chamber. Cold wall furnaces offer higher operating temperature ranges, faster heating and cooling, and greater temperature uniformity compared to hot wall designs.

Why Is Temperature Control Important In Vacuum Induction Furnaces?

Precise temperature control is crucial to ensure uniform heating, prevent material degradation, and achieve consistent results in processes like melting, sintering, or heat treatment. Advanced control systems in these furnaces maintain accurate temperatures throughout the process.

What Types Of Dental Furnaces Are Available?

Dental furnaces come in various types, including vacuum porcelain sintering furnaces, zirconia sintering furnaces, and vacuum press furnaces. Some models offer rapid sintering capabilities, while others provide high-pressure or multi-functional processing for different dental ceramic materials.

What Safety Features Are Available In Advanced Atmosphere Furnaces?

Advanced atmosphere furnaces may include programmable temperature controllers, uniform heating zones, and safety interlocks to ensure operational reliability. A program-controlled atmosphere furnace includes a protection system that monitors critical parameters such as furnace temperature and oxygen content. In case of any abnormalities, the system can automatically shut down or trigger an alarm to protect both the furnace and the samples inside.

Can Vacuum Furnaces Be Customized For Specific Applications?

Yes, vacuum furnaces can be customized based on cooling medium, load size, temperature, and pressure requirements. They can be designed as batch or continuous systems and can be tailored for specific applications such as sintering, brazing, or heat treatment, with options for vertical or horizontal loading.

What Materials Can Be Processed In A Vacuum Induction Furnace?

These furnaces can process a wide range of materials including metals, alloys, ceramics, and composites. They are particularly effective for materials that require high purity or are sensitive to oxidation, such as titanium, nickel-based alloys, and rare earth metals.

How Does The Vacuum Environment Benefit Material Processing?

The vacuum environment eliminates oxygen and other reactive gases, preventing oxidation and contamination of materials. It also allows for better control of the processing atmosphere, reduces heat loss, and enables higher temperature operations without material degradation.
