Vacuum Hot Press Furnace

Vacuum Hot Press Furnace Machine for Lamination and Heating

Name: Vacuum Hot Press Furnace Machine for Lamination and Heating
Brand: Kintek Furnace
SKU: KT-VLP
Rating: 4.82 (19 reviews)

Item Number : KT-VLP

Price varies based on specs and customizations

Heating temperature: <500℃
Working pressure: 30T during heating/40T in the cold state
Heating plate size: 100x100mm~400x400mm

Get Quote Request Your Custom Quote 👋

Send Email Request Quote

WhatsApp Get Quote

The KINTEK Vacuum Lamination Press: Precision, Control, and Versatility

Achieve superior results in your material processing with the KINTEK Vacuum Lamination Press. This advanced system is meticulously engineered for applications demanding precision, a controlled environment, and robust performance.

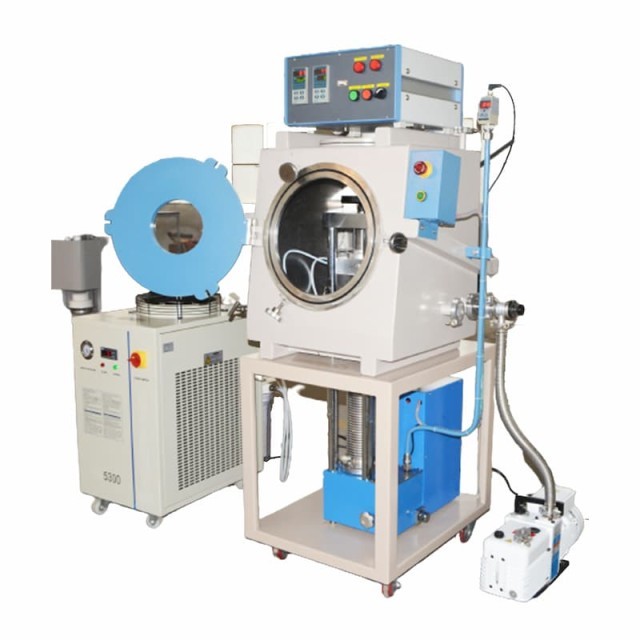

500°C Vacuum Lamination Press - Front View

500°C Vacuum Lamination Press - Angled View

Vacuum Lamination Press details - CE Certified — Our CE certified electric vacuum lamination heat press is designed for wafer bonding or film converting up to 100mm x 100mm. It achieves a maximum working temperature of 500°C and a maximum pressure of 20 metric tons.

The KINTEK Vacuum Lamination Press is a multi-functional machine ingeniously combining a hydraulic press, electric heating, and a vacuum glove box. Electric heating plates are embedded within the hydraulic press plate, complemented by thermal insulation and circulating water cooling to prevent overheating of the press structure. The pressing plates are housed inside the vacuum glove box, creating an optimal vacuum and clean environment essential for processing oxygen-sensitive materials and preventing contamination.

This press utilizes vacuum to remove air from between material layers for a strong bond, and heat to soften materials for optimal adhesion, making it ideal for wafer bonding, thin-film transformations, and LCP lamination.

Why KINTEK? Your Partner in Advanced Material Processing

Leveraging exceptional R&D and in-house manufacturing, KINTEK provides diverse laboratories with advanced high-temperature furnace solutions. Our product line, including Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD/MPCVD Systems, is complemented by our strong deep customization capability to precisely meet unique experimental requirements. When you choose KINTEK, you're choosing a partner dedicated to innovation, quality, and tailored solutions for your specific needs.

Key Features & Benefits: Engineered for Excellence

The KINTEK Vacuum Lamination Press is designed to elevate your lamination processes with advanced features that ensure high-quality, consistent results:

Controlled Environment for Sensitive Materials: The vacuum glove box provides a vacuum and clean environment, crucial for oxygen-sensitive products and preventing contamination.
Integrated Multi-Functionality: Combines hydraulic press, electric heating, and vacuum capabilities in a single, efficient unit.
Precision for Optimal Results: Equipped with precise temperature and pressure controls, including multiple openings for exact adjustments, ensuring optimal bonding conditions for various materials.
Efficient Thermal Management: Electric heating plates with an internal cooling system prevent high temperatures from affecting the hydraulic press structure and significantly reduce cooling time, boosting productivity.
Versatile Heating Options: Platens can be heated using electric heaters, steam, or hot oil, offering flexibility for diverse material and application requirements.
Superior Lamination Quality: Ideal for heat-sensitive materials, the vacuum membrane system forms heated laminates without glossing or texture washout. It's also capable of forming and bonding laminates into deep recesses without popping or bubbling.
Broad Application Spectrum: From straight and curved veneer panels to carbon fiber work and vacuum infusion, this press handles a multitude of sophisticated lamination tasks.

Wide Range of Applications

Our Vacuum Lamination Press is trusted across diverse industries and applications, including:

Wafer bonding
Thin-film transformations
LCP lamination
Decorative engineered laminates for aircraft interior panels
Electronics and printed circuit boards
Honeycomb panels
Vacuum clamping & chucking
Veneering
Vacuum forming (e.g., for clay pottery)
Template routing
Carbon fiber work
Vacuum infusion

Detailed Technical Specifications

Dimensions & Structure

Dimensions	Over-all: 775mm(L) x 550mm(W) x 1325mm(H)
Structure	Two 135 x 135 mm flat heating platens made of high temperature resistant Cr steel with max. working temperature of 500ºC 1000W Heating element is inserted into the center of the heating plates for fast heating Max. Load on 135x135mm Heated Platen: 10 Metric Tons at 500°C (55 kg/cm²); 20 Metric Tons at RT (110 kg/cm²) Two precision temperature controllers which control two heating plates separately with 30 programmable segments Water cooling jackets are built on both top & bottom of the heating plates for assisting cooling
Hydraulic Pump	Modified electric hydraulic press is connected to vacuum chamber. Movable distance between two heating plates: 15 mm. Automatic max. pressure controlled via a digital pressure gauge. Pressure accuracy: +/-0.01 Mpa (0.1 kg/cm²) Two flat heating plates are installed with water cooling plates for Max. 500ºC working temperature. Water cooling (>15L/min) is required to cool the heating plates when the operating temperature is over 200 ºC.
Temperature control and Pressure Display	Two precision temperature controllers with 30 programmable segments control the heating plates separately with +/-1°C accuracy. The temperature controllers have PID auto tune function, over-temperature protection and thermal couple broken protection. Max. Temperature: 500°C with inert gas or vacuum with accuracy +/-1°C Max. Heating rate: 2.5°C/min Software and PC interface is built in the controller, which can be connected to a PC for computer controlling via a RS232 connector. Digital pressure meter (controller) is built outside the vacuum chamber. You can set pressure at the desired value which can stop the electric hydraulic press automatically.
Vacuum Chamber	Electric hydraulic press and heating plates are placed inside the vacuum chamber. Vacuum chamber is made of SS304 with the size: 525Lx480Wx450H (mm). Vacuum chamber Capacity: about 75 Liters. 300mm dia. vacuum sealed hinged type door with 150mm Dia. quartz glass window is installed for easy sample loading and observation. Silicone O-ring can be used for all vacuum sealings. One precision digital vacuum gauge (10E-4 torr) is installed on the vacuum chamber.

Technical Parameters by Model

Model	KT-VLP100	KT-VLP300	KT-VLP400
Heating plate size	100x100mm	300x300mm	400x400mm
Plates travel distance	30mm	40mm	40mm
Working pressure	30T during heating/40T in the cold state
Pressure gauge	Digital pressure gauge
Heating temperature
Temperature control	Touch screen with PID thermal controller
Vacuum chamber	304 Stainless steel
Vacuum pump	Rotary vane vacuum pump
Vacuum pressure	-0.1Mpa
Power supply	AC110-220V, 50/60HZ

Custom Solutions & Expert Support: Let's Discuss Your Project

At KINTEK, we understand that unique experimental requirements demand tailored solutions. Our strong deep customization capability allows us to modify or design a Vacuum Lamination Press that precisely fits your needs. Whether you have specific questions about our standard models or require a bespoke configuration, our team of experts is ready to assist you.

Ready to enhance your lamination processes? Contact us today to discuss your application, request a quote, or learn more about our customization options. Please use the Contact Form or reach out to our sales team.
