HFCVD Machine System Equipment for Drawing Die Nano Diamond Coating
Item Number : HFCVD-100
Price varies based on specs and customizations
- Ultimate vacuum degree
- 2.0×10-1Pa
- Diamond Coating Thickness
- 10 ~ 15mm
- Service life span
- 6-10 times longer
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.

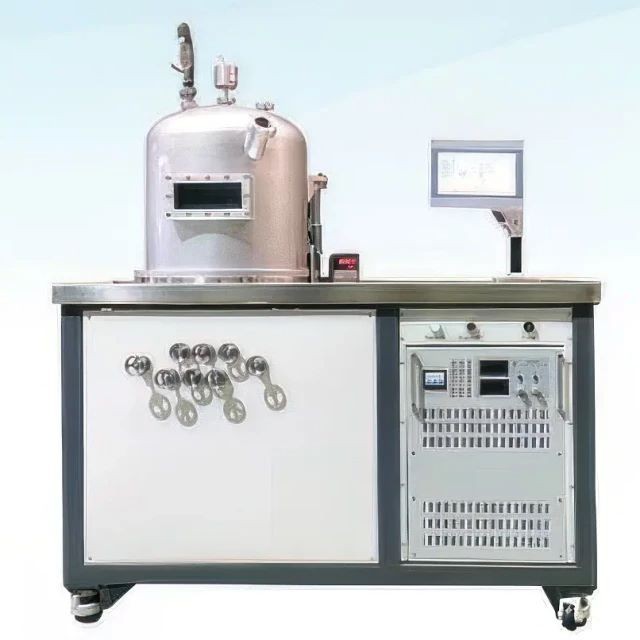

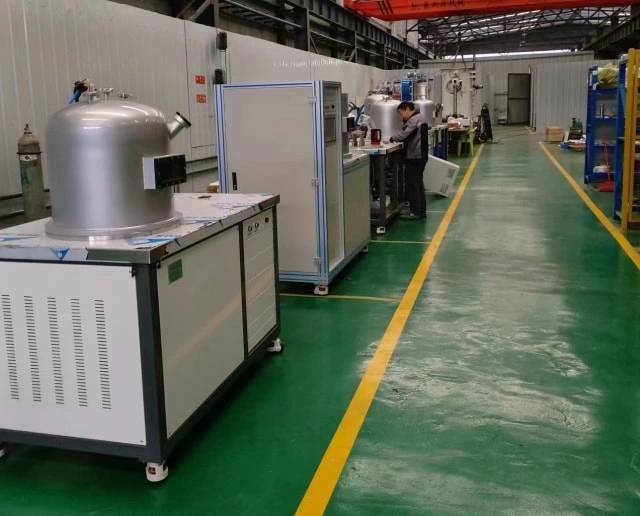

Visual Overview: HFCVD System for Diamond Coating
Discover KINTEK's advanced Hot Filament Chemical Vapor Deposition (HFCVD) system, expertly designed for producing high-quality nano-diamond composite coatings. This system is ideal for applications demanding superior hardness, wear resistance, and low friction, such as enhancing the performance and lifespan of wire drawing dies.
Technical Specifications
| HFCVD technical composition | ||
| Technical Parameters | Equipment composition | System Configuration |
| Bell Jar: Dia. 500mm, Height 550mm, SUS304 stainless steel chamber; inner stainless steel skin insulation, lifting height is 350mm; | A set of vacuum chamber (bell jar) main body (jacketed water-cooling structure) | Vacuum chamber (bell jar) main body;The cavity is made of high-quality 304 stainless steel; Vertical bell jar: the jacketed water-cooling jacket is installed on the overall periphery of the bell jar. The inner wall of the bell jar is insulated with stainless steel skin, and the bell jar is fixed on the side . Accurate and stable positioning ; Observation window: horizontally arranged in the middle of the vacuum chamber 200mm Observation window, water cooling, baffle, side and upper configuration 45 Degree bevel angle, 50° observation window (observe the same point as the horizontal observation window, and the sample supporting platform); the two observation windows maintain the existing position and size.Bell jar bottom is 20mm higher than the plane of the bench , set cooling; the holes reserved on the plane, such as large valves, air release valves, air pressure measurement, bypass valves, etc., are sealed with metal mesh and reserved for installing electrodes Interface; |
| Equipment table: L1550* W900*H1100mm | One set of drag sample table device (adopting double-axis drive ) | Sample holder device: Stainless steel sample holder (welding water cooling ) 6- position device; it can be adjusted separately, only up and down adjustment, the up and down adjustment range is 25mm, and the left and right shaking is required to be less than 3% when going up and down ( that is, the left and right shaking of rising or falling by 1mm is less than 0.03mm ) , and the sample stage does not rotate when rising or falling. |
| Ultimate vacuum degree: 2.0×10-1Pa ; | A set of vacuum system | Vacuum system: Vacuum system configuration: mechanical pump + vacuum valve + physical bleed valve + main exhaust pipe + bypass; (provided by the vacuum pump supplier), the vacuum valve uses a pneumatic valve; Vacuum system measurement: Membrane pressure. |
| Pressure rise rate : ≤5Pa/h; | Two channels mass flow meter gas supply system | Gas supply system: The mass flow meter is configured by Party B, two-way air intake, the flow rate is controlled by the mass flow meter, after the two-way meeting, it enters the vacuum chamber from the top , and the inside of the air intake pipe is 50mm |
| Sample table movement: up and down range is ± 25m; it is required to shake left and right ratio when up and down by ± 3%; | One set of electrode device (2 channels) | Electrode device: The length direction of the four electrode holes is parallel to the length direction of the support platform, and the length direction is facing the main observation window with a diameter of 200mm . |
| Working pressure: use membrane gauge pressure gauge, measuring range: 0 ~ 10kPa; work constant at 1kPa ~5kPa,the constant pressure value changes plus or minus 0.1kPa; | A set of cooling water system | Cooling water system: The bell jar, electrodes, and bottom plate are all equipped with circulating water cooling pipelines, and are equipped with insufficient water flow alarm device 3.7: control system. Switches, instruments, instruments and power supply for bell lifting, deflation, vacuum pump, main road, bypass, alarm, flow, air pressure, etc. are set on the side of the stand, and are controlled by a 14 -inch touch screen; the equipment has a fully automatic control program without manual intervention, and can store data and call data |
| Air intake position: air intake at the top of the bell jar, and the position of the exhaust port is located directly below the sample holder; | Control system | |
| Control System: PLC controller + 10-inch touch screen | A set of automatic pressure control system (original pressure control valve imported from Germany ) | |
| Inflation system: 2 channels mass flow meter, flow range: 0-2000sccm and 0-200sccm; Pneumatic valve valve | Resistance Vacuum Gauge | |
| 3.1.10 Vacuum pump: D16C vacuum pump | ||
Understanding HFCVD Diamond Deposition
The Hot Filament Chemical Vapor Deposition (HFCVD) process for creating diamond films is based on the following working principle: a carbon-containing atmosphere is mixed with supersaturated hydrogen, activated (typically by hot filaments), and then passed over a substrate. Under precisely controlled conditions—including atmosphere composition, activation energy, substrate temperature, and the distance between the substrate and the activation source—a diamond film is deposited. The nucleation and growth of diamond films are generally understood to occur in three stages:
- Activation and Transition Layer Formation: Carbon-containing gas and hydrogen gas decompose at a certain temperature into carbon, hydrogen atoms, and other active free radicals. These combine with the substrate to first form a very thin carbide transition layer.
- Diamond Nucleation: Carbon atoms deposit diamond nuclei on the transition layer formed on the substrate.
- Film Growth: The formed diamond crystal nuclei grow into diamond micro-grains under a suitable environment, and then continue to grow into a cohesive diamond film.
Key Advantages of Our HFCVD System & Nano-Diamond Coatings

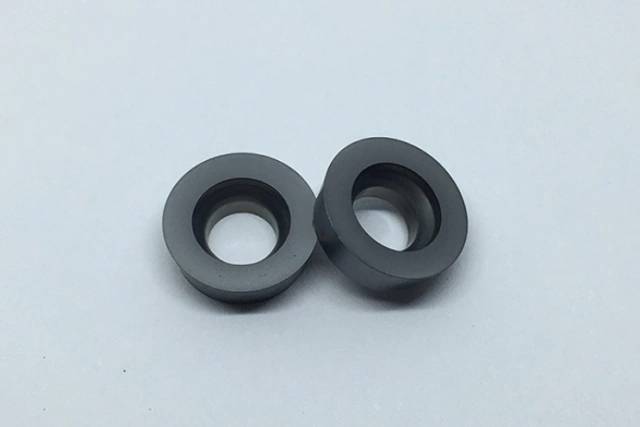

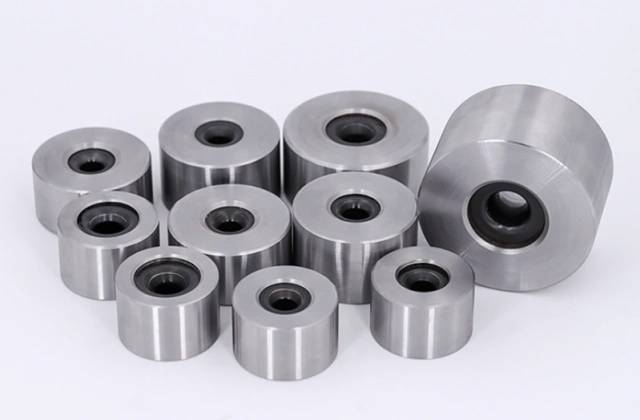

The nano-diamond composite coating drawing die, utilizing cemented carbide (WC-Co) as the substrate, employs the chemical vapor phase method (CVD) to deposit a conventional diamond and nano-diamond composite coating on the inner hole surface of the mold. This results in a brand new product after grinding and polishing the coating. The nano-diamond composite coating not only exhibits the strong adhesion and wear resistance characteristic of conventional diamond coatings but also offers the advantages of a flat, smooth surface, a small friction coefficient, and ease of grinding and polishing inherent to nano-diamond coatings. This technology resolves technical challenges related to coating adhesion and overcomes the bottleneck of difficult-to-polish diamond coating surfaces, removing obstacles to the industrialization of CVD diamond films.
|
Technical indicators |
Traditional drawing die |
Nano-diamond coated drawing die |
|
Coating Surface Grain Size |
none |
20~80nm |
|
Coating diamond content |
none |
≥99% |
|
Diamond Coating Thickness |
none |
10 ~ 15mm |
|
Surface roughness |
Ra≤0.1mm |
Class A: Ra≤0.1mm Class B: Ra≤0.05mm |
|
Coating drawing die inner hole diameter range |
Ф3 ~ Ф70mm |
Ф3 ~ Ф70mm |
|
Service life span |
Life span depends on working conditions |
6-10 times longer |
|
Surface friction coefficient |
0.8 |
0.1 |
Specific Design Advantages of KINTEK's HFCVD System:

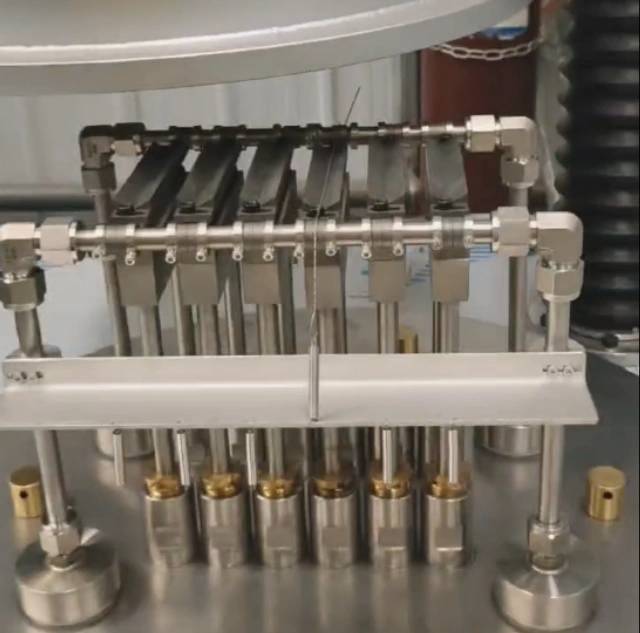

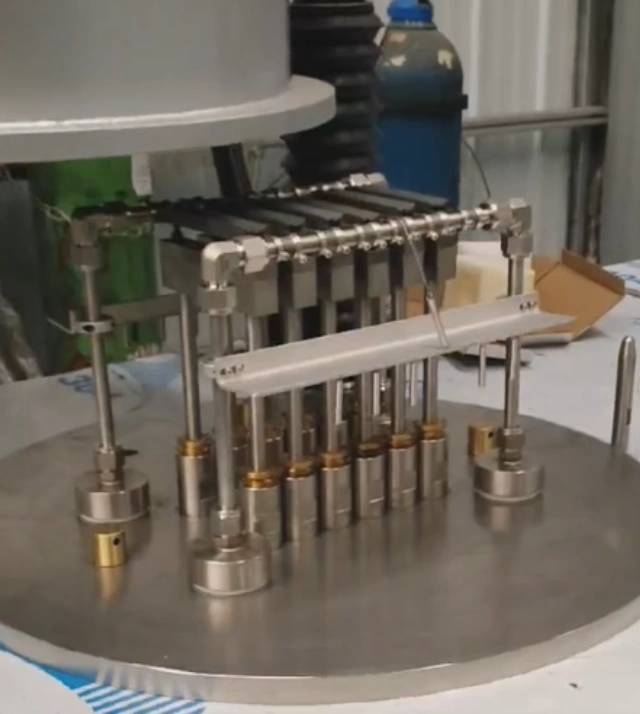

- Precision Mold Lifting Platform: For the parallelism and straightness of the mold lifting platform, our company has specially produced tooling. The biaxial lifting method allows the two ends to be raised and lowered by approximately ±0.02mm (2 wires), enabling the creation of smaller, high-precision molds.
- Optimized Tooling Integration: Our company integrates the location of each component on the tooling, focusing on the mold's tooling and process. This ensures good tooling and clamping, stable and reliable operation, high precision, and ease of use.
- Advanced Pressure Control: While other manufacturers may use baffle valves that cannot be adjusted linearly (gap increases quickly upon opening), our company designs the system with a shut-off valve based on principles of stable pressure control. This allows the shut-off gap to be linearly adjusted, achieving stable pressure control.
- Fully Automatic Control System: The system automatically controls pressure according to computer algorithms, reducing operator randomness and enhancing process confidentiality. This saves labor and ensures more ideal consistency in mold quality for the same specifications.
- Stable Bell Jar Operation: For the stability of the lifting bell jar, our company uses self-lubricating bearings, which make the rotation more flexible and free of jamming. The system is designed to accommodate each customer's specific diamond coating process requirements.
Your Partner in Advanced Material Solutions
Leveraging exceptional R&D and in-house manufacturing, KINTEK provides diverse laboratories with advanced high-temperature furnace solutions. Our product line, including Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD/MPCVD Systems like this HFCVD unit, is complemented by our strong deep customization capability to precisely meet unique experimental requirements.
Ready to Enhance Your Diamond Coating Process?
Learn more about how our HFCVD system can be tailored to your specific research or production needs. Our experts are ready to discuss your requirements and help you find the optimal solution.
