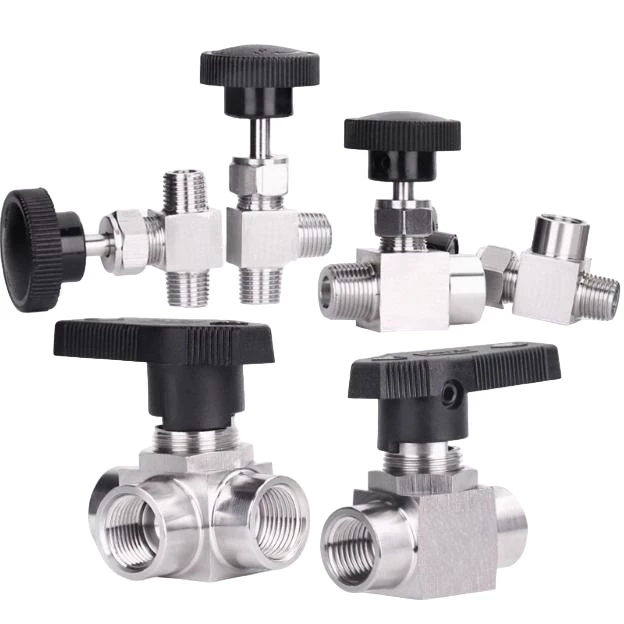

304 316 Stainless Steel High Vacuum Ball Stop Valve for Vacuum Systems
Item Number : KT-VA11
Price varies based on specs and customizations
- Material
- 304/316 Stainless Steel
- Working Pressure
- 10^-8 mbar - 1000 mbar
- Working Temperature
- -196°C - 200°C
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Detail & Parts
Explore the different configurations of our high-quality vacuum valves, designed to meet diverse system requirements:
Internal thread ball valve
External thread ball valve
Internal and external thread ball valve
KF Vacuum Ball Valve
Product Features
Our 304/316 stainless steel vacuum ball valves and stop valves are distinguished by their superior design and material selection, catering to a wide range of industrial needs. Here are the key features that set our products apart:
-
Material Selection:
- 304 Stainless Steel: Ideal for general corrosive environments, offering a balance of durability and cost-effectiveness.
- 316 Stainless Steel: Designed for highly corrosive environments, providing enhanced corrosion resistance for more demanding applications.
-
Valve Type:
- Vacuum Ball Valve: Featuring a ball seal design, these valves offer fast switching and excellent sealing performance, making them suitable for quick and efficient vacuum control.
- Vacuum Stop Valve: With a stop seal design, these valves are perfect for applications requiring precise control and stability in vacuum conditions.
-
Sealing Material: High-performance sealing materials such as PTFE and Viton are utilized to ensure superior vacuum sealing, maintaining integrity even under extreme conditions.
-
Operation Mode: Available in manual, pneumatic, and electric options, our valves cater to diverse automation needs, providing flexibility and ease of operation.
-
Connection Method: Various connection methods including flange, threaded, and welding ensure compatibility with different system configurations, enhancing installation convenience.
Product Advantage
Choosing KINTEK's 304/316 stainless steel vacuum ball valves and stop valves provides significant benefits for your high vacuum applications:
-
Superior Corrosion Resistance: Constructed from high-quality 304/316 stainless steel, our valves withstand harsh industrial environments, ensuring longevity and reliability where durability is paramount.
-
Exceptional Strength and Long Service Life: The robust design and premium materials guarantee high mechanical strength and extended operational life, minimizing downtime and replacement costs.
-
Versatile Operation Options: With manual, pneumatic, and electric operation modes available, our valves seamlessly integrate into diverse automation setups, offering enhanced flexibility.
-
Broad Application Suitability: Engineered to perform in a wide working pressure range (10^-8 mbar to 1000 mbar) and temperature range (-196°C to 200°C), these valves are ideal for a spectrum of industrial and scientific uses.
-
Precision Vacuum Control: Our vacuum stop valves are specifically designed for fine adjustments, delivering stable and precise control crucial for sensitive vacuum conditions.
-
Simplified Installation: Multiple connection methods (flange, threaded, welding) ensure compatibility with various system configurations, making installation and integration straightforward.
Technical specifications
| Parameter | Specification |
|---|---|
| Product Type | Vacuum Ball Valve/Vacuum Stop Valve |
| Material | 304/316 Stainless Steel |
| Working Pressure | 10^-8 mbar - 1000 mbar |
| Working Temperature | -196°C - 200°C |
| Leakage Rate | ≤10^-9 mbar·l/s |
| Operation Mode | Manual/Pneumatic/Electric |
| Connection Mode | Flange/Thread/Welding |
| Size | DN10 - DN100 |
| Application | Semiconductor, Photovoltaic, Scientific Research |
Product Application
Our 304/316 stainless steel vacuum ball valves and stop valves are indispensable components in critical high vacuum and ultra-high vacuum systems across various industries and scientific fields:
- Semiconductor Manufacturing: Essential for precise vacuum control in vacuum pump systems and gas transmission, ensuring process integrity and efficiency.
- Photovoltaic Industry: Provide reliable sealing and control in vacuum coating equipment and PECVD systems, crucial for maintaining optimal vacuum levels.
- Scientific Research Laboratories: Enhance high vacuum experimental setups and vacuum drying equipment with superior sealing and durability, supporting advanced R&D.
- Vacuum Coating: Ensure stability and reliability in processes requiring precise coating under vacuum conditions.
Working Principle
Understanding the operational mechanics of our vacuum valves ensures their optimal application:
-
Vacuum Ball Valve: Operates by rotating a spherical disc. Alignment with the flow path opens the valve; perpendicular positioning closes it, ensuring quick, reliable switching for vacuum integrity.
-
Vacuum Stop Valve: Functions by sliding a sealing element (disc or wedge) across the flow path. Blocking the flow closes the valve, offering precise control ideal for fine adjustments and stable vacuum.
-
Sealing Mechanism: Both valve types utilize advanced materials like PTFE and Viton for exceptional sealing, preventing leakage and maintaining high vacuum levels under extreme temperatures and pressures.
In summary, our 304/316 stainless steel vacuum ball valves and stop valves are engineered to deliver superior performance, reliability, and durability, making them the ideal choice for high vacuum systems in critical industrial and scientific applications. KINTEK's commitment to R&D and in-house manufacturing ensures you receive top-quality components.
Ready to optimize your vacuum systems or require a custom valve solution? Contact KINTEK today to discuss your specific requirements, request a quote, or learn more about our deep customization capabilities. We are here to help you achieve precision and reliability in your critical operations.
