At its core, a laboratory tube furnace is a high-performance heating device designed for one primary purpose: processing samples at extreme temperatures within a precisely controlled atmosphere. Unlike a simple oven, its tubular design allows for superior temperature uniformity and the ability to maintain vacuum or a specific gas environment, making it indispensable for materials science, chemistry, and engineering research.
The true value of a tube furnace is not simply its ability to reach high temperatures. It lies in its capacity to create a highly specific, uniform, and repeatable thermal environment, which is the foundation for reliable and meaningful experimental results.
The Anatomy of a Tube Furnace: Three Core Systems
A tube furnace's capabilities are a direct result of the interplay between three critical systems. Understanding each component reveals why this tool is so effective.
The Furnace Tube: The Heart of the Reaction
This is the central chamber where the sample is placed. The material of this tube is a critical choice that dictates the furnace's operating limits.
The most common materials are quartz and alumina. Quartz is suitable for temperatures up to around 1200°C and offers the benefit of being transparent. Alumina (or high-purity corundum) can withstand temperatures exceeding 1500°C and offers excellent chemical inertness, preventing sample contamination at extreme temperatures.
The Heating System: Generating and Distributing Heat
Heating elements, such as resistance wire coils or silicon carbide rods, are arranged around the exterior of the furnace tube. These elements are responsible for efficiently radiating heat inward.
A key feature is the configuration of heating zones. A single-zone furnace aims for maximum temperature uniformity across its length. More advanced multi-zone furnaces (with 2, 3, or even 5 zones) allow an operator to create a specific temperature profile or gradient along the tube, a critical function for processes like chemical vapor deposition (CVD).
The Control System: Precision and Safety
Modern tube furnaces use sophisticated PID (Proportional-Integral-Derivative) control systems. This is like an exceptionally smart thermostat that intelligently adjusts power to reach the set temperature quickly without overshooting it, ensuring high accuracy.
This system also manages atmosphere control, enabling operation under vacuum, an inert gas (like argon or nitrogen) to prevent oxidation, or a controlled flow of reactive gases. Features like dual-layer, air-cooled casings ensure the exterior remains at a safe temperature even when the interior is over 1000°C.
Key Functions That Enable Advanced Research
These components combine to deliver functions that are essential for developing and testing new materials.
High-Temperature Processing
The primary function is to heat materials to temperatures that can induce physical or chemical changes. This is used for processes like annealing, calcination, sintering, and synthesis, with many models capable of exceeding 1500°C (2732°F).
Atmosphere Control
The ability to control the gaseous environment is what separates a tube furnace from a standard muffle furnace. Removing air to create a vacuum eliminates contaminants, while introducing an inert gas protects sensitive materials from oxidation during heating.
Thermal Uniformity and Profiling
For most experiments, ensuring the entire sample is at the exact same temperature is vital for consistent results. Tube furnaces provide excellent temperature uniformity. As noted, multi-zone models take this a step further, allowing for the intentional creation of a precise temperature gradient.
Understanding the Trade-offs
Choosing a furnace involves balancing capabilities, convenience, and application-specific needs.
Horizontal vs. Vertical Furnaces
A horizontal furnace is the most common configuration, offering easy loading and observation. A vertical furnace is a space-saving alternative that is beneficial for processes like crystal growth or other applications where gravity can assist the experiment.
Split-Tube vs. Solid-Tube Designs

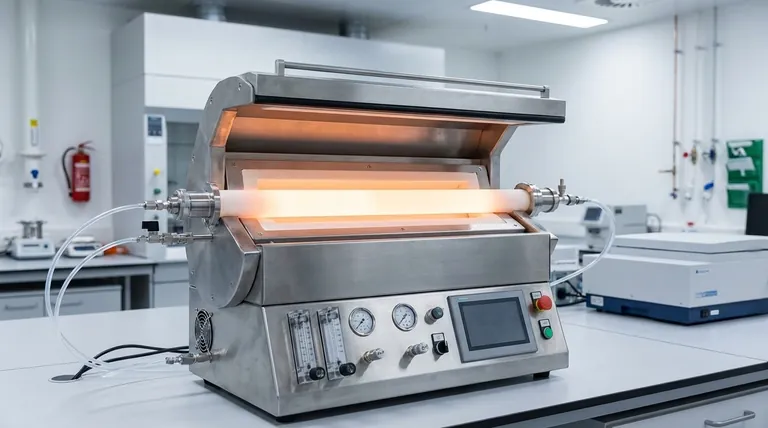

A standard, solid-tube furnace is simple and robust. A split-tube furnace, which opens on a hinge, offers a significant advantage in convenience. It allows operators to place or remove the process tube easily, which is especially useful when complex apparatus is connected to the tube ends.
Tube Material: Quartz vs. Alumina
This is a fundamental trade-off. Quartz is more affordable and allows for visual monitoring of the sample, but it is limited to lower temperatures. Alumina is more expensive and opaque, but it is the required choice for high-temperature work and provides superior chemical resistance.
How to Select the Right Furnace for Your Application
Use your experimental goals to guide your decision on the necessary features.
- If your primary focus is general-purpose heating and annealing below 1200°C: A single-zone horizontal furnace with a quartz tube is a versatile and cost-effective choice.
- If you are working with air-sensitive materials or require temperatures above 1200°C: Prioritize a furnace with an alumina tube and robust atmosphere control capabilities.
- If your experiments involve complex in-situ monitoring or require easy sample access: A split-tube furnace will provide the most significant practical benefit and save you considerable time.
- If you need to create precise temperature gradients for processes like crystal growth or CVD: A multi-zone furnace is not just a feature, it is a fundamental requirement.
Understanding these core functions and configurations empowers you to select the precise tool needed to achieve your specific research objectives.
Summary Table:
| Feature | Description | Key Benefit |
|---|---|---|
| Temperature Control | PID systems for precise heating up to 1500°C+ | Ensures repeatable and accurate experimental results |
| Atmosphere Control | Vacuum or gas environments (e.g., inert gases) | Prevents oxidation and contamination of samples |
| Tube Materials | Quartz (up to 1200°C) or Alumina (1500°C+) | Offers flexibility for temperature and chemical resistance |
| Heating Zones | Single-zone for uniformity or multi-zone for gradients | Enables complex processes like CVD and crystal growth |
| Design Types | Horizontal (easy access) or Vertical (space-saving) | Adapts to lab space and experimental setup needs |
