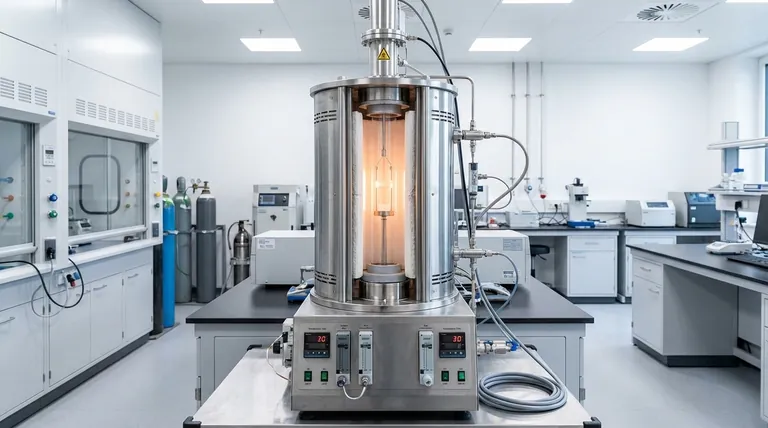

At its core, a vertical tube furnace is a high-temperature heating device distinguished by its upright, cylindrical design. It uses resistive heating elements to create a highly uniform and precisely controlled hot zone within a vertical tube, making it ideal for specialized material processing in controlled atmospheres.
The critical distinction of a vertical tube furnace is not merely its space-saving orientation. Its true value lies in leveraging gravity to achieve superior process outcomes, such as uniform coatings or uncontaminated sample heating, that are difficult to replicate in a horizontal setup.
How a Vertical Tube Furnace Works
A vertical tube furnace operates on simple, mature principles but applies them in a way that provides unique advantages for certain applications.
Core Components and Operation
The furnace consists of a vertically oriented process tube made from materials like quartz, ceramic, or metal, chosen for their resistance to high temperatures and corrosion. This tube is surrounded by resistive heating elements.
When electricity passes through these elements, they generate heat, which radiates inward to heat the sample inside the tube. This design naturally creates a central hot zone with extremely uniform temperature, while the ends remain cooler.
Precision Temperature Control
Modern vertical tube furnaces feature advanced control systems. A PID (Proportional-Integral-Derivative) controller continuously monitors the temperature and automatically adjusts the power to the heating elements.
This allows users to program precise heating rates, target temperatures, and holding times, ensuring stable and repeatable thermal processing.
Controlled Atmospheres
A key function of any tube furnace is the ability to control the atmosphere around the sample. The sealed tube can be purged and filled with inert gases to prevent oxidation, or it can be connected to a vacuum pump to create a low-pressure environment.
Key Advantages of the Vertical Orientation
Choosing a vertical model over a horizontal one is a deliberate decision based on specific process needs. The vertical alignment offers distinct benefits that go beyond its footprint.
Utilizing Gravity
This is the most significant advantage. For processes like chemical vapor deposition (CVD) or sample drying, gravity ensures that materials deposit evenly around a substrate or that liquids drain away properly. It is also crucial for drop-tube experiments.
Preventing Sample Contamination
In a vertical setup, samples can be suspended in the center of the hot zone. This prevents any physical contact with the tube walls, which can be a source of contamination or cause unwanted reactions at very high temperatures.
Efficient Space Usage
The most obvious benefit is a smaller footprint. For laboratories or production facilities where floor space is at a premium, a vertical furnace offers a more compact solution compared to its horizontal counterpart of the same capacity.
Understanding the Trade-offs and Considerations
While powerful, a vertical tube furnace is not the default choice for every application. Understanding its limitations is key to making an informed decision.
Sample Loading and Handling
Loading and unloading samples can be more complex than in a horizontal furnace. Samples often need to be suspended with wires or placed on specialized crucibles or holders, which can make setup more challenging.
Thermal Gradients
Like all tube furnaces, vertical models have natural temperature gradients, with the center being the hottest and the ends being cooler. While the central hot zone is highly uniform, its length is finite. Precise sample placement is critical to ensure it remains within this optimal zone.
Safety and Maintenance
These furnaces operate at extreme temperatures and often with specific gas atmospheres. Safety features like overheating and thermocouple-break protection are essential, automatically cutting power in an abnormal situation. The process tube is a consumable component that will eventually require replacement due to thermal stress.
Making the Right Choice for Your Process
The decision between a vertical and horizontal tube furnace should be driven entirely by the requirements of your application.
- If your primary focus is a process that benefits from gravity: Choose a vertical furnace for superior results in uniform coatings, crystal growth, or drop-tube experiments.
- If your priority is preventing any contact between your sample and the furnace tube: The ability to suspend a sample makes a vertical orientation the superior choice.
- If your main need is simple sample loading for bulk materials or varied shapes: A horizontal tube furnace often provides easier access and more straightforward operation.
- If your lab has significant space constraints: The smaller footprint of a vertical furnace offers a clear practical advantage.
Ultimately, selecting a vertical tube furnace is a strategic decision to leverage gravity and achieve a level of process control that other designs cannot offer.
Summary Table:
| Feature | Benefit |
|---|---|
| Vertical Orientation | Utilizes gravity for uniform coatings and prevents sample contamination. |
| Precise Temperature Control | Ensures stable, repeatable thermal processing with PID controllers. |
| Controlled Atmosphere | Enables inert gas or vacuum environments to prevent oxidation. |
| Compact Footprint | Saves valuable floor space in labs and production facilities. |
| Sample Suspension | Heats samples without contact with tube walls, eliminating contamination. |
