At its core, a box type resistance furnace is an integrated system built from four primary component groups working in concert. These include the structural shell and internal chamber, the electric heating elements that generate heat, the thermal insulation that contains it, and the control system that regulates the entire process with precision.
Understanding a box furnace isn't just about listing its parts; it's about seeing how they form a system designed for a single purpose: achieving and maintaining a precise, uniform, and reliable thermal environment for a specific industrial or laboratory process.
The Structural Foundation
The physical structure of the furnace provides the housing, safety, and workspace for the thermal process. It is composed of two main parts.
The Furnace Shell
The outer furnace shell serves as the robust external frame. It is typically constructed from welded angle steel and high-quality steel plates.
This shell provides structural integrity, protects the internal components, and ensures the safety of operators by containing the extreme internal temperatures.
The Furnace Chamber
Inside the shell is the furnace chamber, or working chamber. This is the rectangular cavity where materials are placed for heat treatment.
The chamber is built from high-temperature refractory materials capable of withstanding the thermal cycles without degrading.
The Heat Generation and Management System
This system is responsible for creating and containing the heat, which is the primary function of the furnace.
Electric Heating Elements
The "engine" of the furnace is its heating element. In a resistance furnace, these are typically high-resistance wires or rods.
When electrical current passes through these elements, their resistance causes them to heat up intensely, radiating thermal energy into the furnace chamber. Their placement is critical for achieving uniform temperature distribution.
Thermal Insulation
Between the inner furnace chamber and the outer shell lies the thermal insulation. This is a critical component for efficiency and safety.
Modern furnaces often use advanced materials like aluminum oxide fiber, which has excellent thermal properties. This insulation minimizes heat loss, reduces energy consumption, and keeps the external shell at a safe temperature.
The Control and Automation System
This is the "brain" of the furnace, ensuring the thermal process runs according to precise specifications.
The Temperature Control System
This system is a feedback loop consisting of temperature sensors (like thermocouples) and a controller.
The sensor measures the real-time temperature inside the chamber and sends this data to the controller. The controller then adjusts the power sent to the heating elements to maintain the desired temperature setpoint, ensuring accuracy and stability.
Atmosphere Control and Auxiliary Systems
For processes where materials could be damaged by oxidation at high temperatures, an atmosphere control system is included. This system purges the chamber of air and introduces a controlled gas (like nitrogen or argon).
Other auxiliary equipment, such as fans for forced convection or cooling, may be included to enhance heating efficiency or control cooling rates.
Understanding the Key Trade-offs
Selecting or specifying a furnace involves balancing performance with cost. The capabilities of each component directly influence this balance.
Temperature Uniformity vs. Cost
Achieving high temperature uniformity across the entire working chamber requires more sophisticated heating element design and placement, as well as higher-grade insulation. This increases the initial cost but is essential for sensitive processes.
Energy Efficiency vs. Initial Investment
A furnace with thicker, higher-quality thermal insulation and a more advanced control system will have a higher upfront cost. However, it will consume significantly less energy over its lifetime, leading to a better return on investment through lower operational costs.
Process Complexity vs. Maintenance
Adding features like atmosphere control makes a furnace more versatile but also introduces more components that require monitoring and maintenance. This complexity is necessary for certain applications but adds to the long-term cost of ownership.
Making the Right Choice for Your Application
Your specific process requirements will determine which components to prioritize.
- If your primary focus is high-temperature precision and uniformity: Scrutinize the quality of the temperature control system and the design and placement of the heating elements.
- If your primary focus is processing oxygen-sensitive materials: Ensure the furnace is equipped with a reliable atmosphere control system capable of maintaining the required inert environment.
- If your primary focus is operational efficiency and cost-effectiveness: Prioritize the quality and thickness of the thermal insulation and evaluate the energy consumption data for the unit.
Ultimately, a well-chosen furnace is one where each component is correctly specified to meet the demands of your unique process.
Summary Table:
| Component Group | Key Elements | Primary Function |
|---|---|---|
| Structural Foundation | Furnace Shell, Furnace Chamber | Provides housing, safety, and workspace for heat treatment |
| Heat Generation and Management | Heating Elements, Thermal Insulation | Generates and contains heat for uniform temperature distribution |
| Control and Automation | Temperature Control System, Atmosphere Control | Regulates temperature and environment for precise process control |
Ready to optimize your thermal processes with a custom box furnace? At KINTEK, we leverage exceptional R&D and in-house manufacturing to deliver advanced high-temperature furnace solutions tailored to your needs. Our product line includes Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems, all backed by strong deep customization capabilities. Whether you require precise temperature control, uniform heating, or specialized atmosphere systems, we can design a furnace that meets your unique experimental requirements. Contact us today to discuss how we can enhance your lab's efficiency and performance!

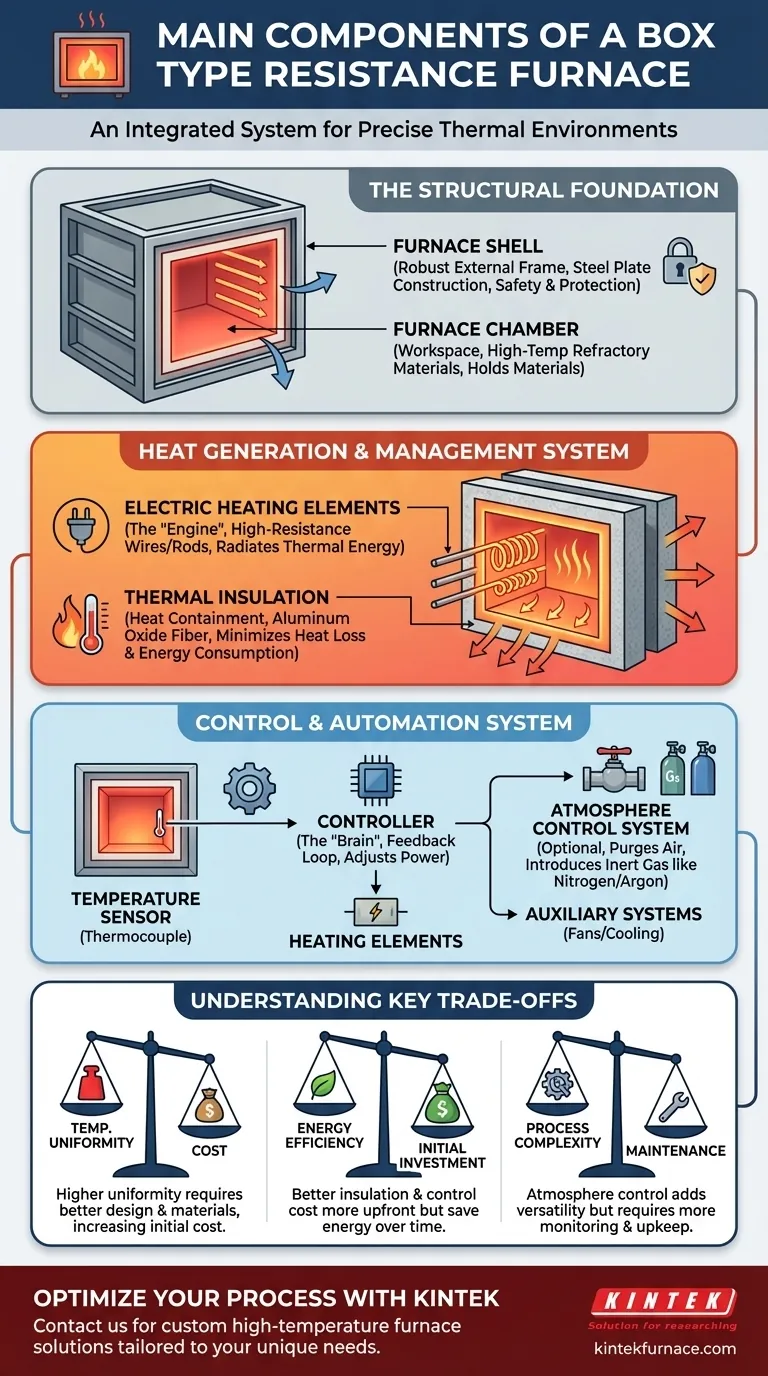

Visual Guide
