A water cooling system is essential in a vacuum furnace primarily to protect the structural integrity of the furnace vessel and its critical components from extreme internal temperatures. It continuously removes waste heat, ensuring that the vacuum chamber walls, seals, and power feedthroughs remain at a safe, stable temperature throughout the entire heating and cooling cycle.
While internal gas quenching is used to cool the workpiece, the water cooling system's fundamental role is to create a "cold wall" environment. This protects the furnace's structure from thermal damage, enabling the high-temperature, high-vacuum process to occur safely and repeatably.
The Core Function: Protecting the Furnace Structure
A vacuum furnace operates by creating a near-perfect vacuum, which is an excellent thermal insulator. This means heat generated inside the hot zone cannot escape through convection. Instead, it travels outward as intense thermal radiation. The water cooling system is the primary mechanism for managing this energy.
Creating a "Cold Wall"
The water cooling system circulates water through jackets or channels built into the furnace chamber's double walls. This actively absorbs the immense radiant heat coming from the internal heating elements and the hot workpiece.
By maintaining a cool outer wall, the system ensures the furnace's structural steel does not overheat, warp, or lose its strength.
Preserving Vacuum Integrity
The integrity of a vacuum depends on seals, typically made of elastomer O-rings. These seals would quickly degrade and fail if exposed to the high temperatures radiating from the hot zone.
The water cooling system keeps the flanges and sealing surfaces cool, preserving the O-rings and guaranteeing the high vacuum required for the process.
Safeguarding Critical Components
Numerous components must pass through the furnace wall, including large power feedthroughs for the heating elements, thermocouple ports for temperature measurement, and viewing ports.
Water cooling is often directed to these specific areas to prevent them from overheating, which could cause electrical failure, sensor inaccuracies, or a loss of vacuum.
Enabling High-Performance Thermal Processes
Beyond simply protecting the equipment, the water cooling system is a key enabler of advanced heat-treating capabilities.
Facilitating Rapid Cooling (Quenching)
To achieve specific material properties, a workpiece often needs to be cooled rapidly from a high temperature. This is done by backfilling the chamber with an inert gas like argon or nitrogen, which is circulated by a high-power fan.
The gas absorbs heat from the workpiece and transfers it to the furnace's "cold wall." The water cooling system must then work overtime to remove this massive heat load, making rapid gas quenching possible.
Ensuring Process Repeatability
A stable, consistently cool chamber wall provides a predictable boundary condition for the thermal process. This allows for precise control over heating and cooling rates, leading to highly repeatable results from one cycle to the next.
Understanding the Operational Requirements
An improperly managed water cooling system is one of the most common points of failure for a vacuum furnace. Its operation is not a passive process and requires strict control.
The Importance of Flow and Pressure
The system must be sized to handle the maximum thermal load of the furnace. A specific flow rate and pressure (e.g., greater than 0.2 MPa) are required to ensure enough water is moving through the system to carry away the heat effectively.
Any drop in flow or pressure can lead to immediate overheating and potentially catastrophic damage to the furnace chamber or hot zone.
Water Quality is Non-Negotiable
Using untreated water can lead to the buildup of mineral scale (calcium carbonate) inside the cooling channels. This scale acts as an insulator, preventing efficient heat transfer from the furnace wall to the water.
This can create dangerous hotspots on the furnace chamber, leading to warping or, in severe cases, a meltdown of the furnace wall. Regular monitoring of water quality and proper treatment are critical for furnace longevity.
Making the Right Choice for Your Goal
Understanding the role of the water cooling system helps you prioritize its operation based on your production goals.
- If your primary focus is process safety and consistency: Treat the water cooling system as the furnace's most critical safety device, ensuring its flow and pressure interlocks are always functional.
- If your primary focus is high throughput: Recognize that an efficient and powerful water cooling system is what enables aggressive gas quenching, which directly shortens cycle times.
- If your primary focus is equipment longevity: Implement a strict water quality and maintenance program to prevent scale buildup and protect your capital investment from premature failure.
Ultimately, the water cooling system is the foundational technology that makes modern, high-temperature vacuum processing both safe and reliable.
Summary Table:
| Function | Key Benefit |
|---|---|
| Protects furnace structure | Prevents warping and damage from extreme heat |
| Maintains vacuum integrity | Keeps seals cool to avoid leaks and ensure high vacuum |
| Safeguards critical components | Prevents overheating of power feedthroughs and sensors |
| Enables rapid cooling | Facilitates gas quenching for faster cycle times |
| Ensures process repeatability | Provides stable thermal conditions for consistent outcomes |
Upgrade your lab's capabilities with KINTEK's advanced high-temperature furnace solutions! Leveraging exceptional R&D and in-house manufacturing, we offer Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems, all with strong deep customization to meet your unique experimental needs. Ensure safety, efficiency, and reliability in your thermal processes—contact us today to discuss how we can support your goals!

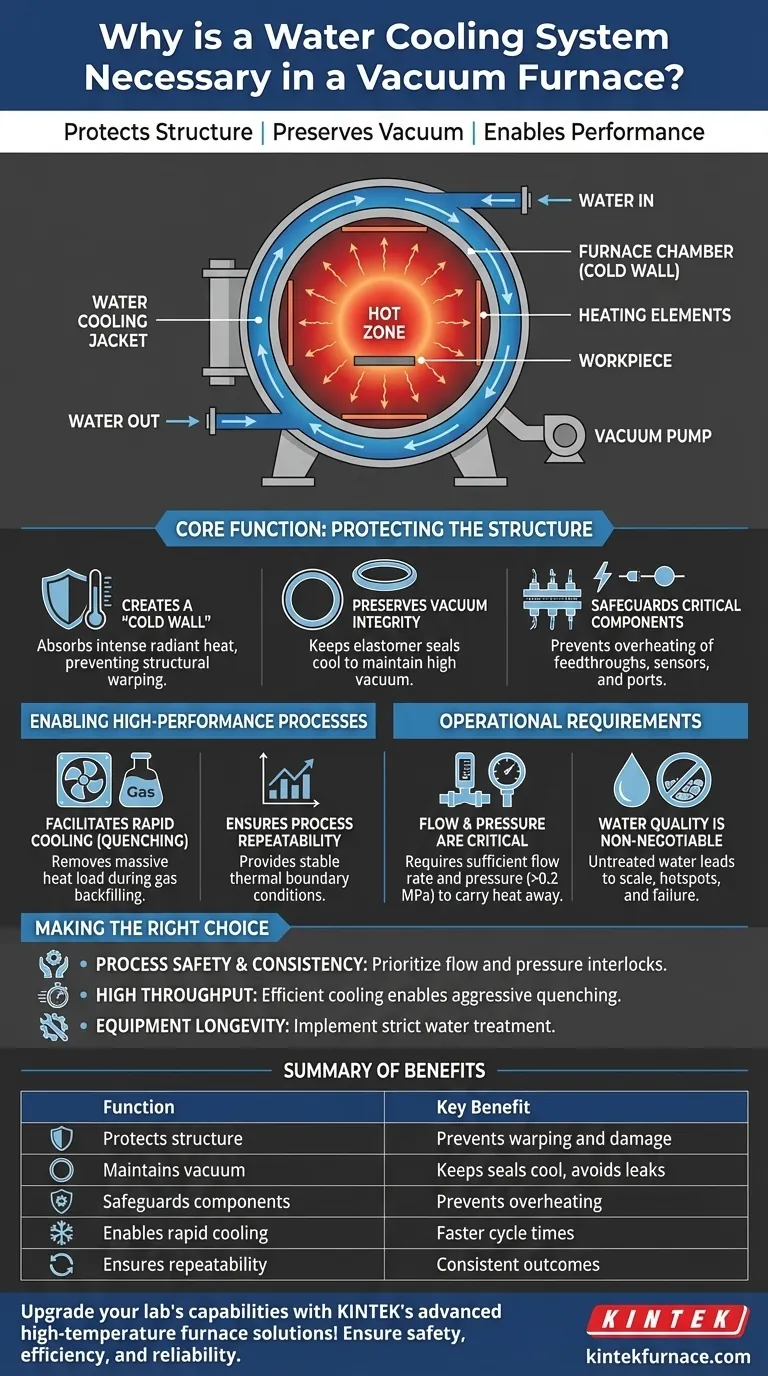

Visual Guide
