In short, tube furnace tubes are most commonly made from high-purity ceramics like Alumina or glass like Fused Quartz. The specific material is chosen based on the required operating temperature, chemical compatibility, and thermal durability needed for a given process. For highly specialized applications, such as those involving corrosive materials, tubes can also be made from metals like tungsten or molybdenum.
The selection of a tube furnace material is a critical decision driven by a balance of three factors: the maximum required temperature, the chemical inertness needed to prevent sample contamination, and the material's durability against thermal shock.
The Core Material Categories
The material of the furnace tube is the single most important factor defining its operational limits. Each material category offers a distinct profile of performance, durability, and cost.
High-Purity Ceramics (Alumina)
Alumina (or Corundum) is the material of choice for high-temperature applications, routinely handling temperatures up to 1700-1800°C.
Its dense, non-porous structure provides excellent chemical inertness, preventing reactions with the sample inside.
Alumina is also highly durable and resistant to the thermal stress of repeated heating and cooling cycles, giving it a longer operational lifespan compared to glass-based tubes.
High-Purity Glass (Fused Quartz)
Fused Quartz is a cost-effective and versatile option for moderate-temperature work, typically up to 1200°C.
Its key advantage is transparency, which allows for direct visual monitoring of the process inside the furnace—a critical feature for many experiments.
While chemically inert for most applications, quartz is more susceptible to thermal shock and can devitrify (become crystalline and brittle) with repeated use at high temperatures.
Specialized Metals & Alloys
For processes involving highly corrosive materials, specialized metal tubes are required. Tungsten and molybdenum are common choices for this purpose.
These metals maintain their structural integrity in chemical environments that would damage or contaminate ceramic and glass tubes.
In extreme cases, superalloys like Inconel may be used for custom applications demanding unique resistance to both extreme heat and specific chemical interactions, often seen in aerospace research.
Borosilicate Glass (Pyrex)
Pyrex is another glass option, but it is limited to much lower temperature applications compared to quartz. It is not a common choice for high-performance tube furnaces but can be used for less demanding thermal processes.
Understanding the Trade-offs
There is no single "best" material for a tube furnace. The optimal choice is always a trade-off based on the specific goals of your experiment or process.
Temperature vs. Cost
The most fundamental trade-off is between maximum operating temperature and cost. Alumina allows you to reach significantly higher temperatures but comes at a higher price point. Fused Quartz offers excellent performance for a majority of applications below 1200°C and is more economical.
Durability vs. Transparency
If long-term durability under frequent use is your priority, Alumina is the superior choice due to its excellent resistance to thermal shock. However, this comes at the cost of being opaque. If you must see your sample during the process, Fused Quartz is the only practical option.
Chemical Resistance vs. Generality
While both Alumina and Quartz offer broad chemical inertness, they are not universally immune. For aggressive or corrosive atmospheres, a specialized tungsten or molybdenum tube is non-negotiable, even if it represents a higher cost and is overkill for general-purpose work.
Selecting the Right Tube for Your Application
Your process requirements will dictate the correct material. Answering this question upfront prevents failed experiments, sample contamination, and equipment damage.
- If your primary focus is maximum temperature (>1200°C): Choose an Alumina tube for its superior heat resistance and durability.
- If your primary focus is visual monitoring and cost-effectiveness (<1200°C): Choose a Fused Quartz tube to balance performance with the ability to observe your process.
- If your primary focus is working with corrosive materials: You must use a specialized metal tube, such as tungsten or molybdenum, to ensure process integrity.
Ultimately, selecting the correct tube material is the foundation for achieving reliable and repeatable results in your thermal processes.
Summary Table:
| Material | Max Temperature | Key Features | Best For |
|---|---|---|---|
| Alumina (Ceramic) | Up to 1800°C | High durability, chemical inertness, opaque | High-temperature processes, frequent thermal cycling |
| Fused Quartz (Glass) | Up to 1200°C | Transparent, cost-effective, moderate thermal shock resistance | Visual monitoring, moderate-temperature applications |
| Specialized Metals (e.g., Tungsten) | Varies | Extreme chemical resistance, handles corrosive atmospheres | Aggressive or corrosive environments |
| Borosilicate Glass (e.g., Pyrex) | Lower temperatures | Limited to low-temperature uses | Less demanding thermal processes |
Need a Tube Furnace Tailored to Your Unique Requirements?
Choosing the right tube material is just the first step. At KINTEK, we leverage our exceptional R&D and in-house manufacturing capabilities to provide advanced high-temperature furnace solutions precisely matched to your experimental needs. Whether you require a standard Muffle or Tube Furnace, or a custom-designed Vacuum & Atmosphere Furnace or CVD/PECVD System, our strong deep customization capability ensures your furnace tube and overall system perform flawlessly under your specific conditions.
Let us help you achieve reliable, repeatable results. Contact our experts today to discuss your application and receive a solution engineered for success.

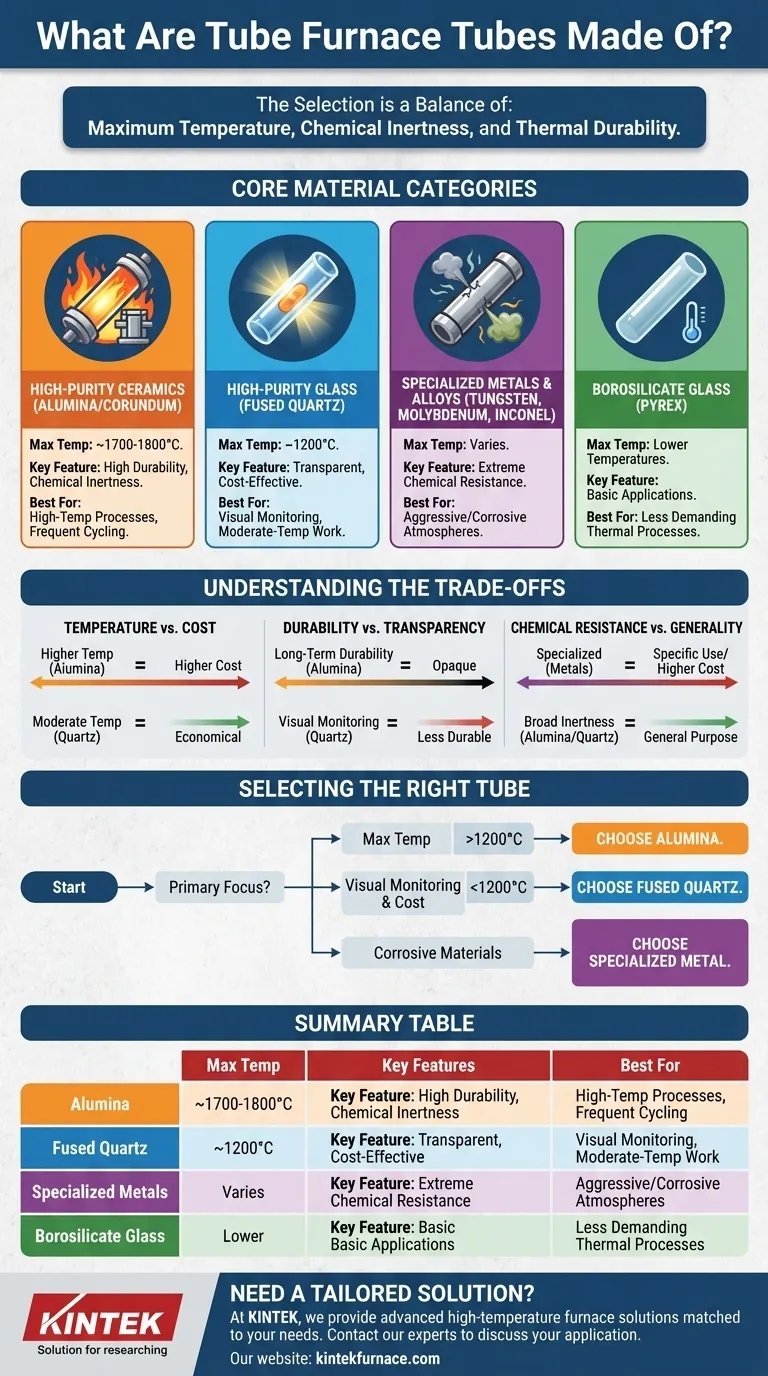

Visual Guide
