Graphene synthesis via chemical vapor deposition (CVD) is a sophisticated process that leverages controlled gas-phase reactions to produce high-quality, large-area graphene films. This method is favored for its scalability and ability to tailor graphene properties by adjusting process parameters. The synthesis involves precise gas flow ratios, temperature control, and substrate selection, followed by rigorous characterization to verify the material's structural and electronic properties. Below, we break down the key steps and considerations in CVD-based graphene synthesis.
Key Points Explained:
-
Precursor Gases and Flow Control
- Methane (CH₄) serves as the primary carbon source, while hydrogen (H₂) aids in carbon deposition and prevents excessive carbon buildup.
- The CH₄:H₂ flow ratio is critical: too much hydrogen can corrode graphene, while insufficient hydrogen may lead to amorphous carbon formation.
- Example: A typical ratio ranges from 1:10 to 1:50 (CH₄:H₂), optimized for uniform monolayer growth.
-
Reaction Chamber and Conditions

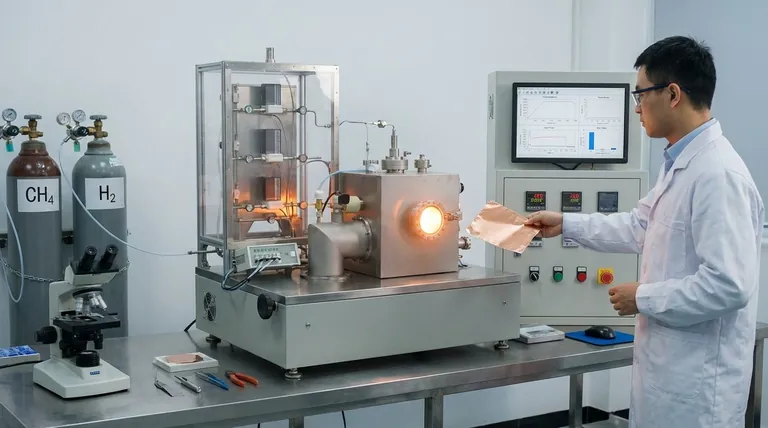

- The CVD system includes:
- A gas delivery system to regulate precursor flow.
- A heated reaction chamber (often a quartz tube) where graphene forms on substrates like copper or nickel.
- A vacuum system to maintain low pressure (e.g., 10⁻³ to 10⁻⁶ Torr), reducing unwanted gas-phase reactions.
- Temperatures range from 800°C to 1,050°C, enabling methane pyrolysis into reactive carbon species.
- The CVD system includes:
-
Plasma Enhancement (PECVD)
- In plasma-enhanced CVD (PECVD), plasma ionizes gases, lowering the required temperature (e.g., 300°C–600°C).
- Advantages:
- Suitable for temperature-sensitive substrates (e.g., polymers).
- Faster deposition rates due to higher reactivity.
- Frequency selection matters:
- 13.56 MHz yields dense plasma with low ion energy, ideal for delicate graphene.
- Dual-frequency systems balance ion bombardment and film quality.
-
Substrate Selection and Post-Processing
- Copper is preferred for monolayer graphene due to its low carbon solubility.
- Nickel supports multilayer growth but requires precise cooling rates to control layer thickness.
- Post-synthesis, graphene may be transferred to target substrates (e.g., SiO₂/Si) using polymer supports like PMMA.
-
Characterization Techniques
- Raman spectroscopy: Identifies graphene layers (2D/G peak ratio) and defects (D peak).
- TEM/SEM: Reveals atomic structure and surface morphology.
- AFM: Measures thickness and mechanical properties.
- X-ray spectroscopy: Confirms chemical bonding states (e.g., sp² hybridization).
-
Industrial Applications and Challenges
- CVD graphene is used in flexible electronics, sensors, and composites.
- Challenges include:
- Scaling up while maintaining quality.
- Minimizing defects (e.g., grain boundaries) during transfer.
By mastering these parameters, researchers and manufacturers can produce graphene with tailored properties for cutting-edge applications. The interplay of gas chemistry, temperature, and plasma dynamics underscores the precision required in this transformative technology.
Summary Table:
| Key Parameter | Role in CVD Graphene Synthesis | Optimal Range/Example |
|---|---|---|
| CH₄:H₂ Flow Ratio | Controls carbon deposition; excess H₂ corrodes graphene, insufficient H₂ causes amorphous carbon. | 1:10 to 1:50 |
| Temperature | Pyrolyzes methane into reactive carbon species. | 800°C–1,050°C (standard CVD); 300°C–600°C (PECVD) |
| Pressure | Reduces unwanted gas-phase reactions. | 10⁻³ to 10⁻⁶ Torr |
| Substrate | Copper for monolayers; nickel for multilayers (requires controlled cooling). | Cu foil, Ni films |
| Plasma Frequency | Influences ion energy and film quality in PECVD. | 13.56 MHz (low ion energy); dual-frequency systems |
