At their core, the difference between a tube furnace and a muffle furnace comes down to their geometry and how they process materials. A tube furnace heats samples within a narrow, cylindrical tube, making it ideal for continuous processes and controlled atmospheres. In contrast, a muffle furnace heats samples inside a box-like chamber, perfectly suited for processing multiple items at once in a single batch.
The choice is not merely about shape but about the fundamental nature of your work. Select a muffle furnace for batch processing in air and a tube furnace for precision atmosphere control or continuous flow applications.
The Fundamental Design Difference: Process Flow
The designs of these two furnaces are optimized for entirely different workflows: one for contained batches and one for controlled flow.
Muffle Furnaces: The Batch Processing Workhorse
A muffle furnace is essentially a high-temperature oven. Its name comes from the "muffle," an insulating chamber that separates the heating elements from the materials being processed.
You place your samples—often in crucibles or on trays—inside this rectangular chamber, close the door, and heat the entire batch simultaneously. This design is simple, robust, and ideal for handling larger quantities or bulky items.
Tube Furnaces: Precision for Continuous Flow and Atmosphere
A tube furnace uses heating elements that surround a cylindrical tube, typically made of ceramic, quartz, or metal. This creates a highly uniform hot zone along the length of the tube.
This design is uniquely suited for processes where materials are passed through the heated zone. More importantly, the tube can be easily sealed at both ends, allowing for precise control of the atmosphere through vacuum pumps or the introduction of inert gases.
Key Application Differences
Your specific application will almost always point you to the correct furnace type.
When to Use a Muffle Furnace
Muffle furnaces are the go-to choice for general-purpose heating where a specific atmosphere is not required. Their ability to handle batches makes them highly efficient for many common lab and industrial tasks.
Typical applications include ashing (burning off organic material), annealing metals, sintering ceramics, and general material heat-treatment. Standard models operate up to 1100-1200°C, while high-temperature versions can exceed 1800°C.
When to Use a Tube Furnace
A tube furnace excels in research and specialized production where environmental control is critical. If your process cannot tolerate oxygen or requires a specific gas, the tube furnace is the superior tool.
Common applications include chemical vapor deposition (CVD), material synthesis under inert gas, purification, and the heat treatment of wires or fibers that can be fed through the tube.
Understanding the Trade-offs
Neither furnace is universally better; they are simply optimized for different priorities. Understanding their trade-offs is key to making an informed decision.
Atmosphere Control
This is the most significant differentiator. A tube furnace provides exceptional atmosphere control. Sealing a narrow tube is simple and effective, making high-vacuum or pure inert gas environments achievable. While a muffle furnace can be outfitted with gas ports, purging the large chamber and maintaining a pure atmosphere is far more difficult and less efficient.
Temperature Uniformity
A tube furnace is designed to provide an extremely uniform temperature zone over a specific, defined length. A muffle furnace heats a larger volume, and while generally uniform, it can experience slight temperature gradients from the center to the corners, especially in larger units.
Sample Throughput and Size
For processing large, bulky objects or many small samples at once (like dozens of crucibles), the muffle furnace is unmatched. A tube furnace is inherently limited by the diameter of its process tube, making it suitable for powders, small parts, or thin substrates.
Making the Right Choice for Your Process
Your selection should be guided by the non-negotiable requirements of your thermal process.
- If your primary focus is batch processing of multiple samples or large items in air: A muffle furnace is your most practical and efficient solution.
- If your primary focus is precise atmosphere control (vacuum or inert gas) for synthesis or treatment: A tube furnace is the definitive choice for its superior sealing and environmental control.
- If your primary focus is continuous processing of materials in a controlled environment: A tube furnace is specifically designed for this type of flow-through workflow.
Understanding this core difference between batch-oriented isolation and flow-oriented control ensures you select the right tool for your specific thermal processing goal.
Summary Table:
| Feature | Muffle Furnace | Tube Furnace |
|---|---|---|
| Design | Box-like chamber for batch processing | Cylindrical tube for continuous flow |
| Atmosphere Control | Limited, best for air | Excellent, supports vacuum and inert gases |
| Applications | Ashing, annealing, sintering | CVD, material synthesis under controlled atmospheres |
| Temperature Uniformity | Good, with potential gradients in large units | High, uniform over defined hot zone |
| Sample Throughput | High for batches and large items | Limited by tube diameter, ideal for small parts |
Struggling to choose the right furnace for your lab's thermal processing needs? At KINTEK, we specialize in advanced high-temperature solutions tailored to your unique requirements. Our diverse product line—including Muffle, Tube, Rotary, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems—is backed by exceptional R&D and in-house manufacturing for deep customization. Whether you need precise atmosphere control with a tube furnace or efficient batch processing with a muffle furnace, we can help optimize your workflow. Contact us today to discuss how KINTEK's expertise can elevate your laboratory's efficiency and results!

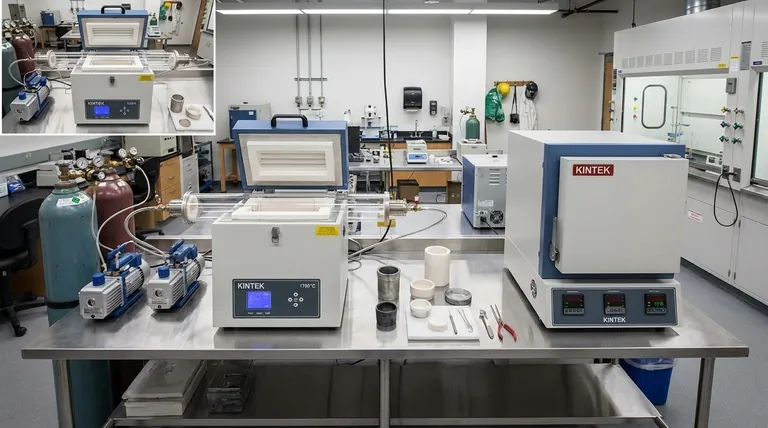

Visual Guide
