What Are The Common Types Of Inert Atmosphere Furnaces? Choose The Best For Your Materials

At their core, the most common types of inert atmosphere furnaces are classified by their physical design and how they handle materials. These include tube furnaces for smaller, controlled experiments, box furnaces for larger batch processing, rotary furnaces for continuous mixing, and specialized vacuum furnaces that use inert gas backfilling for the highest purity applications.

The most critical factor in choosing a furnace is not the inert gas itself, but the physical scale, shape, and processing requirements of your material. The furnace's design—whether tube, box, or rotary—dictates its suitability for specific applications, from lab-scale research to industrial production.

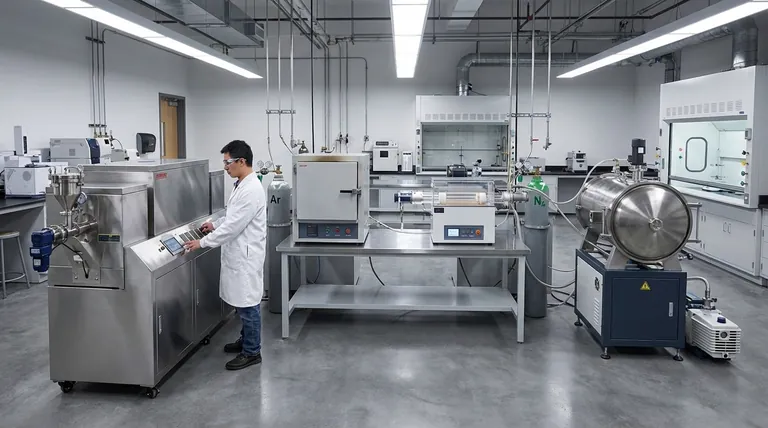

What are the common types of inert atmosphere furnaces? Choose the Best for Your Materials

The Role of an Inert Atmosphere

Why an Inert Environment is Crucial

An inert atmosphere furnace creates a non-reactive environment to protect materials during high-temperature processing. The primary goal is to prevent oxidation and other unwanted chemical reactions that can degrade material quality and integrity.

This control is essential for processes like annealing, brazing, curing, and various heat treatments where material properties must be preserved or precisely modified.

Common Gases Used

The environment is made inert by purging oxygen and other reactive gases and replacing them with a non-reactive gas.

The most common inert gases are Nitrogen (N₂) and Argon (Ar). Nitrogen is widely used and cost-effective, while Argon, being more inert, is reserved for materials that might still react with nitrogen at high temperatures. Helium (He) is also used in specific cases.

Classifying Inert Atmosphere Furnaces

Furnaces can be categorized by their operational flow and, more commonly, by their physical construction. Understanding these classifications helps align the equipment with the process requirements.

By Operational Flow

First, furnaces are divided into two main operational categories.

Batch-type furnaces process a single lot of material at a time. The material is loaded, the furnace is sealed and purged, the process is run, and the material is unloaded.

Continuous furnaces are designed for a constant flow of material, making them ideal for high-volume production lines where parts move through different temperature zones.

By Physical Configuration

The most useful classification is based on the furnace's physical shape and loading mechanism, which determines its application.

Tube Furnaces These use a cylindrical tube (often ceramic or quartz) to hold the sample. Their small, contained volume makes them easy to purge and ideal for small-scale operations, research and development, and processes requiring very precise atmospheric control.

Box Furnaces (or Muffle Furnaces) These are chamber-style furnaces that can accommodate larger materials or mass production in batches. They are versatile workhorses for general-purpose heat treatment, annealing, and brazing of multiple parts at once. They can be configured for front, bottom, or top loading.

Rotary Furnaces These feature a rotating cylindrical chamber. They are designed for processes that require continuous mixing, such as heat-treating powders, granules, or small parts, ensuring uniform exposure to heat and the inert atmosphere.

Vacuum Furnaces with Inert Atmosphere For the most highly sensitive materials, a vacuum furnace provides the ultimate control. The chamber is first pumped to a deep vacuum to remove virtually all atmospheric gases. It is then backfilled with a high-purity inert gas. This ensures an extremely pure, non-reactive environment.

Understanding the Trade-offs and Challenges

While essential for many applications, operating an inert atmosphere furnace involves specific challenges and costs that must be managed.

Ensuring Atmosphere Purity

Achieving a truly inert environment is a primary challenge. A common best practice is to first pump the chamber to a vacuum before introducing the inert gas. Repeating this pump-and-purge cycle several times ensures higher purity by removing trapped oxygen and moisture.

Operational Costs

The inert gases themselves, particularly high-purity Argon, represent a significant operational expense. Efficient purging cycles and ensuring the furnace is well-sealed are key to managing gas consumption.

Energy Consumption

Reaching and maintaining the high temperatures required for many heat treatment processes consumes a substantial amount of energy. Proper insulation and efficient design are critical for cost-effective operation.

Maintenance Complexity

Maintaining a perfectly sealed environment is paramount. Any leaks in door seals, fittings, or feedthroughs can compromise the inert atmosphere, leading to failed processes. This requires diligent and often complex maintenance routines.

Making the Right Choice for Your Process

Your selection should be guided by the specific demands of your material and production goals.

If your primary focus is R&D or small-scale, high-purity applications: A tube furnace offers precise atmospheric control in a compact, efficient design.
If your primary focus is general-purpose heat treatment of larger parts or batches: A box furnace provides the necessary volume and versatility for a wide range of industrial applications.
If your primary focus is continuous processing of powders or small parts: A rotary furnace ensures uniform heating and treatment through constant mixing.
If your primary focus is processing highly reactive or sensitive materials: A vacuum furnace with an inert gas backfill is the definitive choice for achieving maximum purity.

Ultimately, matching the furnace's physical design and operational capabilities to your specific process is the key to achieving successful, repeatable results.

Summary Table:

Type	Key Features	Ideal Applications
Tube Furnace	Small, controlled volume, easy purging	R&D, small-scale experiments, precise atmospheric control
Box Furnace	Large chamber, batch processing	General-purpose heat treatment, annealing, brazing of multiple parts
Rotary Furnace	Rotating chamber, continuous mixing	Processing powders, granules, small parts with uniform heating
Vacuum Furnace	Vacuum backfilled with inert gas, high purity	Highly sensitive materials, maximum purity applications
