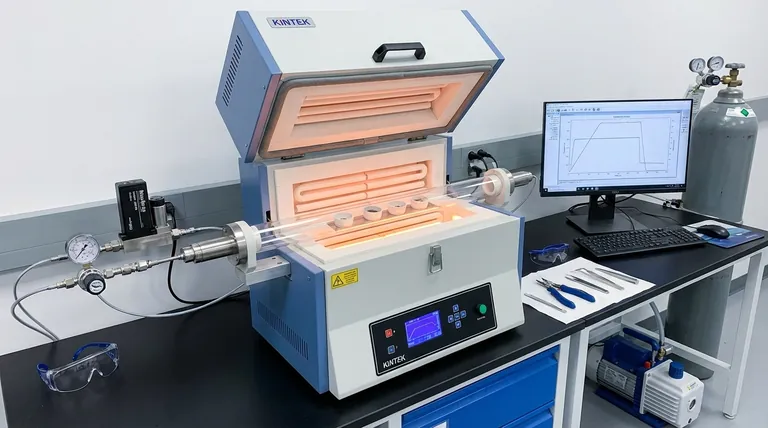

At its core, an atmosphere tube furnace works by heating a sample within a sealed tube, separate from the heating elements themselves. This fundamental design allows you to precisely control both the temperature of the sample and, critically, the chemical composition of the gas atmosphere surrounding it during the heating process.
The key innovation of an atmosphere tube furnace is its ability to decouple the heating mechanism from the sample's immediate environment. This enables high-temperature processing while preventing, controlling, or inducing specific chemical reactions, a level of control that is impossible in an open-air furnace.
The Core Principle: Isolating the Sample Environment
To understand how an atmosphere tube furnace operates, it’s best to break it down into its two primary functions: generating heat and controlling the atmosphere.
How Heating is Achieved
The furnace chamber contains electric heating elements, typically made of materials like Kanthal, Silicon Carbide (SiC), or Molybdenum Disilicide (MoSi2). These elements are positioned around the central process tube, not inside it.
When the furnace is activated, a controller sends an electric current to these elements, causing them to heat up via electrical resistance. This heat then radiates inward, uniformly heating the process tube and, by extension, the sample placed inside it. A temperature sensor (thermocouple) provides constant feedback to the controller, ensuring the temperature is maintained precisely at the desired setpoint.
How the Atmosphere is Controlled
This is the furnace's defining feature. The process tube, often made of quartz or high-purity alumina, acts as a sealed reaction chamber. One end of the tube has an inlet for introducing specific gases, while the other end has an outlet.
This setup allows an operator to first remove the ambient air (and its reactive oxygen) using a vacuum pump. Then, a specific gas or gas mixture can be flowed through the tube at a controlled rate. This can be an inert gas like argon or nitrogen to prevent any chemical reactions, or a reactive gas to intentionally cause a surface treatment like carburizing or nitriding.
Key Components and Their Function
Each part of the furnace plays a critical role in achieving this precise environmental control.
The Heating Chamber and Insulation
This is the main body of the furnace. It houses the heating elements and is lined with high-grade ceramic fiber insulation. This insulation is vital for minimizing heat loss, ensuring temperature uniformity, and improving energy efficiency.
The Process Tube
The tube is the heart of the system. The choice of material is critical and depends on the target temperature and chemical environment.
- Quartz: Used for temperatures generally below 1200°C.
- Alumina: Used for higher temperatures, often up to 1700°C or 1800°C.
The Gas Control System
A proper gas control system is what makes atmosphere control possible. This typically includes gas lines, flow meters or mass flow controllers to regulate the gas supply accurately, and a vacuum pump connected to the tube's outlet to purge the air before processing begins.
Understanding the Trade-offs and Variations
Not all tube furnaces are the same. The specific design is tailored to the application.
Batch vs. Continuous Furnaces
Most laboratory furnaces are batch furnaces, where a sample is loaded, processed, and then removed. For industrial-scale production, continuous furnaces are used, where materials move steadily through the heated tube on a conveyor system.
Static vs. Rotary Tubes
In a standard furnace, the tube is stationary. However, rotary tube furnaces slowly rotate the tube during operation. This tumbling action is ideal for processing powders or granular materials, as it ensures every particle is exposed to the same heat and atmospheric conditions, dramatically improving uniformity.
Material and Temperature Limitations
The single biggest limitation is the maximum operating temperature, which is dictated by both the heating elements and the process tube material. Exceeding the material's temperature rating can cause the tube to soften, warp, or crack, compromising the atmospheric seal.
Making the Right Choice for Your Goal
The configuration you need depends entirely on your objective.
- If your primary focus is material synthesis or annealing: You need an inert atmosphere (Nitrogen, Argon) to prevent oxidation and ensure a pure, clean final product.
- If your primary focus is surface modification: You will require a system that can safely handle reactive gases to create specific surface chemistries.
- If your primary focus is processing powders or granules: A rotary tube furnace is the superior choice for ensuring batch-to-batch consistency and uniformity.
Ultimately, the atmosphere tube furnace is a powerful tool because it gives you independent control over the two most critical variables in material processing: temperature and chemistry.
Summary Table:
| Component | Function |
|---|---|
| Heating Elements | Generate heat via electrical resistance, positioned around the process tube |
| Process Tube | Sealed chamber for sample isolation, made of quartz or alumina |
| Gas Control System | Manages gas flow and vacuum for atmosphere control |
| Temperature Controller | Maintains precise temperature using sensor feedback |
| Insulation | Minimizes heat loss and ensures uniform heating |
