What operating conditions should be avoided with MoSi2 heating elements? Protect Your High-Temperature Investment

MoSi2 (molybdenum disilicide) high temperature heating elements are widely used in industrial furnaces due to their high-temperature capabilities and oxidation resistance. However, their ceramic nature and specific material properties require careful operation to avoid premature failure. Key operating conditions to avoid include frequent power cycling, prolonged low-temperature use, rapid thermal cycling, contamination exposure, and improper handling due to brittleness. Understanding these limitations helps maximize their lifespan and performance in high-temperature applications.

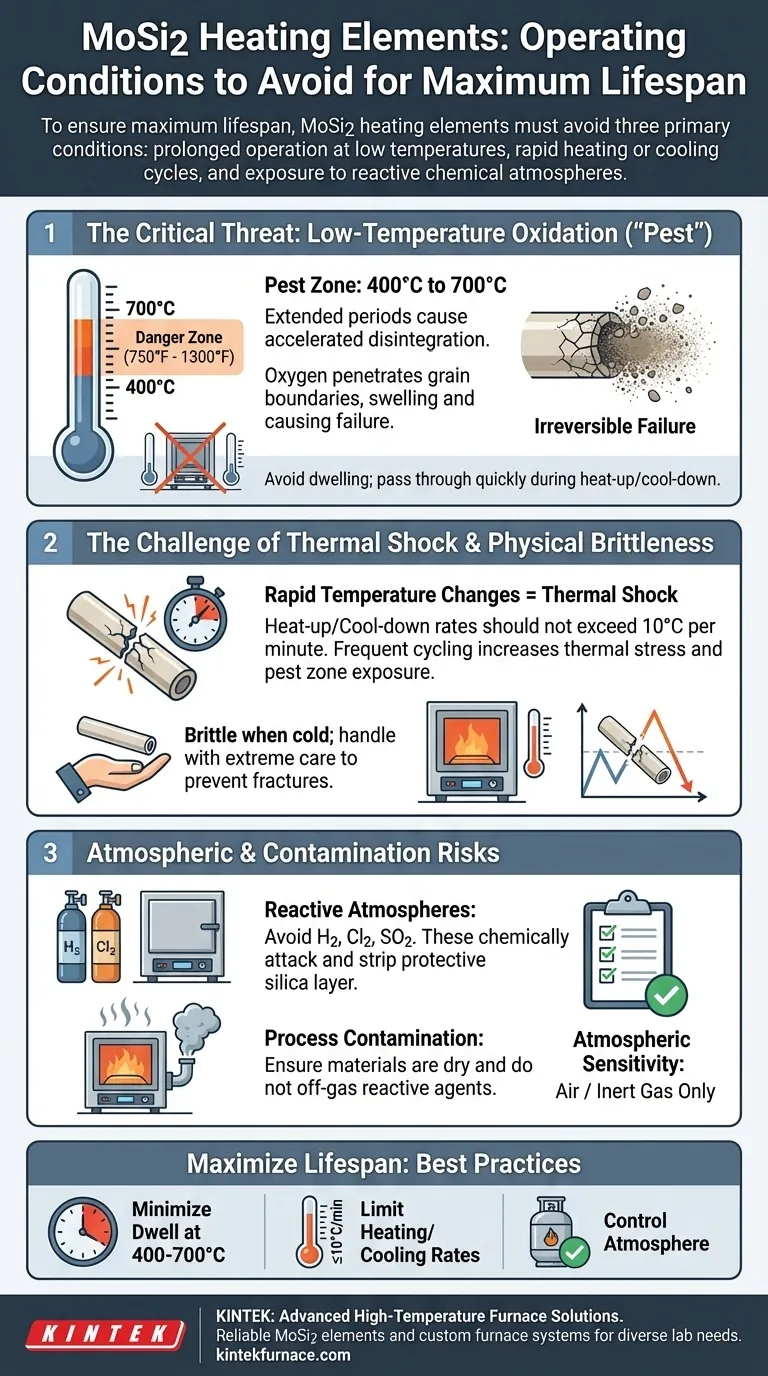

Key Points Explained:

  1. Avoid Frequent Power Cycling

    • MoSi2 elements should not be frequently turned on and off. Repeated thermal expansion/contraction from cycling stresses the brittle ceramic structure.
    • Designed for continuous operation, they perform best when maintained at stable high temperatures (typically above 1500°C for optimal lifespan).
  2. Prevent Prolonged Low-Temperature Operation

    • Operating between 400-700°C accelerates oxidation thinning. A protective SiO2 layer forms inadequately at these temperatures, leading to faster degradation.
    • Best practice: Rapidly heat through this critical range to minimize exposure during startup/shutdown.
  3. Control Thermal Shock Risks

    • Maximum heating/cooling rate: 10°C per minute to prevent fracture from thermal stress.
    • Brittle ceramic construction makes them vulnerable to:
      • Mechanical impacts during handling/installation
      • Uneven heating from localized furnace conditions
  4. Mitigate Contamination Issues

    • Requires careful furnace maintenance to avoid:
      • Moisture from improperly dried materials (e.g., colored/painted zirconia)
      • Chemical interactions with furnace atmospheres
    • Contaminants can disrupt the protective SiO2 layer formation at high temperatures.
  5. Electrical System Considerations

    • Special power control equipment needed due to:
      • Low voltage/high startup current requirements
      • Necessity for transformers to manage electrical characteristics
    • Typically wired in series circuits for optimal performance.
  6. Optimal Temperature Range Utilization

    • Peak performance at 1800-1900°C (element surface temperature)
    • Furnace design typically limits to 1600-1700°C for safety
    • Paradoxically lasts longer when operated above 1500°C compared to intermediate temperatures
  7. Handling and Installation Precautions

    • Special care required during:
      • Transportation (susceptible to vibration damage)
      • Installation (avoid mechanical stress at connection points)
    • Custom shapes/sizes require careful handling to prevent joint fractures

By understanding these operational constraints, users can leverage MoSi2's advantages - including auto-repair of the protective oxide layer, high heating rates, and excellent oxidation resistance - while minimizing the risks of premature failure. Proper operation balances their material limitations with their superior high-temperature performance.

Summary Table:

Condition to Avoid Reason Best Practice
Frequent power cycling Stresses brittle ceramic structure via thermal expansion/contraction Maintain continuous operation at stable high temperatures (>1500°C)
Prolonged low-temperature use Accelerates oxidation thinning (400-700°C) Rapidly heat through critical range during startup/shutdown
Rapid thermal cycling Risk of fracture from thermal stress (max 10°C/min heating/cooling rate) Use controlled ramp rates and avoid mechanical impacts
Contamination exposure Disrupts protective SiO2 layer formation Ensure dry materials and clean furnace atmospheres
Improper handling Brittle nature makes elements prone to damage Follow strict protocols for transportation/installation

Optimize your MoSi2 heating element performance with KINTEK’s expertise! Our advanced high-temperature furnace solutions—including custom-designed Muffle, Tube, and Vacuum Furnaces—are engineered to mitigate operational risks through precision engineering and R&D-backed designs. Leverage our in-house manufacturing and deep customization capabilities to tailor systems for your exact requirements. Contact our team today to discuss how we can enhance your furnace’s efficiency and longevity.
