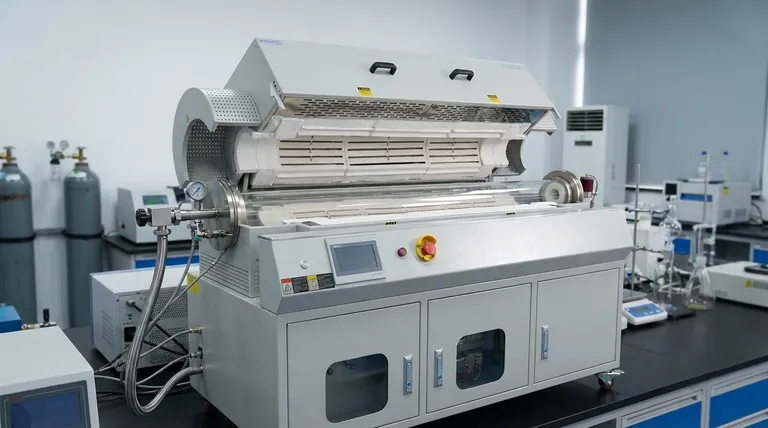

At its core, a rotary tube furnace is a specialized heating device that rotates during operation. Unlike a static furnace where the material remains still, this furnace continuously tumbles the sample within a cylindrical tube. This dynamic process is designed to achieve exceptionally uniform heating, especially for loose materials like powders and granules.
The fundamental challenge in heat-treating powders is ensuring every particle experiences the same temperature. A rotary tube furnace solves this by using rotation to constantly mix the material, eliminating hot spots and creating a homogenous processing environment that static furnaces cannot match.
How a Rotary Tube Furnace Solves the Uniformity Problem
The defining feature of this furnace—its rotation—is a direct solution to a common materials processing challenge. Static heating can be inefficient and produce inconsistent results, especially with non-solid materials.
The Principle of Dynamic Heating
A standard furnace heats a stationary object. In contrast, a rotary tube furnace employs dynamic heating. The cylindrical work tube rotates along its longitudinal axis, causing the material inside to cascade or tumble.
This constant motion ensures that every part of the material is repeatedly exposed to the furnace's heating elements and internal atmosphere.
Eliminating Hot and Cold Spots
For materials like powders, granules, or small parts, static heating is problematic. The material at the bottom and sides of a container gets hotter, while the material in the center remains cooler.
The tumbling action created by rotation completely mitigates this issue. It averages out the temperature exposure across the entire batch, leading to highly consistent and predictable results.
Ideal for Loose Materials
This method is particularly effective for powder processing. The continuous movement prevents clumping and ensures that process gases can interact with the entire surface area of every particle. This makes rotary furnaces essential for applications requiring high uniformity.
Key Capabilities and Features
Beyond its core function, a rotary tube furnace offers several advanced capabilities that make it a versatile tool for both laboratory research and industrial production.
Precise Temperature and Atmosphere Control
Modern rotary furnaces often feature multiple thermal control zones. This allows for precise temperature profiles to be programmed along the length of the tube, subjecting the material to specific heating and cooling rates as it travels.
Furthermore, these furnaces can be designed as gas-tight systems, often using a sealed vessel called a retort. This enables processing in controlled atmospheres, whether inert, oxygen-free, or reactive, which is critical for applications like sintering and chemical vapor deposition (CVD).
Enhanced Heat Transfer
The dynamic movement of the material doesn't just improve uniformity; it also enhances the efficiency of heat transfer. By constantly bringing new material to the heated surface of the tube, the process can often be completed in a shorter amount of time compared to static methods.
Continuous and Batch Processing
Rotary furnaces are exceptionally well-suited for continuous processing. Material can be fed into one end of the tilted tube and slowly travel to the other end as it is heated, enabling an uninterrupted industrial workflow. This minimizes material handling and is highly efficient for large-scale production.
Understanding the Trade-offs: Rotary vs. Static Furnaces
Choosing a rotary furnace means understanding its specific advantages and where a simpler, static furnace might be a better fit.
When Rotary Excels: Powders and Granules
If your process involves heating loose materials and achieving the highest possible temperature uniformity is your primary goal, a rotary tube furnace is the superior choice. Its ability to dynamically mix the material is a unique advantage.
When Static is Better: Solid Parts or Fixed Samples
A rotary furnace is unsuitable for processing single, solid components, parts that must maintain a specific orientation, or delicate structures that could be damaged by tumbling. For these applications, a standard (static) tube furnace is the correct and more cost-effective tool.
Mechanical Complexity
The primary trade-off is mechanical complexity. The motor, seals, and rotational drive system of a rotary furnace add maintenance requirements and potential points of failure that do not exist in a simpler static furnace.
Making the Right Choice for Your Process
Selecting the proper furnace requires aligning the tool's core strength with your material's needs.
- If your primary focus is processing powders or granules with maximum uniformity: A rotary tube furnace is the definitive choice due to its dynamic mixing action.
- If your primary focus is heat-treating solid, stationary components or growing crystals: A standard (static) tube furnace is the correct and more practical tool.
- If your primary focus is a gas-tight, controlled atmosphere for any material: You need a furnace with a retort design, which is available in both rotary and static configurations.
Understanding this fundamental distinction between dynamic and static heating empowers you to select the most effective tool for your specific material and process goal.
Summary Table:
| Feature | Description |
|---|---|
| Dynamic Heating | Rotates tube to tumble materials, ensuring uniform temperature exposure |
| Uniformity | Eliminates hot/cold spots, ideal for powders and granules |
| Temperature Control | Multiple thermal zones for precise heating and cooling profiles |
| Atmosphere Control | Gas-tight systems with retorts for inert or reactive environments |
| Processing Type | Supports continuous and batch operations for efficiency |
| Applications | Powder processing, sintering, CVD, and material research |
Upgrade your lab's capabilities with KINTEK's advanced high-temperature furnace solutions! Leveraging exceptional R&D and in-house manufacturing, we provide rotary tube furnaces and other systems like Muffle, Tube, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems. Our strong deep customization capability ensures we precisely meet your unique experimental needs for uniform heating and efficient processing. Contact us today to discuss how our solutions can enhance your research and production outcomes!
