How Is Temperature Controlled In A Vacuum Sintering Furnace? Master Precision For Superior Materials

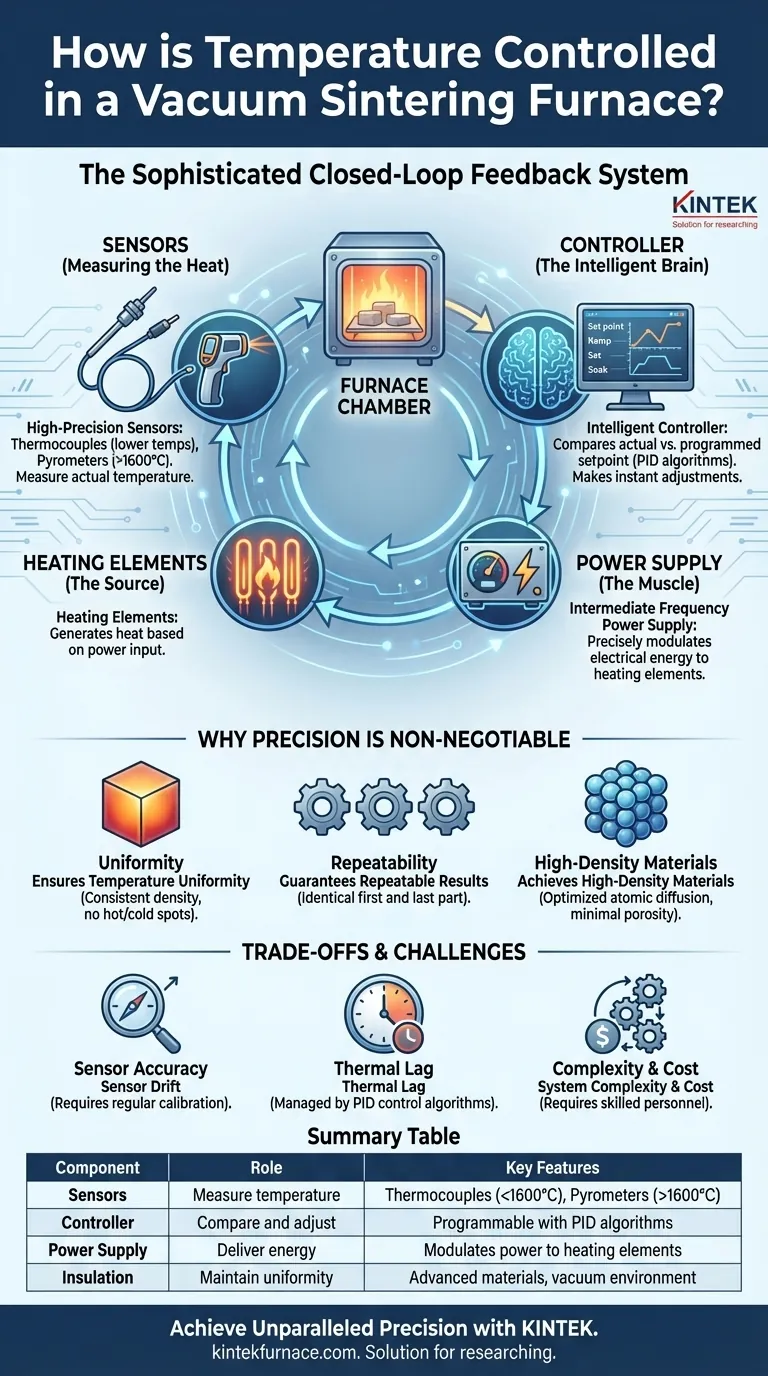

In a vacuum sintering furnace, temperature is controlled by a sophisticated closed-loop feedback system. This system continuously measures the actual temperature with high-precision sensors, compares it to a programmed setpoint in a digital controller, and instantly adjusts the power sent to the heating elements. This constant cycle of measuring and correcting ensures the furnace follows a precise temperature profile with exceptional stability.

The core principle of vacuum furnace temperature control is not simply heating, but a continuous, automated process of measurement and correction. This dynamic feedback loop is what enables the high uniformity, repeatability, and precision essential for advanced materials processing.

The Anatomy of a Temperature Control System

A successful sintering process depends entirely on the accuracy and responsiveness of its temperature control. This is not a single component, but an integrated system where each part plays a critical role.

The Sensors: Measuring the Heat

The system's "eyes" are its temperature sensors. The choice of sensor depends on the target temperature range.

For lower to medium temperatures, armored thermocouples are used. These are robust and reliable probes that measure temperature directly.

For extremely high temperatures (often above 1600°C and up to 2500°C or more), non-contact optical fiber infrared radiation thermometers (pyrometers) are necessary. They measure the thermal radiation emitted by the material, avoiding the physical limitations of thermocouples at such heat.

The Brain: The Intelligent Controller

The sensor data feeds into an intelligent temperature controller or a centralized computer system. This is the brain of the operation.

Here, an operator defines the entire heating program—including the rate of temperature increase (ramp), the duration at peak temperature (soak), and the cooling rate. The controller's sole job is to compare the real-time sensor reading to the value dictated by the program at that exact moment.

The Muscle: The Power Supply

When the controller detects a deviation between the actual and setpoint temperatures, it sends a signal to the intermediate frequency power supply.

This power supply acts as the muscle, precisely modulating the amount of electrical energy delivered to the furnace's heating elements. If the furnace is too cool, the controller demands more power; if it's too hot, it reduces power.

The Foundation: Uniformity and Insulation

The control system's effectiveness is supported by the furnace's physical design. Advanced insulation materials minimize heat loss, which helps maintain a stable environment and improves energy efficiency. The vacuum itself also promotes temperature uniformity by eliminating convection, ensuring that heat is transferred primarily through radiation.

Why This Precision is Non-Negotiable

The complexity of this system is directly tied to the strict demands of modern material science and manufacturing. Imprecise temperature control leads to failed processes and inconsistent products.

Ensuring Temperature Uniformity

For a part to sinter correctly, its entire volume must experience the same temperature. Precise control, combined with good furnace design, prevents hot or cold spots, ensuring consistent density and structural integrity.

Guaranteeing Repeatable Results

In a production environment, the first part must be identical to the last. A computer-controlled system can execute the exact same temperature profile with near-perfect repetition, which is the foundation of quality control and process validation.

Achieving High-Density Materials

Sintering is the process of bonding particles together through heat and pressure. The rate and quality of this atomic diffusion are extremely sensitive to temperature. Even minor deviations can prevent the material from reaching its target density, leaving behind unwanted porosity.

Understanding the Trade-offs and Challenges

While incredibly effective, these systems are not without their complexities. Understanding their limitations is key to operating them successfully.

The Critical Role of Sensor Accuracy

The entire control loop is only as accurate as its sensor. Thermocouples can degrade over time ("drift"), and pyrometers can be affected by vapors or coatings on the viewing window. Regular calibration and maintenance are essential to ensure the system is controlling to the true temperature.

The Challenge of Thermal Lag

There is an inherent delay between the power supply changing its output and the workpiece's temperature actually responding. A simple on/off controller would constantly overshoot and undershoot the target.

Modern intelligent controllers use algorithms (like PID control) to anticipate this lag. They learn the furnace's thermal behavior to make proactive adjustments, minimizing temperature fluctuations and holding the setpoint with extreme stability.

System Complexity and Cost

High-performance vacuum furnaces are significant investments. The sophisticated controllers, high-temperature sensors, and reliable power supplies contribute to the cost and require skilled personnel for programming and maintenance.

Making the Right Choice for Your Goal

The ideal control strategy depends on your specific application.

If your primary focus is research and development: Your priority is a system with flexible programming and precise data logging to test novel materials and complex heating profiles.
If your primary focus is high-volume production: You need a system that emphasizes rock-solid repeatability, automated control, and alarms to ensure every run is identical for quality assurance.
If your primary focus is processing highly sensitive materials: The key is a controller with advanced PID tuning capabilities to eliminate temperature overshoot and follow the programmed profile without deviation.

Ultimately, mastering temperature control is what elevates vacuum sintering from a simple heating process into a precise and repeatable manufacturing science.

Summary Table:

Component	Role	Key Features
Sensors	Measure temperature	Thermocouples for lower temps, pyrometers for high temps (>1600°C)
Controller	Compare and adjust	Digital, programmable with PID algorithms for stability
Power Supply	Deliver energy	Intermediate frequency, modulates power to heating elements
Insulation	Maintain uniformity	Advanced materials, vacuum environment reduces heat loss
