In short, the cooling speed in vacuum sintering is a critical control parameter that directly determines the final microstructure, mechanical properties, and dimensional integrity of the finished part. While the preceding heating and holding stages create the part's density, the cooling stage locks in its ultimate characteristics, such as hardness, strength, and resistance to cracking.
The cooling phase is not a passive final step; it is an active engineering process. Controlling the cooling rate allows you to precisely tailor the material's final properties, turning a standard component into one optimized for a specific performance requirement.
The Role of Cooling in the Sintering Cycle
The vacuum sintering process consists of several distinct stages: loading material, evacuating the furnace, heating to a specific temperature, holding at that temperature, and finally, cooling back to room temperature.
While heating and holding are responsible for bonding the material particles together and increasing density, the cooling stage solidifies the structure and defines its final state. The rate at which this happens has profound effects on the component.
How Cooling Rate Governs Material Properties
The speed of cooling is arguably as important as the sintering temperature itself. It influences several key outcomes, each of which must be carefully managed.
Controlling Microstructure and Grain Size
During the "hold" phase at high temperatures, the material's crystalline grains tend to grow. A slow cooling rate allows this growth to continue for longer, resulting in larger grains.
Conversely, a fast cooling rate (often called quenching) "freezes" the microstructure more quickly, resulting in smaller grains. Finer grain structures typically lead to higher strength and hardness in the final part.
Managing Phase Transformations
For many alloys, especially steels and titanium alloys, cooling speed dictates which crystalline phase is present at room temperature.
A rapid cool can trap a high-temperature phase, like austenite transforming into hard martensite in steel. A slow cool allows the material to transform into softer, more ductile phases like ferrite and pearlite. This control is fundamental to heat treatment.
Preventing Thermal Shock and Cracking
When a part is cooled too quickly, its outer surface cools and contracts faster than its core. This difference in contraction creates immense internal tension.
If this thermal stress exceeds the material's strength, it will cause catastrophic failure in the form of cracks or fractures. This is a primary risk of uncontrolled, rapid cooling.
Minimizing Residual Stress and Distortion
Even if the part doesn't crack, uneven cooling can lock in significant residual stress. These internal stresses can lead to part distortion or warping over time and can create weak points that may cause premature failure when the component is put into service.
A controlled, slower cooling rate allows the entire part to cool more uniformly, dramatically reducing the buildup of residual stress.
Understanding the Trade-offs: Speed vs. Stability
Choosing a cooling rate is a balancing act between achieving desired properties, maintaining part integrity, and optimizing production efficiency. There is no single "best" speed; it is always a trade-off.
The Risk of Rapid Cooling
The primary benefit of rapid cooling is the potential for enhanced hardness and strength through fine grain structures or specific phase transformations.
However, the risks are significant: a high probability of thermal shock, cracking, part distortion, and high residual stress. It requires highly uniform cooling, which can be difficult to achieve in a vacuum furnace.
The Drawbacks of Slow Cooling
Slow cooling is the safest path to ensure dimensional stability and prevent cracking. It produces a component with low internal stress.
The main drawback is cycle time. A slow cool can add hours or even days to the manufacturing process, reducing furnace throughput and increasing operational costs. It may also result in a microstructure (e.g., large grains) that is too soft or does not meet the required strength specifications.
Selecting the Right Cooling Strategy
Your choice of cooling speed should be dictated entirely by the final goal for your component. The process must be adapted to the material and the desired outcome.
- If your primary focus is maximizing hardness and strength: Use the fastest controlled cooling rate your material can tolerate without cracking to achieve a fine-grained or specific hard-phase microstructure.
- If your primary focus is ensuring dimensional stability and toughness: Use a slow, deliberate, and uniform cooling rate to minimize residual stress and prevent any risk of thermal shock.
- If your primary focus is high-volume production throughput: Experiment to find the fastest possible cooling rate that does not compromise the critical mechanical properties or integrity of your part.
Ultimately, treating the cooling phase as a precise engineering tool is what separates acceptable results from exceptional ones.
Summary Table:
| Cooling Speed | Effects on Material Properties | Risks and Benefits |
|---|---|---|
| Fast Cooling | Increases hardness and strength via fine grains or phase transformations (e.g., martensite in steel) | Benefits: Enhanced mechanical properties; Risks: Thermal shock, cracking, high residual stress |
| Slow Cooling | Improves dimensional stability, reduces residual stress, and prevents cracking | Benefits: High toughness and integrity; Risks: Longer cycle times, potential for softer microstructures |
Unlock the Full Potential of Your Sintering Process with KINTEK
Struggling to balance cooling speed for optimal material properties in your vacuum sintering? At KINTEK, we leverage exceptional R&D and in-house manufacturing to provide advanced high-temperature furnace solutions tailored to your needs. Our product line, including Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems, is complemented by strong deep customization capabilities to precisely meet your unique experimental requirements. Whether you're aiming for maximum hardness, dimensional stability, or high throughput, our expertise ensures you achieve superior results without defects.
Contact us today to discuss how our customized furnace solutions can enhance your sintering process and deliver the performance your materials demand!

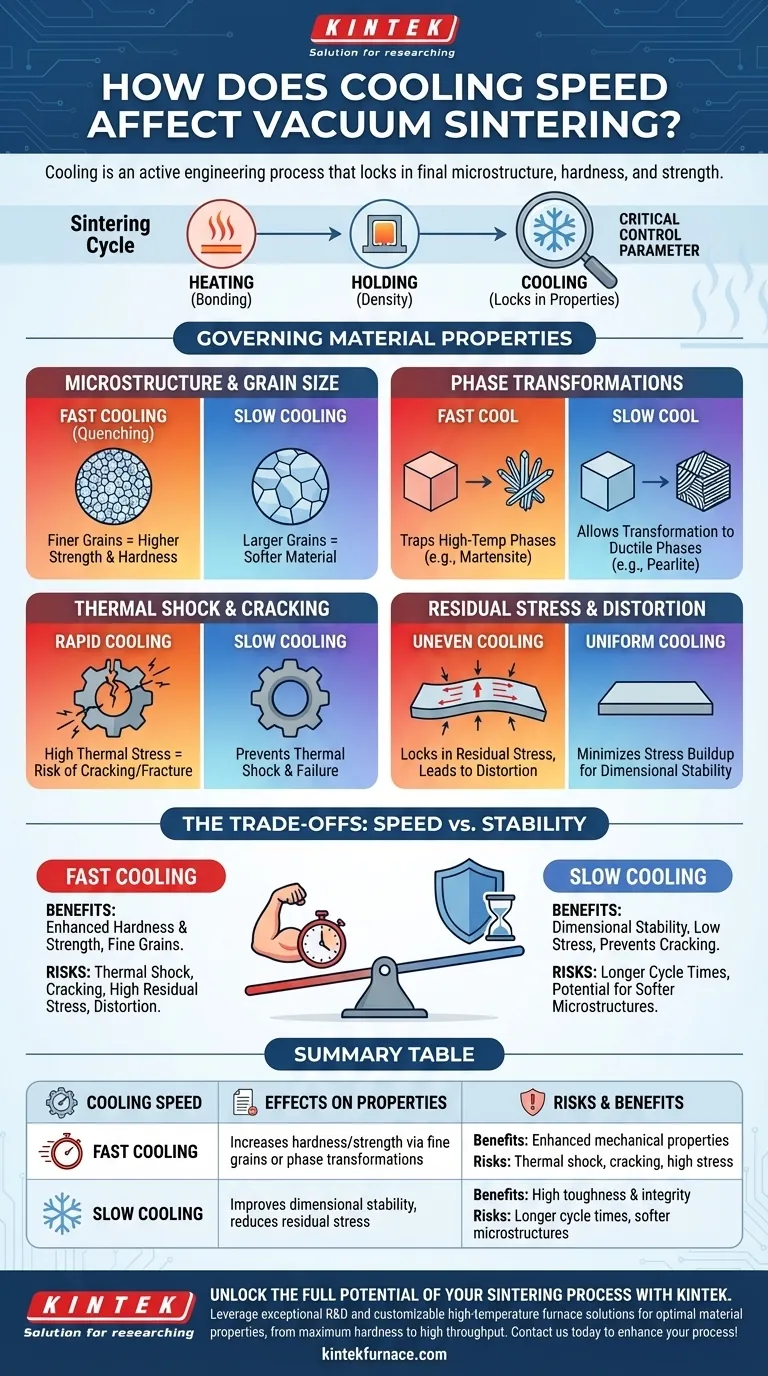

Visual Guide
