A retort furnace is constructed from a strategic combination of specialized materials, each chosen for a specific role in creating and maintaining a controlled, high-temperature environment. The core components include a gas-tight retort made of high-temperature resistant steel, advanced insulation like high-purity alumina fiber, and an outer shell built from welded steel plate for structural support.
The construction of a retort furnace is a lesson in materials science. Each component's material is carefully selected not just for heat resistance, but to create a precisely controlled, chemically isolated atmosphere, which is the furnace's primary function.
Deconstructing the Furnace: A Component-by-Component Material Analysis
To understand why certain materials are used, we must look at the function of each part of the furnace. The design prioritizes creating a sealed chamber, generating extreme heat, and containing that heat efficiently and safely.
The Retort: The Heart of the Process
The retort is the sealed, gas-tight chamber where the material processing actually occurs. Its material is the most critical selection.
It is typically made from high-temperature resistant steel alloys. This choice provides excellent durability, structural integrity under thermal stress, and the ability to maintain a perfect seal, which is essential for atmosphere control.
The Insulation: Maximizing Thermal Efficiency
The primary goal of insulation is to keep the intense heat inside the furnace, which improves energy efficiency and keeps the exterior shell cool to the touch.
Modern furnaces use advanced materials like high-purity alumina fiber or other lightweight refractory insulation. These materials have extremely low thermal conductivity, providing exceptional insulation in a lightweight, compact form compared to older, heavier refractory bricks.
The Furnace Shell: Providing Structural Integrity
The outer body, or shell, provides the furnace's framework and protects the delicate internal components.
This shell is constructed from angle steel and high-quality steel plate, welded together to create a rigid and durable housing. Some designs feature a double-layer shell to allow for air circulation, further aiding in cooling the exterior surface.
The Heating Elements: The Source of Thermal Energy
Heating elements are responsible for converting electrical energy into the thermal energy required for the process.
These are commonly made from graphite, ceramics, or specialized metal alloys. The specific material is chosen based on the furnace's maximum temperature rating and its chemical compatibility with the process atmospheres being used.
Understanding the Material Trade-offs
The choice of one material over another is always a balance of performance, cost, and operational requirements. There is no single "best" material, only the most appropriate one for the task.
High-Temperature Steel vs. Ceramic Chambers
While high-temperature steel is the common choice for retorts due to its strength, some specialized furnaces use quartz or alumina ceramic tubes as the process chamber.
Steel offers superior mechanical durability and is less prone to cracking from thermal shock. Ceramics, however, provide higher chemical inertness and can often withstand higher peak temperatures, making them ideal for high-purity applications.
Atmosphere Compatibility is Non-Negotiable
The materials for the retort and heating elements must be chemically compatible with the specialized gases used in the furnace (e.g., nitrogen, hydrogen, argon).
A reaction between the process gas and the furnace components at high temperatures can contaminate the workpiece and degrade the furnace itself. This is a primary consideration in material selection for any controlled-atmosphere furnace.
Insulation: Bricks vs. Fiber
Traditional furnaces used dense refractory bricks for insulation. While durable, these bricks have high thermal mass, meaning they heat up and cool down slowly.
Modern ceramic fiber insulation has a much lower thermal mass. This allows the furnace to reach its target temperature more quickly and cycle faster, improving operational efficiency and throughput.
Matching Materials to Your Application
The ideal material composition of a retort furnace depends entirely on your specific heat treatment requirements.
- If your primary focus is general-purpose strength and durability: A furnace with a high-temperature resistant steel retort and a robust steel frame is the industry standard.
- If your primary focus is high-purity processing or chemical inertness: Consider models that utilize ceramic components, such as an alumina process tube, to prevent any metal contamination.
- If your primary focus is energy efficiency and rapid cycling: Prioritize furnaces built with a full ceramic fiber insulation structure over those using traditional refractory bricks.
By understanding how each material contributes to the furnace's function, you can select a tool that is perfectly aligned with your technical goals.
Summary Table:
| Component | Key Materials | Primary Function |
|---|---|---|
| Retort | High-temperature resistant steel alloys | Creates a sealed, gas-tight chamber for atmosphere control |
| Insulation | High-purity alumina fiber, ceramic fiber | Maximizes thermal efficiency and energy savings |
| Furnace Shell | Angle steel, high-quality steel plate | Provides structural integrity and safety |
| Heating Elements | Graphite, ceramics, specialized metal alloys | Generates thermal energy for high-temperature processes |
Need a custom retort furnace for your lab? KINTEK leverages exceptional R&D and in-house manufacturing to provide advanced high-temperature furnace solutions, including Muffle, Tube, Rotary, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems. Our strong deep customization capability ensures we precisely meet your unique experimental requirements for enhanced efficiency and performance. Contact us today to discuss your needs and get a tailored solution!

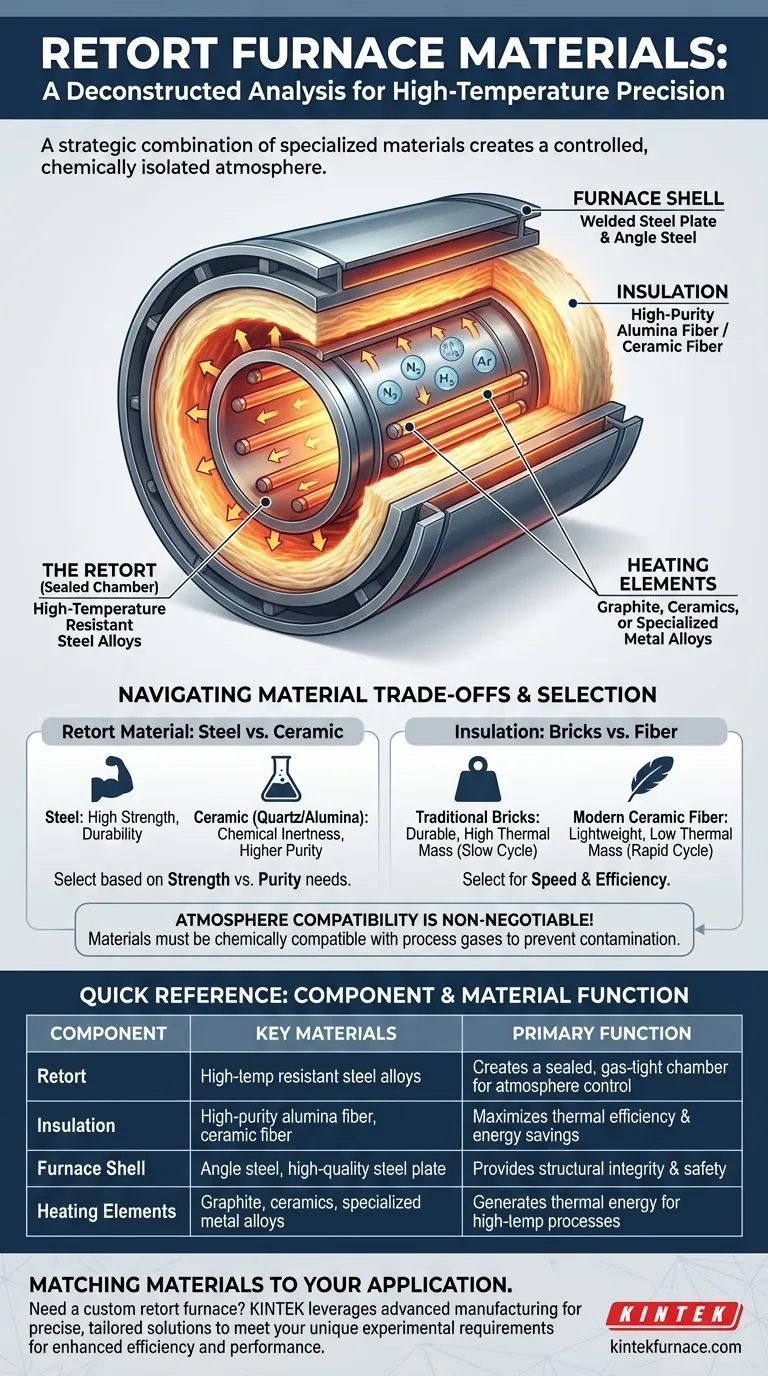

Visual Guide
