At its core, an atmosphere tube furnace is a specialized piece of laboratory or industrial equipment defined by two primary capabilities: precise temperature control and the ability to maintain a highly specific gaseous environment. These features allow it to heat materials within a sealed tube while preventing unwanted chemical reactions like oxidation, making it an indispensable tool for advanced materials processing.
The true purpose of an atmosphere tube furnace is not simply to heat a sample. Its value lies in creating a pristine, tightly controlled environment where temperature and gas composition are manipulated to fundamentally alter a material's properties in a predictable and repeatable way.
Deconstructing the Core Components
To understand its features, you must first understand its anatomy. An atmosphere tube furnace is an integrated system where each component serves a critical function in achieving environmental control.
The Furnace Tube
This is the central chamber where the sample is placed. The material of the tube is a critical choice that dictates the furnace's capabilities. Common options include quartz glass for purity and visibility, alumina or other ceramics for very high temperatures, and heat-resistant steel for durability.
The Heating System
Heating elements, typically made of high-resistance wire or silicon carbide, are positioned around the exterior of the furnace tube. This design ensures uniform temperature distribution along the sample's length. This system is governed by a programmable controller and a thermocouple that measures and regulates the temperature with high precision.
The Atmosphere Control System
This is the furnace's defining system. It consists of gas inlets and outlets connected to a gas source. Using mass flow controllers, an operator can introduce a specific gas—or a precise mixture of gases—into the tube, purging the ambient air. This allows for processing in inert (argon, nitrogen), reducing (hydrogen), or vacuum environments.
The Sealing Mechanism
To maintain the integrity of the controlled atmosphere, the ends of the tube must be perfectly sealed. This is accomplished using vacuum flanges with O-rings. These flanges provide airtight seals while also housing the gas ports and access points for instrumentation.
The Two Pillars of Control
The key features of the furnace are best understood as two pillars of control that work in tandem. The synergy between them is what enables advanced material processing.
Precision Temperature Management
Atmosphere tube furnaces offer more than just high heat. Their control systems allow for programmable heating and cooling profiles. Users can set specific ramp rates (how fast the temperature rises), dwell times (how long it stays at a set temperature), and controlled cooling cycles. This precision is vital for processes like annealing, tempering, and crystal growth.
Meticulous Atmosphere Control
The ability to remove oxygen and other reactive gases is paramount. By filling the tube with an inert gas like argon, you can prevent oxidation of sensitive materials at high temperatures. Using a reducing gas like hydrogen can actively remove oxides from a surface. This control over the chemical environment is essential for material synthesis, purification, and creating specific surface chemistries.
Understanding the Trade-offs and Safety
While powerful, these furnaces have inherent limitations and operational risks that demand careful consideration.
Material Limitations
The furnace's maximum operating temperature is ultimately limited by its weakest components: the furnace tube and the sealing materials. A quartz tube may be limited to around 1100-1200°C, while a high-purity alumina tube can reach 1700°C or higher. Exceeding these limits or inducing rapid temperature changes (thermal shock) can cause the tube to crack.
Sample Size and Throughput
By design, a tube furnace is best suited for small, uniform samples that fit within the tube's diameter. This geometry is excellent for achieving high temperature uniformity but is a significant constraint for processing large or irregularly shaped parts, where an atmosphere box furnace might be more appropriate.
Essential Safety Protocols
Operating a tube furnace requires strict adherence to safety procedures. Key built-in features often include over-temperature protection to shut the system down if it exceeds a set point. For systems using flammable gases like hydrogen, gas leakage detectors and safety interlocks are non-negotiable to prevent the risk of fire or explosion.
Making the Right Choice for Your Application
Selecting the correct configuration depends entirely on your scientific or production goals.
- If your primary focus is high-purity material synthesis: Prioritize a system with high-vacuum capabilities, excellent sealing flanges, and a high-purity quartz tube.
- If your primary focus is high-temperature processing (>1200°C): You must select a furnace equipped with a mullite, alumina, or another advanced ceramic tube.
- If your primary focus is creating specific chemical reactions: A system with multiple mass flow controllers for precise gas mixing is essential.
- If your primary focus is rapid processing cycles: Choose a furnace with low thermal mass and a tube material, like quartz, that can better withstand thermal shock.
Understanding these core features and their implications empowers you to select and operate this powerful tool effectively and safely.
Summary Table:
| Feature | Description |
|---|---|
| Precision Temperature Control | Programmable heating/cooling profiles with uniform distribution for processes like annealing and crystal growth. |
| Atmosphere Control | Maintains inert, reducing, or vacuum environments using mass flow controllers to prevent oxidation and enable specific reactions. |
| Sealing Mechanism | Uses vacuum flanges with O-rings for airtight seals, ensuring gas integrity and safety. |
| Safety Features | Includes over-temperature protection and gas leakage detectors for secure operation with flammable gases. |
| Material and Size Considerations | Tube materials (e.g., quartz, alumina) define temperature limits; suited for small, uniform samples with high throughput constraints. |
Unlock the full potential of your materials research with KINTEK's advanced high-temperature furnace solutions. Leveraging exceptional R&D and in-house manufacturing, we provide diverse laboratories with precise, customizable systems like our Tube Furnaces, Muffle Furnaces, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems. Our deep customization capability ensures your unique experimental requirements are met with reliability and efficiency. Contact us today to discuss how we can enhance your lab's performance and achieve superior results!

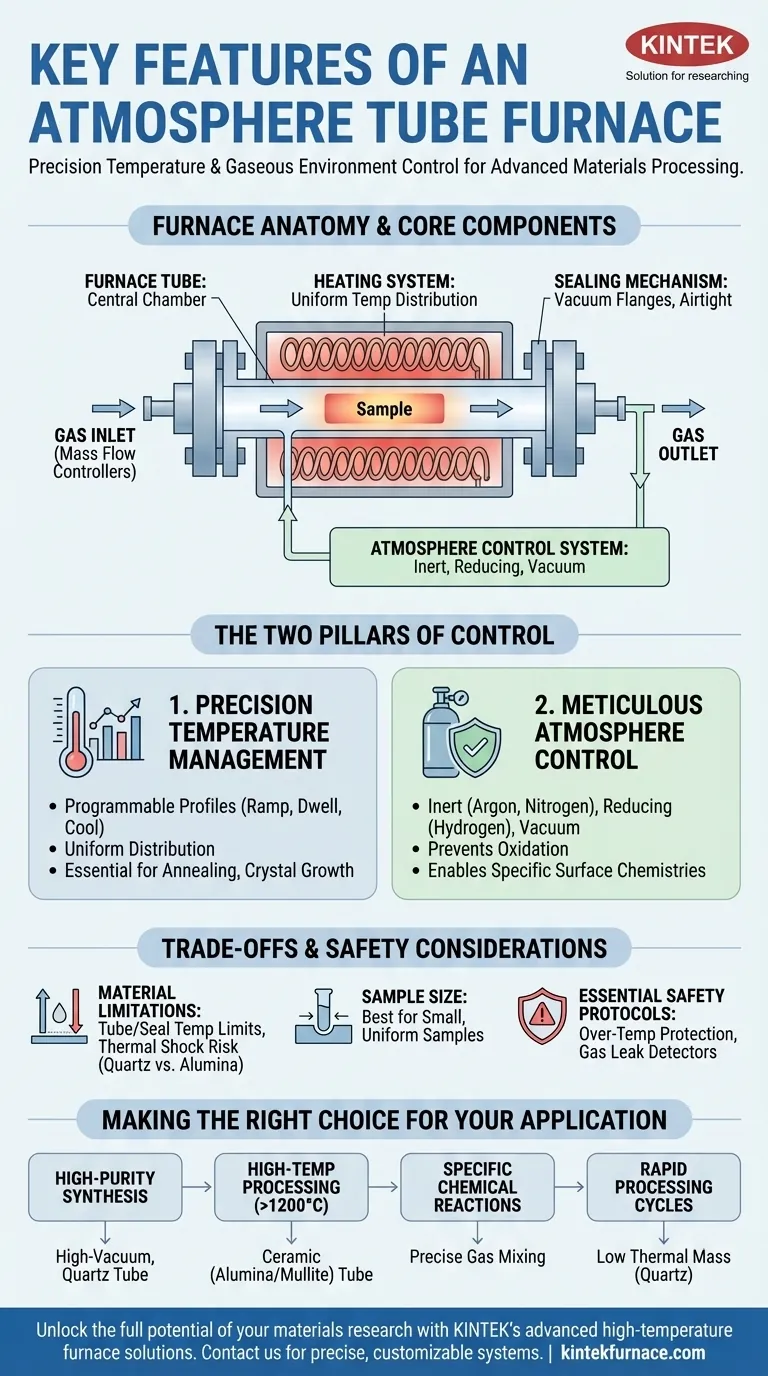

Visual Guide
