At their core, vacuum furnaces are defined by three pillars: a precisely controlled oxygen-free environment, exceptional thermal uniformity, and automated process repeatability. These systems are engineered to perform high-temperature processes like brazing, sintering, and heat-treating without introducing contamination or oxidation, allowing for superior material properties. Key characteristics include high-temperature ranges (800–3,000°C), deep vacuum levels, and sophisticated computer controls for precise, repeatable results.
A vacuum furnace is not just a tool for heating materials; it is a highly controlled environment designed to fundamentally enhance material properties by eliminating atmospheric interference and managing every phase of the thermal cycle with extreme precision.
The Core Pillars of a Vacuum Furnace
A vacuum furnace's value comes from its ability to create a pristine and highly controlled processing environment. This is achieved through the integration of three key operational principles.
The Vacuum Environment: Preventing Contamination
The most fundamental characteristic is the vacuum itself. By removing air and other gases, the furnace creates an oxygen-free environment.
This prevents oxidation and other undesirable chemical reactions that would otherwise occur at high temperatures, ensuring a clean, bright surface finish on the processed parts.
Furthermore, the vacuum actively removes volatile by-products and impurities from the material during heating, resulting in a higher purity final product.
Precision Thermal Management
Vacuum furnaces provide unparalleled control over the entire thermal cycle. They are designed for exceptional temperature uniformity across the heated zone, ensuring every part is processed identically.
Advanced systems offer precise control over heating rates, soak times, and cooling rates. This is critical for achieving specific microstructures and mechanical properties in sensitive materials.
Many models feature rapid cooling (quenching) capabilities using inert gas backfills, allowing for specific hardening and tempering processes to be performed in a single, controlled cycle.
Automated Process Control & Repeatability
Modern vacuum furnaces are fully automated. They use programmable logic controllers (PLCs) and sophisticated PID control systems to execute complex thermal recipes with perfect accuracy.
This computer control ensures that every cycle is identical, delivering exceptional repeatability that is essential for both high-volume production and sensitive scientific research.
Operators typically interact through a touchscreen interface, allowing them to monitor the process, adjust parameters, and log data for quality assurance and process validation.
Physical Construction and Durability
The extreme conditions inside a vacuum furnace demand robust and highly engineered construction.
Robust Materials for Extreme Conditions
The furnace chamber and internal components are built with materials exhibiting excellent heat and corrosion resistance and stable chemical properties.
This durable construction prevents furnace collapse or degradation over time, ensuring a long service life even under demanding industrial use.
Energy Efficiency and Insulation
The hot zone is heavily insulated with materials that have low thermal conductivity, such as graphite felt or ceramic fiber.
This design minimizes heat loss to the surrounding environment, improving energy efficiency and keeping the furnace's external surface temperature low for safer operation.
Understanding the Trade-offs
While powerful, vacuum furnaces are not a universal solution. Understanding their limitations is key to making an informed decision.
Higher Initial Investment
Vacuum furnaces are complex systems that involve vacuum pumps, sophisticated controls, and specialized chamber construction. This results in a significantly higher upfront cost compared to conventional atmospheric furnaces.
Slower Cycle Times
The need to pump down the chamber to the required vacuum level before heating and then backfill it for cooling adds time to the overall process. This can result in longer cycle times compared to atmospheric heat treating.
Increased Maintenance Complexity
The vacuum system, including pumps, seals, and gauges, requires regular and specialized maintenance to ensure optimal performance and prevent leaks. This adds a layer of complexity and cost to long-term operation.
Making the Right Choice for Your Application
Selecting a furnace depends entirely on your material, process, and desired outcome.
- If your primary focus is research and development: Prioritize a furnace with maximum process adaptability, precision controls, and comprehensive data logging for experimentation.
- If your primary focus is high-volume production: Emphasize automation, process repeatability, and robust construction to ensure consistent quality and high uptime.
- If your primary focus is processing sensitive materials (e.g., superalloys, medical implants): The non-oxidizing, high-purity environment is your most critical feature, making a vacuum furnace essential.
Ultimately, a vacuum furnace is the definitive choice when the integrity and properties of the material cannot be compromised.
Summary Table:
| Characteristic | Key Details |
|---|---|
| Vacuum Environment | Oxygen-free, prevents oxidation, removes impurities for high purity |
| Thermal Management | Uniform heating, precise control of rates and cooling, rapid quenching |
| Automation | PLC and PID controls for repeatability, touchscreen interface, data logging |
| Construction | Heat and corrosion-resistant materials, durable for long service life |
| Energy Efficiency | Insulated hot zone, low thermal conductivity, reduced heat loss |
| Limitations | Higher initial cost, slower cycle times, increased maintenance needs |
Elevate your material processing with KINTEK's advanced vacuum furnaces! Leveraging exceptional R&D and in-house manufacturing, we provide diverse laboratories with tailored solutions like Muffle, Tube, Rotary, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems. Our deep customization capability ensures precise alignment with your unique experimental needs—whether for R&D, high-volume production, or sensitive materials like superalloys and medical implants. Achieve contamination-free results and superior material properties. Contact us today to discuss how our high-temperature furnace solutions can optimize your processes and drive innovation!

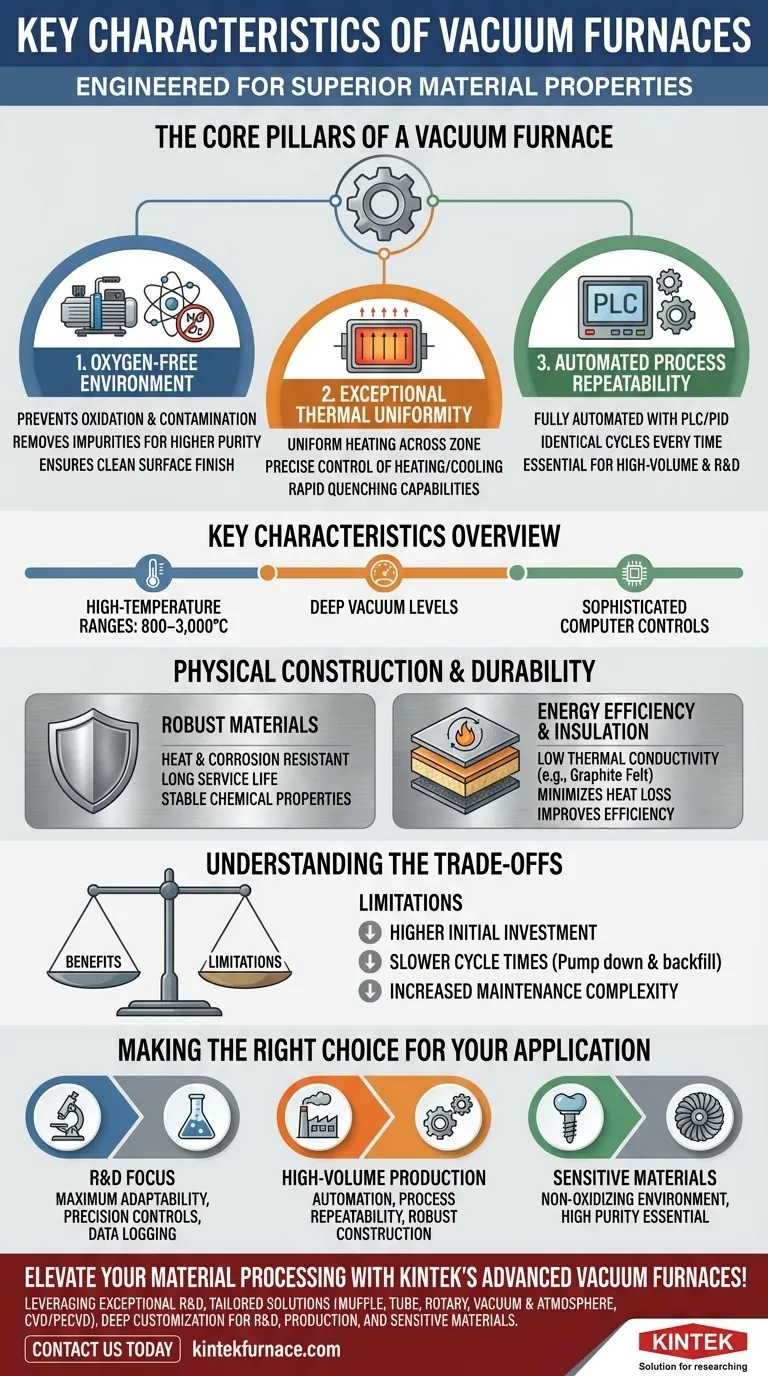

Visual Guide
