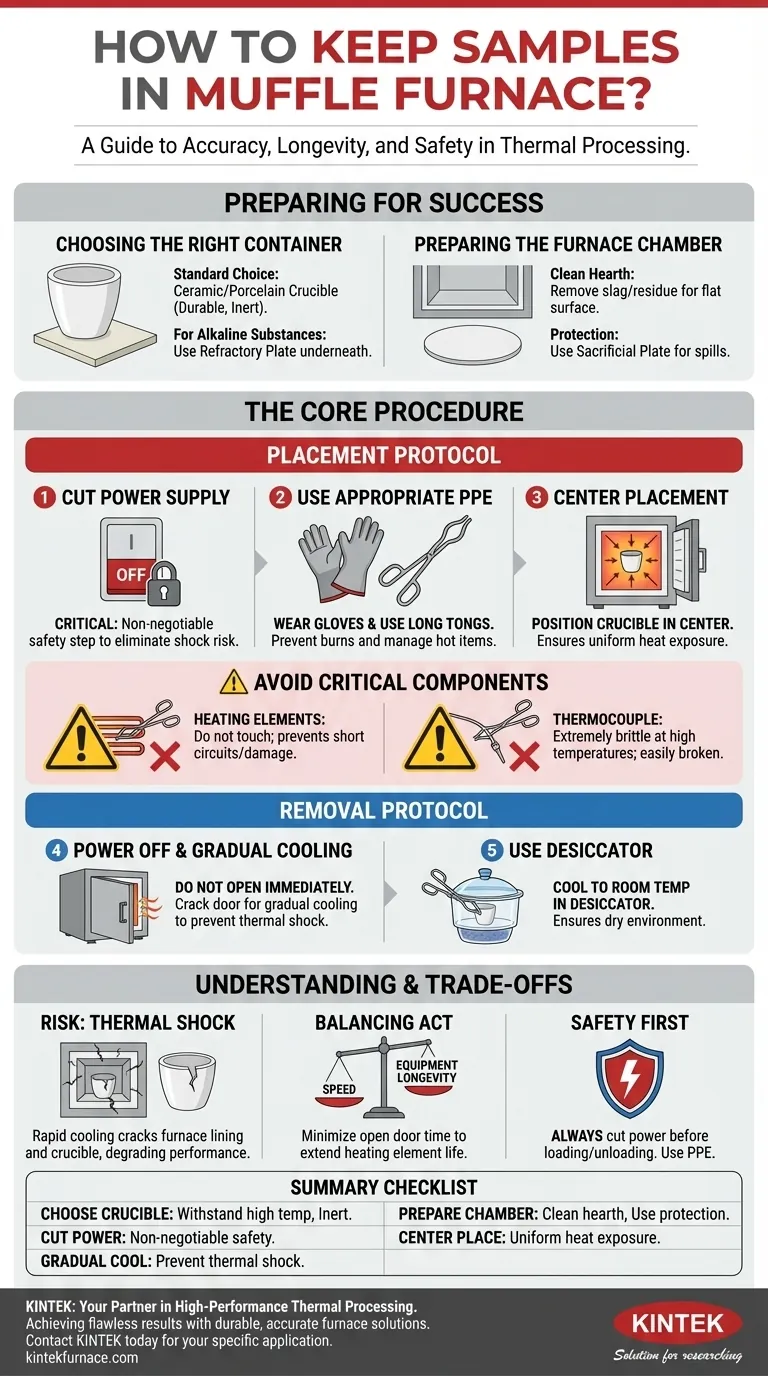

How To Keep Samples In Muffle Furnace? A Step-By-Step Guide For Safe & Accurate Results

Correctly placing a sample in a muffle furnace is a critical step that ensures both the accuracy of your results and the longevity of the equipment. The standard procedure involves putting the sample in a high-temperature crucible, shutting off the furnace power, and using long tongs to carefully position the crucible in the center of the furnace chamber, away from heating elements and the thermocouple.

The act of placing a sample is more than a simple step; it is a procedure governed by principles of thermal uniformity, material integrity, and operator safety. Mastering this process ensures your experiment is successful, your equipment is protected from damage, and you are safe from harm.

Preparing for a Successful Outcome

Before you even open the furnace door, proper preparation is essential. This stage sets the foundation for a repeatable and accurate heating process.

Choosing the Right Container

Your sample must be held in a container that can withstand the target temperature without reacting or degrading.

For most applications, a ceramic or high-temperature porcelain crucible is the standard choice. These are durable and chemically inert under most conditions.

If you are melting alkaline substances, place a refractory plate under your crucible to protect the furnace hearth from corrosive damage.

Preparing the Furnace Chamber

A clean and well-prepared furnace provides a stable environment for uniform heating.

Always ensure the furnace hearth is clean and clear of any slag, metal oxides, or residue from previous runs. This prevents cross-contamination and ensures a flat, stable surface for your crucible.

Consider placing a sacrificial asbestos board or ceramic plate at the bottom of the furnace. This protects the hearth material from accidental spills or sample boiling over, which can corrode or bond to the furnace floor.

The Core Procedure: Placement and Removal

The physical acts of loading and unloading the furnace require careful, deliberate steps to prevent injury and equipment damage.

The Placement Protocol

Always cut the power supply before loading a sample. This is a non-negotiable safety step to eliminate the risk of electric shock.

Wear appropriate heat-resistant gloves and use long crucible tongs to handle the crucible.

Open the furnace door and place the crucible directly in the center of the furnace. This position ensures the most uniform heat exposure from all sides. If placing multiple samples, arrange them neatly in the central zone.

Avoiding Critical Components

The inside of the furnace is not just an empty box. Two components are especially vulnerable.

Never allow your crucible or tongs to touch the heating elements on the furnace walls. Contact can cause a short circuit or damage the element.

Be extremely careful not to touch the thermocouple. This is the temperature sensor, which often extends into the chamber. It is very brittle at high temperatures and can easily break, leading to costly repairs.

The Removal Protocol

After the heating cycle is complete, turn off the power. Do not open the furnace door immediately.

Sudden exposure to cool room air will cause thermal shock, which can crack the furnace's refractory lining and potentially your crucible. Instead, open the door just a small crack to allow for gradual cooling.

Once the furnace has cooled significantly, use tongs to remove the crucible and place it in a desiccator to cool to room temperature in a dry environment.

Understanding the Trade-offs and Risks

Every action has a consequence. Understanding the risks associated with the process helps you make better decisions.

The Danger of Thermal Shock

The primary reason for gradual cooling is to protect the furnace's insulation. The refractory ceramic materials that line the furnace cannot handle rapid temperature changes and will crack over time, degrading the furnace's performance and lifespan.

Balancing Speed and Equipment Longevity

Keep the amount of time the furnace door is open to an absolute minimum. An open door causes a massive heat loss, forcing the heating elements to work harder and shortening their operational life. It also accelerates wear on the door's seals.

Safety is Non-Negotiable

Never compromise on safety. Cutting the power before loading or unloading is the only way to guarantee you are protected from electric shock. Burns from a hot furnace exterior or a dropped crucible are serious risks that are mitigated by using the proper personal protective equipment (PPE) like gloves and tongs.

Making the Right Choice for Your Goal

Your specific goal will determine which aspects of the procedure to prioritize.

If your primary focus is sample purity and accuracy: Ensure your crucible is properly cleaned and inert for your material, and that the furnace chamber is free of any potential contaminants from previous runs.
If your primary focus is equipment longevity: Prioritize gradual cooling by cracking the door, and minimize the time the door is fully open during loading and unloading.
If your primary focus is personal safety: Always de-energize the furnace before reaching inside, and consistently use heat-resistant gloves and long tongs.

Following these principles transforms a routine task into a controlled, repeatable, and safe scientific procedure.

Summary Table:

Key Step	Purpose	Critical Consideration
Choose Correct Crucible	Withstand high temperatures, prevent reaction	Use ceramic/porcelain; refractory plate for alkaline substances
Prepare Furnace Chamber	Ensure uniform heating, prevent contamination	Clean hearth; use sacrificial plate for spill protection
Cut Power & Use Tongs	Operator safety, prevent electric shock	Non-negotiable safety step before loading/unloading
Center Placement	Achieve uniform heat exposure	Keep away from heating elements and thermocouple
Gradual Cooling	Prevent thermal shock to furnace & sample	Crack door open after cycle; do not open immediately
