Vacuum hot press furnaces are designed to process a specialized range of high-performance materials that are difficult to consolidate using conventional methods. The most common categories include advanced ceramics like silicon carbide and silicon nitride, reactive metals such as titanium and its alloys, and various composite materials that combine the properties of different substances.
The core purpose of a vacuum hot press is to simultaneously apply high temperature and mechanical pressure in an oxygen-free environment. This process, known as sintering or diffusion bonding, is essential for creating fully dense, non-porous components from powders or dissimilar materials that cannot be melted or formed effectively otherwise.
Why These Materials Require Vacuum Hot Pressing
The combination of heat, pressure, and vacuum creates a unique environment that fundamentally alters material properties. This process is not for everyday materials but for those demanding superior performance characteristics.
The Goal: Achieving Full Density
Sintering is the process of compacting and forming a solid mass of material by heat and pressure without melting it to the point of liquefaction.
By applying mechanical pressure during heating, the furnace forces powder particles together, eliminating the voids or pores between them. This results in a final product with significantly higher density, strength, and durability.
The Role of the Vacuum
Many advanced materials are highly reactive with oxygen, especially at elevated temperatures. The vacuum environment is critical for preventing oxidation and contamination.
This is particularly important for materials like titanium, which readily forms brittle oxides that compromise its structural integrity. The vacuum ensures the purity of the final product.
A Breakdown of Key Material Categories
Different materials are chosen for vacuum hot pressing based on their inherent properties and the desired outcome of the consolidation process.
Advanced Technical Ceramics
Materials like silicon carbide (SiC) and silicon nitride (SiN) are extremely hard and resistant to heat, but they are also brittle.
Hot pressing is one of the most effective ways to fuse ceramic powders into a solid, dense part, minimizing internal flaws and maximizing strength for applications like industrial tooling and armor.
Reactive and High-Purity Metals
Metals such as titanium (Ti), molybdenum (Mo), and certain complex steel alloys are processed this way to preserve their purity.
The vacuum prevents reactions with atmospheric gases, while the pressure helps create a uniform, dense microstructure. This is critical for high-stress applications like automotive gears and aerospace components.
Composite Materials
Vacuum hot pressing excels at bonding dissimilar materials. This includes metal-ceramic composites and carbon-carbon composites.
The pressure ensures intimate contact between the different material layers or particles, allowing them to bond at a microscopic level. This creates a new material with a tailored combination of properties, such as the hardness of a ceramic and the toughness of a metal.
Specialized Optical Materials
Certain high-performance optical components are made from materials like zinc sulfide (ZnS) and zinc selenide (ZnSe).
These materials must have exceptional purity and structural perfection to function as infrared windows or lenses in harsh environments. Hot pressing creates a solid, transparent material with outstanding strength and surface hardness.
Understanding the Trade-offs
While powerful, vacuum hot pressing is a specialized technique with specific limitations that make it unsuitable for all applications.
Process Complexity and Cost
Vacuum hot press furnaces are expensive to acquire and operate. The process requires precise control over temperature, pressure, and vacuum levels, demanding significant technical expertise.
Slower Cycle Times
Compared to casting or forging, hot pressing is a relatively slow, batch-based process. This makes it better suited for high-value, low-volume production rather than mass manufacturing.
Limitations on Component Geometry
The need to apply uniform mechanical pressure means that parts must typically be made in a die. This restricts the complexity of shapes that can be produced, favoring simpler geometries like discs, blocks, or cylinders.
Making the Right Choice for Your Goal
The decision to use a vacuum hot press depends entirely on the material you need to create and its intended application.
- If your primary focus is extreme hardness and wear resistance: You should consider advanced ceramics (SiC, SiN) or hard metal alloys, which require this process for full densification.
- If your primary focus is a high strength-to-weight ratio with material purity: Reactive metals like titanium or advanced carbon composites are the ideal candidates for this method.
- If your primary focus is creating a novel material from dissimilar substances: This process is unmatched for producing metal-ceramic or other advanced composites through diffusion bonding.
Ultimately, vacuum hot pressing empowers the creation of advanced materials that are foundational to modern technology.
Summary Table:
| Material Category | Examples | Key Benefits |
|---|---|---|
| Advanced Ceramics | Silicon Carbide (SiC), Silicon Nitride (SiN) | High hardness, wear resistance, and strength |
| Reactive Metals | Titanium (Ti), Molybdenum (Mo) | High strength-to-weight ratio, purity, and durability |
| Composite Materials | Metal-Ceramic Composites, Carbon-Carbon Composites | Tailored properties combining hardness and toughness |
| Specialized Optical Materials | Zinc Sulfide (ZnS), Zinc Selenide (ZnSe) | Exceptional purity, transparency, and structural perfection |
Ready to enhance your material processing with precision and reliability? At KINTEK, we leverage exceptional R&D and in-house manufacturing to provide advanced high-temperature furnace solutions tailored for your unique needs. Our product line includes Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems, all supported by strong deep customization capabilities. Whether you're working with ceramics, metals, or composites, our vacuum hot press furnaces can help you achieve full density and superior performance. Contact us today to discuss how we can support your laboratory's goals and drive innovation in your projects!

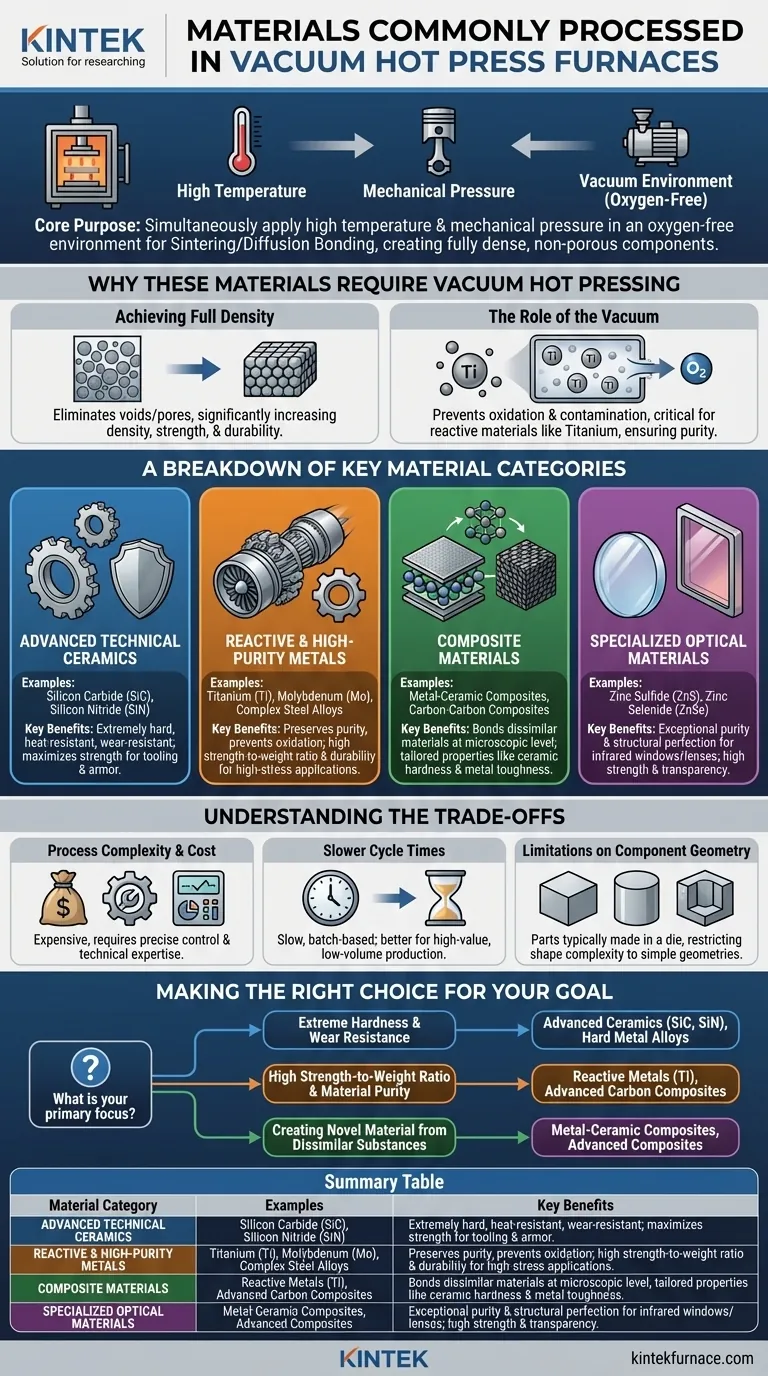

Visual Guide
