The short answer is this: Low vacuum furnaces are used for less sensitive materials like common steels, while high vacuum furnaces are required for reactive, high-purity materials such as titanium and molybdenum. The choice depends entirely on how susceptible your material is to contamination from atmospheric gases at high temperatures.
The decision between a low and high vacuum furnace is not about the furnace itself, but about the material's integrity. You are choosing an environment—balancing the need for atmospheric purity against operational cost and complexity.
The Fundamental Role of Vacuum in Heat Treatment
To select the right furnace, you must first understand why a vacuum is necessary. At high temperatures, materials become chemically active and prone to reacting with gases in the air.
Preventing Oxidation and Contamination
The primary purpose of a vacuum is to remove reactive gases, particularly oxygen and nitrogen. When heated, most metals will readily form oxides on their surface, which can compromise their structural integrity, mechanical properties, and finish.
By removing the atmosphere, a vacuum furnace creates a controlled environment, ensuring the heat treatment process modifies the material as intended without introducing unwanted chemical changes.
Protecting Material Purity
For applications in aerospace, medical, or electronics, even microscopic contamination can lead to component failure. A vacuum environment is critical for processing high-purity materials, preventing them from absorbing impurities from the air during treatment.
Profiling Low Vacuum Furnaces
Low vacuum (or "rough vacuum") furnaces operate at a reduced but still significant atmospheric pressure. They offer a practical balance of performance and cost for many common industrial applications.
Compatible Materials: Less-Sensitive Metals
These furnaces are ideal for materials that are less reactive at high temperatures. Steel is the most common example. While steel will oxidize, the level of vacuum in these furnaces is sufficient for many standard hardening, annealing, and brazing processes.
Key Characteristics
Low vacuum furnaces are generally defined by their lower initial and operational costs. They are simpler to operate, require less complex pumping systems, and have faster cycle times.
Temperature Limitations
A key operational constraint is their maximum temperature, which typically does not exceed 1700°C.
Profiling High Vacuum Furnaces
High vacuum furnaces create a much purer environment by removing vastly more atmospheric molecules. This is essential for processing advanced or highly sensitive materials.
Compatible Materials: Reactive & High-Purity
These furnaces are non-negotiable for materials that react aggressively with trace amounts of oxygen or nitrogen. This category includes titanium, molybdenum, refractory metals, and superalloys.
High vacuum is also mandatory for processes like sintering and brazing where surface purity is critical for a successful metallurgical bond.
Key Characteristics
High vacuum systems enable the highest levels of purity and performance. This capability comes with higher equipment and maintenance costs, more complex pumping systems, and longer processing cycles.
Higher Temperature Capabilities
These furnaces are capable of reaching much higher temperatures, often up to 2200°C, making them necessary for processing materials with very high melting points.
Understanding the Trade-offs
Choosing a furnace is an engineering decision based on a clear set of trade-offs. Misunderstanding these can lead to unnecessary expense or, worse, failed parts.
Cost vs. Required Purity
The central trade-off is cost versus purity. A high vacuum furnace provides a superior environment but at a significant premium. Using one for a simple steel part is inefficient and costly. Conversely, using a low vacuum furnace for titanium will ruin the material.
Process Time vs. Complexity
High vacuum systems require more powerful and sophisticated pumps (e.g., diffusion or turbomolecular pumps) that take longer to achieve the target vacuum level. This extends the overall process time compared to simpler, faster low vacuum systems.
Temperature vs. Reactivity
Do not assume high temperature automatically requires high vacuum. A material's chemical reactivity is the deciding factor. Some materials may require a high vacuum environment even at temperatures well within a low vacuum furnace's range simply because they are so sensitive to oxidation.
Making the Right Choice for Your Process
Base your decision on the material's specific requirements and your process goals.
- If your primary focus is cost-effective treatment of common steels: A low vacuum furnace provides the necessary protection from gross oxidation and is the most practical and economical choice.
- If you are working with reactive materials like titanium or superalloys: A high vacuum furnace is the only option to prevent catastrophic contamination and preserve the material's properties.
- If your process requires absolute material purity for medical or aerospace applications: You must use a high vacuum furnace to guarantee a contaminant-free environment.
- If your process requires temperatures above 1700°C: A high vacuum furnace is required, as low vacuum systems cannot reach these levels.
Ultimately, selecting the right furnace is about matching the atmospheric purity to your material's specific chemical needs to guarantee a successful outcome.
Summary Table:
| Vacuum Type | Compatible Materials | Key Characteristics | Temperature Range |
|---|---|---|---|
| Low Vacuum | Common steels, less sensitive metals | Lower cost, simpler operation, faster cycles | Up to 1700°C |
| High Vacuum | Titanium, molybdenum, superalloys, high-purity materials | Higher purity, higher cost, complex systems | Up to 2200°C |
Struggling to select the right furnace for your materials? At KINTEK, we leverage exceptional R&D and in-house manufacturing to provide advanced high-temperature furnace solutions tailored to your needs. Our product line includes Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems, all backed by strong deep customization capabilities to precisely meet your unique experimental requirements. Ensure optimal performance and purity—contact us today to discuss how we can enhance your lab's efficiency and results!

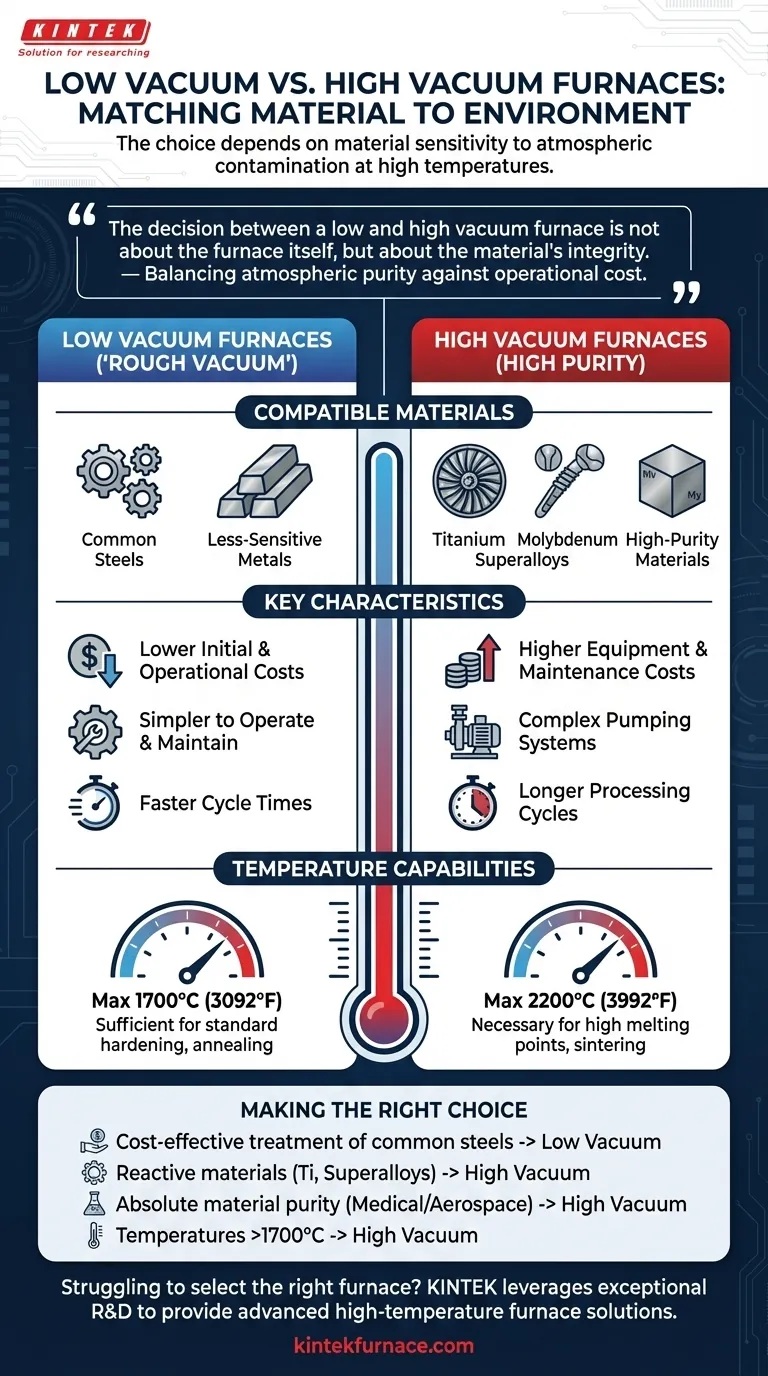

Visual Guide
