The short answer is there is no single material used in a high-temperature furnace; instead, it is a system of specialized materials chosen for specific roles. The most critical components rely on materials like Tungsten for heating elements and advanced ceramics such as Alumina or Zirconia for process tubes, while high-temperature resistant steels are used for containment and structural frames.
A high-temperature furnace is not built from one material, but from an assembly of components where each material is precisely selected based on its function, maximum operating temperature, and interaction with the furnace's atmosphere and contents.
The Anatomy of a High-Temperature Furnace
To understand material selection, you must think of the furnace in terms of its distinct functional zones. The materials for the external frame are vastly different from those at the core, which must endure extreme heat.
Heating Elements: The Engine of the Furnace
The heating elements are responsible for generating the intense temperatures. The material choice here is non-negotiable and dictated by the desired operating temperature.
For applications exceeding 1600°C, Tungsten is the premier choice. Its melting point of 3422°C provides a significant performance margin, making it a reliable and durable element for extreme heat generation.
Process Tubes & Chambers: Containing the Reaction
Process tubes or internal chambers contain the material being heated and must withstand direct thermal stress while often maintaining a specific atmosphere.
Alumina (Aluminum Oxide) is a common ceramic used for furnace tubes due to its excellent high-temperature resistance. It provides a clean, stable environment for many processes.
For even higher temperatures, around 2000°C (3600°F), Zirconia (Zirconium Oxide) tubes are required. They offer superior thermal stability at temperatures where Alumina would fail.
Other materials like graphite can also be used, prized for excellent thermal conductivity and stability, particularly in vacuum or inert atmospheres.
Retorts and Containment: Ensuring a Controlled Atmosphere
Many processes require a specific, controlled atmosphere, such as a vacuum or an inert gas. This necessitates a gas-tight vessel inside the furnace, known as a retort.
These retorts are typically constructed from high-temperature resistant steel alloys. This material ensures durability and prevents gas leakage, protecting the integrity of the process.
Structural Frame: The Outer Shell
The outer shell provides the furnace's structural integrity and houses the insulation and internal components.
This frame is generally made from welded angle steel and high-quality steel plate. These materials are not exposed to the internal peak temperatures and are selected for strength, rigidity, and cost-effectiveness.
Understanding the Trade-offs and Limitations
Selecting the right material involves balancing performance, cost, and operational constraints. No material is perfect for all situations.
The Challenge of Thermal Shock
Ceramic components like Alumina tubes are exceptionally strong at high temperatures but can be brittle and are susceptible to thermal shock. Rapid temperature changes can cause them to crack.
As a rule, smaller-diameter ceramic tubes have better resistance to thermal shock than larger ones. Careful control of heating and cooling rates is critical when working with them.
Temperature vs. Cost
There is a direct correlation between a material's temperature rating and its cost. Tungsten and Zirconia offer incredible performance but are significantly more expensive than Alumina or specialized steels.
Over-specifying a material is an unnecessary expense. The goal is to choose the material that safely and reliably meets the required operating temperature, not simply the one with the highest melting point.
Atmosphere and Material Compatibility
The furnace atmosphere dictates material choices. For example, high-vacuum furnaces are often used to process reactive materials like titanium (Ti) and molybdenum (Mo).
The internal furnace components must be stable and not react with the process materials or gases at high temperatures to avoid contamination and ensure part quality.
Making the Right Choice for Your Application
Your material selection must be driven by your specific operational goals. The furnace is a system, and each part must be chosen to support the primary function.
- If your primary focus is extreme temperatures (>1600°C): Your heating elements must be Tungsten, and your process tubes should be Zirconia for maximum stability.
- If your primary focus is general high-temperature work (<1600°C): Alumina ceramic tubes provide a robust and cost-effective solution, provided you manage heating and cooling cycles carefully.
- If your primary focus is a controlled, gas-tight atmosphere: You will need a retort made from a high-temperature resistant steel alloy to ensure containment.
- If your primary focus is structural stability and support: The external frame will be built from standard steel plate and angle steel, which offers the best balance of strength and cost.
Ultimately, engineering a high-temperature furnace is an exercise in selecting the right material for the right job.
Summary Table:
| Component | Key Material(s) | Primary Function & Temperature Range |
|---|---|---|
| Heating Elements | Tungsten | Extreme heat generation (>1600°C) |
| Process Tubes | Alumina, Zirconia | Contain reaction, withstand thermal stress (up to 2000°C) |
| Retorts/Containment | High-Temp Steel Alloys | Ensure gas-tight, controlled atmosphere |
| Structural Frame | Steel Plate & Angle Iron | Provide external structural support and rigidity |
Need a High-Temperature Furnace Built for Your Specific Application?
Leveraging exceptional R&D and in-house manufacturing, KINTEK provides diverse laboratories with advanced high-temperature furnace solutions. Our product line, including Muffle, Tube, Rotary Furnaces, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems, is complemented by our strong deep customization capability to precisely meet your unique experimental requirements, material compatibility, and temperature needs.
Let us help you select the perfect materials and design for your furnace system. Contact our experts today for a consultation!

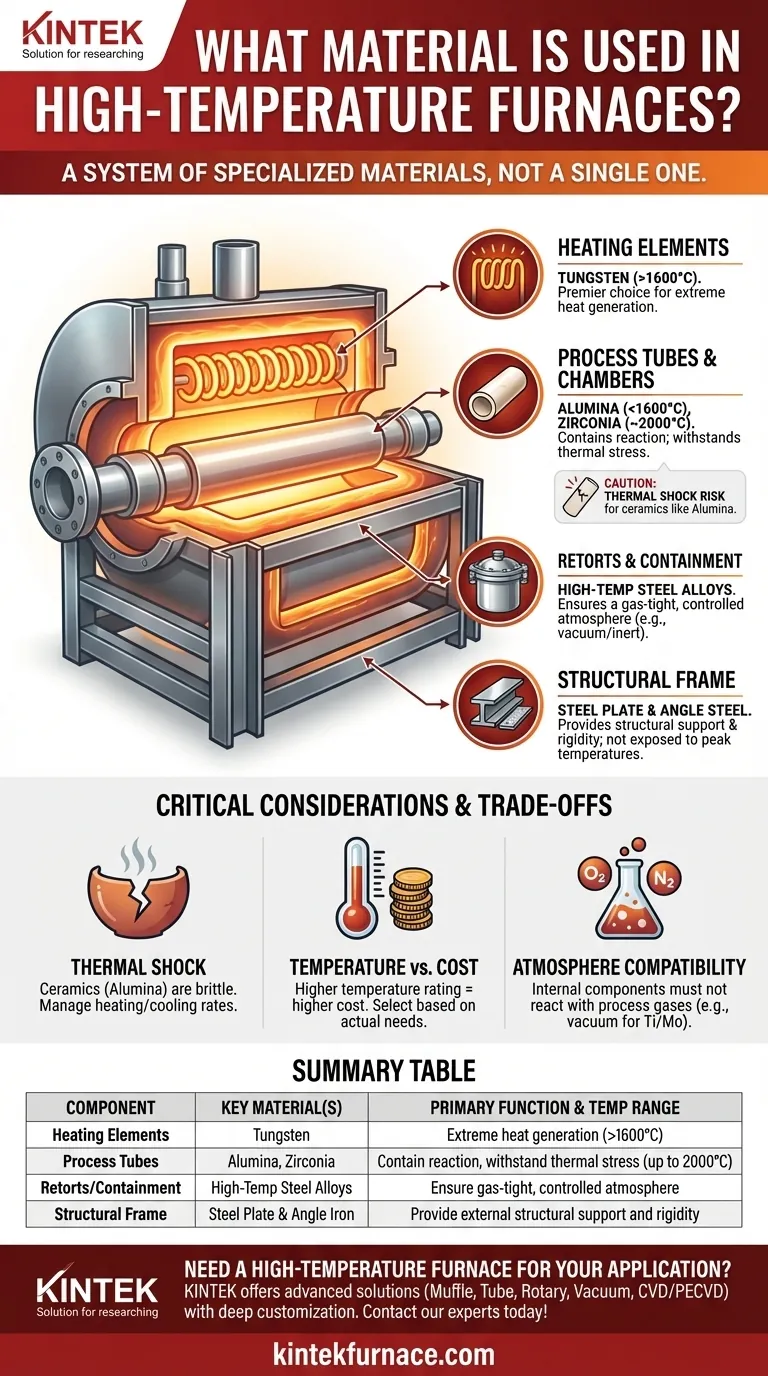

Visual Guide
