While valued for their transparency and chemical inertness, the primary disadvantages of quartz tube furnaces are their physical fragility, a strict upper temperature limit, and sensitivity to specific chemical environments. These factors require careful handling and limit their use in applications demanding extreme temperatures or involving certain reactive materials.
A quartz tube furnace represents a trade-off. You gain unparalleled visual access and high purity at a reasonable cost, but you sacrifice the mechanical ruggedness and extreme high-temperature stability found in more expensive ceramic alternatives like corundum.
Physical and Structural Limitations
The most significant drawbacks of quartz tubes are rooted in their physical properties as a form of glass.
Low Mechanical Strength and Brittleness
Quartz is a brittle material. This means it has low tolerance for mechanical shock or impact and must be handled with extreme care to prevent cracking or shattering.
Clamping fixtures must not be overtightened, and any accidental contact with hard objects during setup or operation can lead to immediate failure.
High-Temperature Deformation (Softening)
While quartz can operate at temperatures exceeding 1000°C, it begins to soften as it approaches higher temperatures. Its structural integrity significantly weakens above 1200°C.
This softening can cause the tube to deform under vacuum or even its own weight, compromising the seal and affecting the accuracy of experiments. For reliable, long-term use, continuous operation is typically limited to below 1300°C.
Thermal Shock Susceptibility
Rapid and uneven temperature changes can create internal stress within the quartz, leading to fractures. Heating and cooling rates must be carefully controlled to prevent thermal shock, especially in larger-diameter tubes.
Chemical and Environmental Constraints
Beyond physical limits, the chemical nature of quartz (silicon dioxide) restricts its use in certain process environments.
Sensitivity to Specific Atmospheres
Quartz tubes are not universally inert. They can be damaged by strong reducing environments at high temperatures, which can impact the material's performance and lifespan.
Furthermore, they are susceptible to attack from hydrofluoric acid and strong alkaline solutions, making them unsuitable for processes involving these chemicals.
Risk of Devitrification
When held at high temperatures for extended periods, the amorphous (glassy) structure of quartz can begin to crystallize into a form called cristobalite. This process, known as devitrification, makes the tube opaque and significantly increases its brittleness.
This degradation ultimately limits the useful lifespan of the tube in continuous high-temperature applications.
Understanding the Trade-offs: Quartz vs. Alternatives
Choosing a furnace tube material always involves balancing competing factors.
Transparency vs. Opacity
The key advantage of quartz is its transparency, which allows for direct, real-time observation of the sample. This is impossible with opaque ceramic tubes like corundum (alumina), which require alternative monitoring methods.
Cost vs. High-Temperature Durability
Quartz tubes are relatively low-cost and widely available. In contrast, corundum tubes are significantly more expensive but can operate reliably at much higher temperatures (up to 1700°C or more) without softening.
Versatility vs. Specialized Heating
Standard resistance furnaces using quartz tubes are highly versatile. This contrasts with systems like induction furnaces, which require electrically conductive metal tubes and can introduce electromagnetic interference, limiting their experimental compatibility.
Making the Right Choice for Your Application
Selecting the correct furnace tube depends entirely on your experimental or process goals.
- If your primary focus is visual observation and moderate temperatures (below 1200°C): Quartz is the ideal, cost-effective choice for observing processes like pyrolysis or crystal growth.
- If your primary focus is operating at very high temperatures (above 1300°C) or in harsh alkaline environments: A corundum (alumina) tube is necessary despite its higher cost and opacity.
- If your primary focus is budget and general-purpose lab work: A quartz tube furnace offers the best balance of performance and affordability for a wide range of material heat treatments and chemical reactions.
Understanding these inherent limitations allows you to select the right tool, ensuring the integrity and success of your high-temperature processes.
Summary Table:
| Disadvantage | Description |
|---|---|
| Physical Fragility | Brittle nature requires careful handling to avoid cracking or shattering. |
| Temperature Limit | Softens above 1200°C, limiting continuous use to below 1300°C. |
| Chemical Sensitivity | Vulnerable to strong reducing atmospheres, hydrofluoric acid, and alkalis. |
| Thermal Shock Risk | Prone to fractures from rapid temperature changes, necessitating controlled heating/cooling. |
| Devitrification | Crystallization at high temperatures increases brittleness and reduces lifespan. |
Need a furnace that overcomes quartz limitations? KINTEK provides advanced high-temperature solutions tailored to your needs. Leveraging exceptional R&D and in-house manufacturing, we offer Muffle, Tube, Rotary, Vacuum & Atmosphere Furnaces, and CVD/PECVD Systems with deep customization for precise experimental requirements. Contact us today to enhance your lab's efficiency and durability!

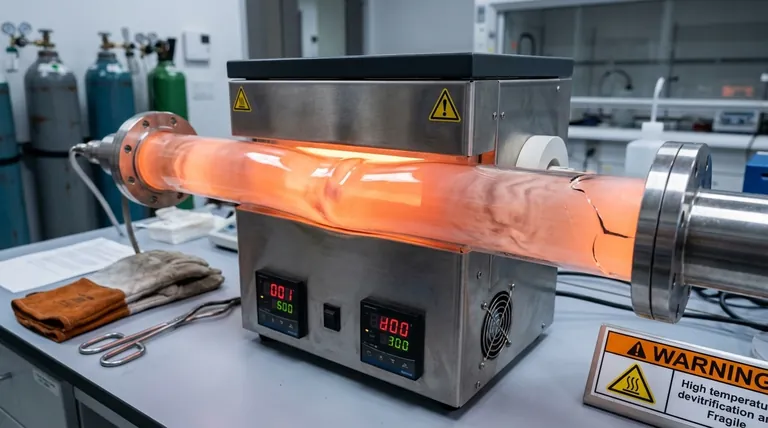

Visual Guide
