At its core, Plasma-Enhanced Chemical Vapor Deposition (PECVD) achieves high deposition rates at low temperatures by fundamentally changing the energy source for the chemical reaction. Instead of relying on high heat to break down precursor gases, PECVD uses an electric field to generate a plasma, which provides the necessary energy through highly reactive ions and radicals, allowing the substrate to remain at a much lower temperature.
The key insight is that PECVD decouples the reaction energy from the substrate's temperature. This allows you to independently control the deposition rate through plasma parameters while keeping the temperature low to protect the substrate.
The Core Mechanism: Plasma-Driven Deposition
Traditional Chemical Vapor Deposition (CVD) is like cooking on a stovetop; you need to turn up the heat to initiate the chemical reactions required to deposit a film. PECVD is fundamentally different.
Replacing Thermal Energy with Plasma
In a conventional CVD process, precursor gases must be heated to very high temperatures (often >600°C) to gain enough thermal energy to break their chemical bonds and react on the substrate surface.
PECVD creates a plasma—an ionized gas containing a mix of electrons, ions, and neutral radical species. These components are highly energetic and chemically reactive, capable of breaking down precursor gases at much lower bulk gas and substrate temperatures.
The Role of High-Density Plasma
To achieve high deposition rates, the goal is to create a high density of these reactive species. This is accomplished using advanced reactor designs.
Methods like inductive coils, Electron Cyclotron Resonance (ECR), or helicon wave antennas generate extremely dense plasmas. This high concentration of reactants dramatically accelerates the film formation process without requiring a corresponding increase in temperature.
Key Levers for Increasing Deposition Rate
Once the plasma is established, two primary parameters are used to control how fast the film grows.
Increasing Plasma Power
Increasing the radio frequency (RF) or microwave power applied to the chamber directly boosts the energy within the plasma. This enhances the dissociation of precursor gases, creating a higher concentration of the active species needed for deposition and thus increasing the rate.
Optimizing Precursor Gas Flow
The deposition rate is also dependent on the supply of raw material. Increasing the flow rate of the precursor gases into the chamber ensures that a higher concentration of reactants is available near the substrate surface, preventing the process from becoming "supply-limited."
Understanding the Trade-offs
While PECVD offers significant advantages, it's crucial to understand the balance between its parameters. The primary benefit is the ability to deposit films on temperature-sensitive materials that would be damaged by high-heat processes.
Benefit: Reduced Thermal Stress
The lower operating temperature of PECVD is its single greatest advantage. It prevents thermal stress, warping, or damage to delicate substrates like plastics, or complex semiconductor devices with previously fabricated layers.
Benefit: Improved Film Quality and Versatility
The energetic but controlled nature of plasma can lead to denser, purer films compared to some low-temperature alternatives. This process is also highly versatile, enabling the deposition of a wide range of materials, including oxides, nitrides, and even hybrid organic-inorganic structures.
The Pitfall: Rate vs. Quality
Pushing for the absolute maximum deposition rate by excessively increasing power or gas flow can be counterproductive. Overly high power can cause ion bombardment damage to the growing film, while excessive flow can lead to gas-phase reactions that create particles, resulting in defects and poor film quality. The goal is to find an optimized window, not a maximum value.
Making the Right Choice for Your Process
Optimizing a PECVD process involves balancing rate, temperature, and final film properties according to your primary objective.
- If your primary focus is maximizing manufacturing throughput: Carefully increase plasma power and gas flow in tandem, while continuously monitoring film stress, uniformity, and defect density to avoid compromising quality.
- If your primary focus is depositing on a highly sensitive substrate: Prioritize low temperature and consider using a high-density plasma source (like ECR) that can provide a reasonable rate with low-energy ion bombardment.
- If your primary focus is achieving the highest possible film quality: Operate at a more moderate deposition rate, methodically tuning power and pressure to find the "sweet spot" that minimizes film stress and defects.
Mastering PECVD is about understanding and controlling this interplay between plasma energy, material supply, and temperature.
Summary Table:
| Key Factor | Role in High Rate / Low Temp PECVD |
|---|---|
| Plasma Energy | Replaces thermal energy; breaks down precursor gases at low substrate temperatures. |
| High-Density Plasma | Increases concentration of reactive species (ions, radicals) to accelerate deposition. |
| Plasma Power | Higher RF/microwave power increases dissociation of gases, boosting deposition rate. |
| Precursor Gas Flow | Optimized flow ensures sufficient reactant supply to prevent rate limitations. |
| Trade-off | Balancing rate with film quality is critical to avoid defects from excessive power/flow. |
Ready to optimize your PECVD process for high deposition rates and low temperatures?
At KINTEK, we leverage our exceptional R&D and in-house manufacturing to provide advanced PECVD system solutions. Whether you need to maximize throughput on a production line, protect delicate substrates, or achieve the highest film quality, our deep customization capabilities allow us to tailor a system to your unique experimental and manufacturing requirements.
Contact our experts today to discuss how our PECVD systems can enhance your lab's capabilities and accelerate your research.

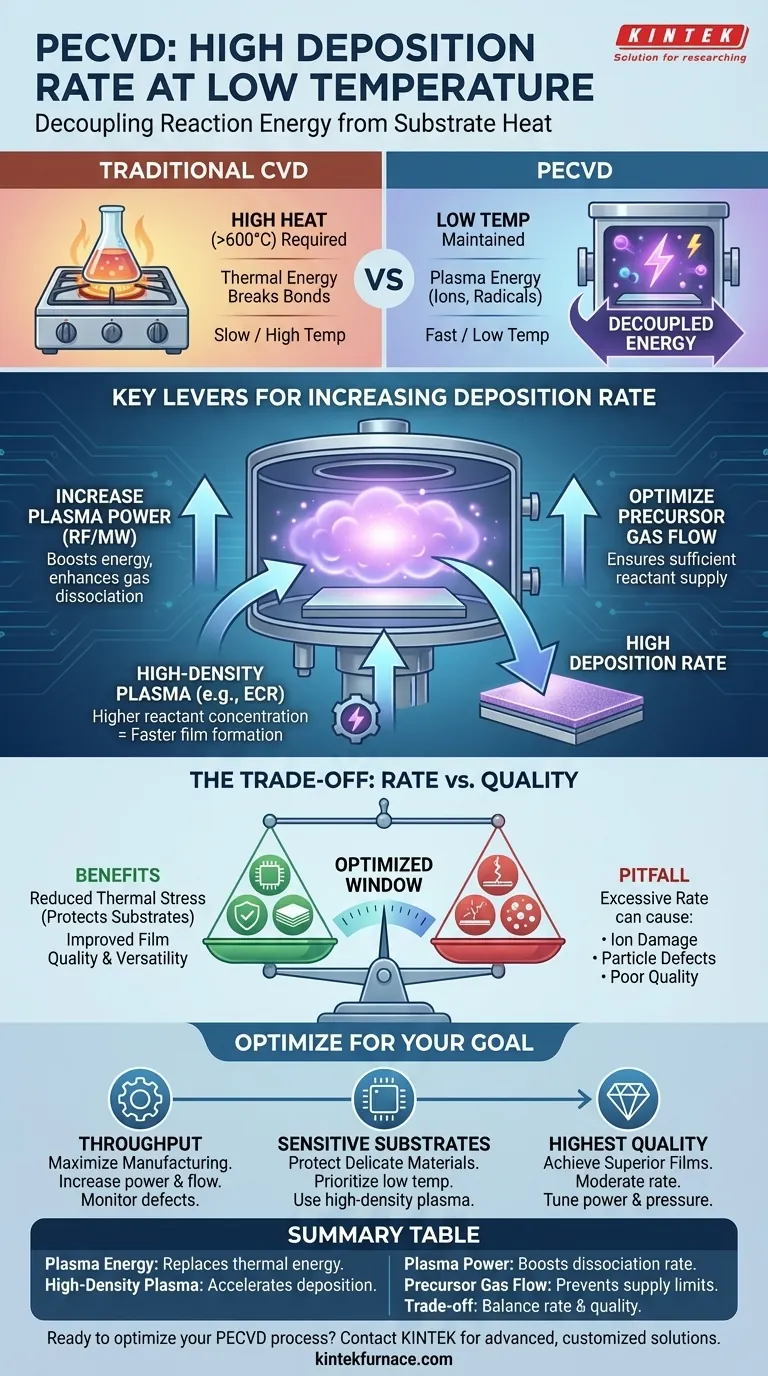

Visual Guide
