Proper maintenance of vacuum furnace heating elements is a disciplined process combining routine visual checks with scheduled electrical testing. The core activities include visually inspecting elements and their connections after every cycle, and performing a monthly resistance-to-ground check to assess insulation integrity. These steps are not merely preventative; they are predictive measures to ensure furnace reliability and prevent catastrophic failure.
The goal of heating element maintenance is to shift from a reactive "fix-it-when-it-breaks" model to a proactive, predictive strategy. Consistent monitoring allows you to identify degradation long before it leads to costly downtime, damaged workloads, or safety hazards.
The Core Maintenance Protocol
A robust maintenance plan is built on a simple, repeatable schedule. Each step is designed to catch specific failure modes before they escalate.
Visual Inspection After Every Cycle
After each load is complete and the furnace has cooled, a thorough visual inspection is your first line of defense. Look for any signs of physical stress or damage.
This includes checking for warping, cracking, or discoloration on the element surfaces. These are often the earliest indicators of overheating, material fatigue, or chemical attack from contaminants.
Verifying Electrical Connections
At the same time as the visual check, confirm that all electrical connections to the elements are tight. Loose connections create high-resistance points.
These "hot spots" lead to inefficient power delivery, localized overheating, and can cause arcing that will damage both the connection and the element itself.
Monthly Resistance-to-Ground Checks
The most critical electrical test is the monthly resistance-to-ground measurement. This test verifies the integrity of the element's insulation and its isolation from the furnace chamber.
An acceptable reading is typically in the 90-100 ohm range. This indicates that the insulation is effective and there is no conductive path to ground. A reading that trends downward or falls below 10 ohms signals an imminent failure, often due to carbon buildup or insulation breakdown.
The Primary Threat: Contamination
While operational stress is a factor, contamination is a pervasive and often misunderstood cause of premature element failure.
How Contaminants Degrade Elements
Materials like silicon carbide (SiC) and molybdenum disilicide (MoSi2) are sensitive to foreign substances. Binders, oils, fingerprints, or even certain paints on processed parts can vaporize and attack the element's protective surface.
For this reason, parts with coatings like colored zirconia must be thoroughly dried before being loaded into the furnace. This simple step prevents harmful outgassing that can drastically shorten element lifespan.
The Special Case of Carburizing
Furnaces used for low-pressure vacuum carburizing (LPVC) face a unique challenge. The carbon-rich atmosphere can lead to the buildup of conductive soot on insulators.
This soot creates a pathway for electricity to leak to ground, causing the resistance-to-ground value to drop. This is why monthly checks are especially critical for these applications, as a short circuit can cause catastrophic damage.
Understanding the Common Pitfalls
Avoiding common mistakes in maintenance philosophy is as important as performing the checks themselves.
The "Run to Failure" Mistake
Treating heating elements as disposable components that are only replaced upon failure is an expensive and risky strategy. The cost of unplanned downtime, a scrapped high-value load, and potential cascading damage to other furnace systems far outweighs the cost of proactive maintenance.
Overlooking Subtle Warning Signs
A small crack, minor discoloration, or a slight dip in resistance readings should not be dismissed. These are leading indicators of a developing problem. Documenting and tracking these small changes over time is the key to predicting an element's remaining useful life.
Inconsistent Record Keeping
Effective maintenance depends on data. Without a logbook to record inspection dates, visual observations, and resistance measurements for each element, you lose the ability to spot trends. A simple trend of decreasing resistance over several months is a clear signal to schedule a replacement during planned downtime.
Making the Right Choice for Your Goal
Your maintenance strategy should align with your operational priorities. Use these guidelines to focus your efforts.
- If your primary focus is maximizing uptime: The visual inspection and connection check after every single cycle are non-negotiable. This is the fastest way to catch physical damage before it causes an in-process failure.
- If your primary focus is process consistency: Pay close attention to contamination control and stable resistance readings. Consistent element performance ensures repeatable and uniform heating for every load.
- If your primary focus is safety and cost control: The monthly resistance-to-ground check is your most critical tool. It is the definitive way to prevent major electrical failures that pose safety risks and lead to the most expensive repairs.
Ultimately, disciplined maintenance transforms your furnace from a potential liability into a predictable and highly reliable asset.
Summary Table:
| Maintenance Activity | Frequency | Key Purpose |
|---|---|---|
| Visual Inspection | After every cycle | Detect warping, cracking, discoloration |
| Check Electrical Connections | After every cycle | Prevent hot spots and arcing |
| Resistance-to-Ground Test | Monthly | Assess insulation integrity, prevent failure |
Upgrade your lab's efficiency and safety with KINTEK's advanced furnace solutions! Leveraging exceptional R&D and in-house manufacturing, we provide diverse laboratories with high-temperature furnaces like Muffle, Tube, Rotary, Vacuum & Atmosphere, and CVD/PECVD Systems. Our deep customization capability ensures precise fit for your unique experimental needs. Contact us today to discuss how our reliable heating elements and maintenance support can prevent downtime and enhance your processes!

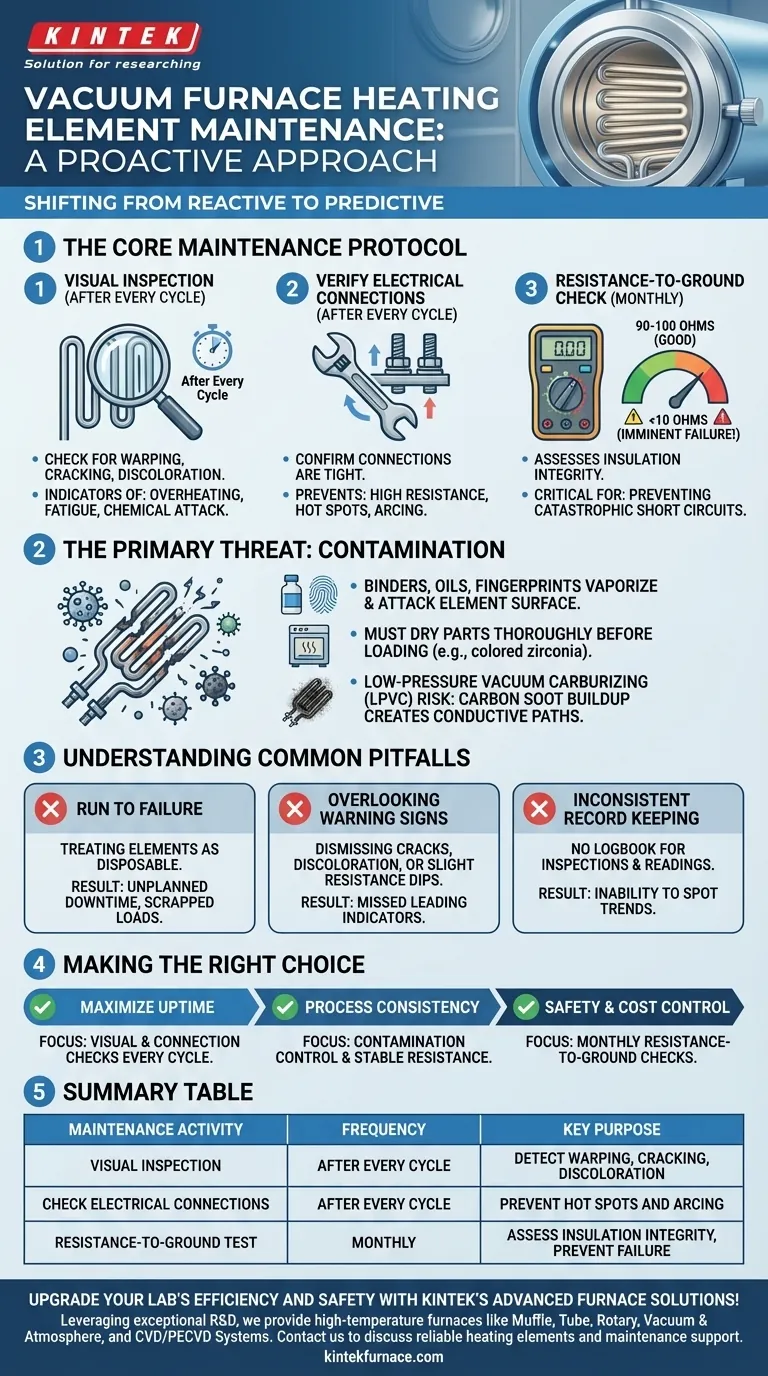

Visual Guide
