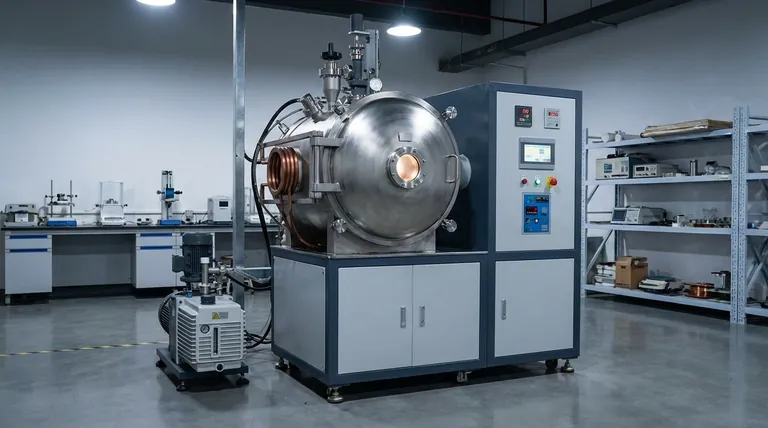

A vacuum induction furnace (VIM) is a specialized melting system that combines electromagnetic induction heating with a vacuum environment to produce high-purity metals and alloys. It works by creating a vacuum to eliminate oxygen and contaminants, then using induction coils to generate heat within the metal charge. This process prevents oxidation, ensures precise temperature control, and results in superior material properties. The furnace is particularly valuable for producing advanced alloys used in aerospace, medical, and energy applications where purity and consistency are critical.
Key Points Explained:
-

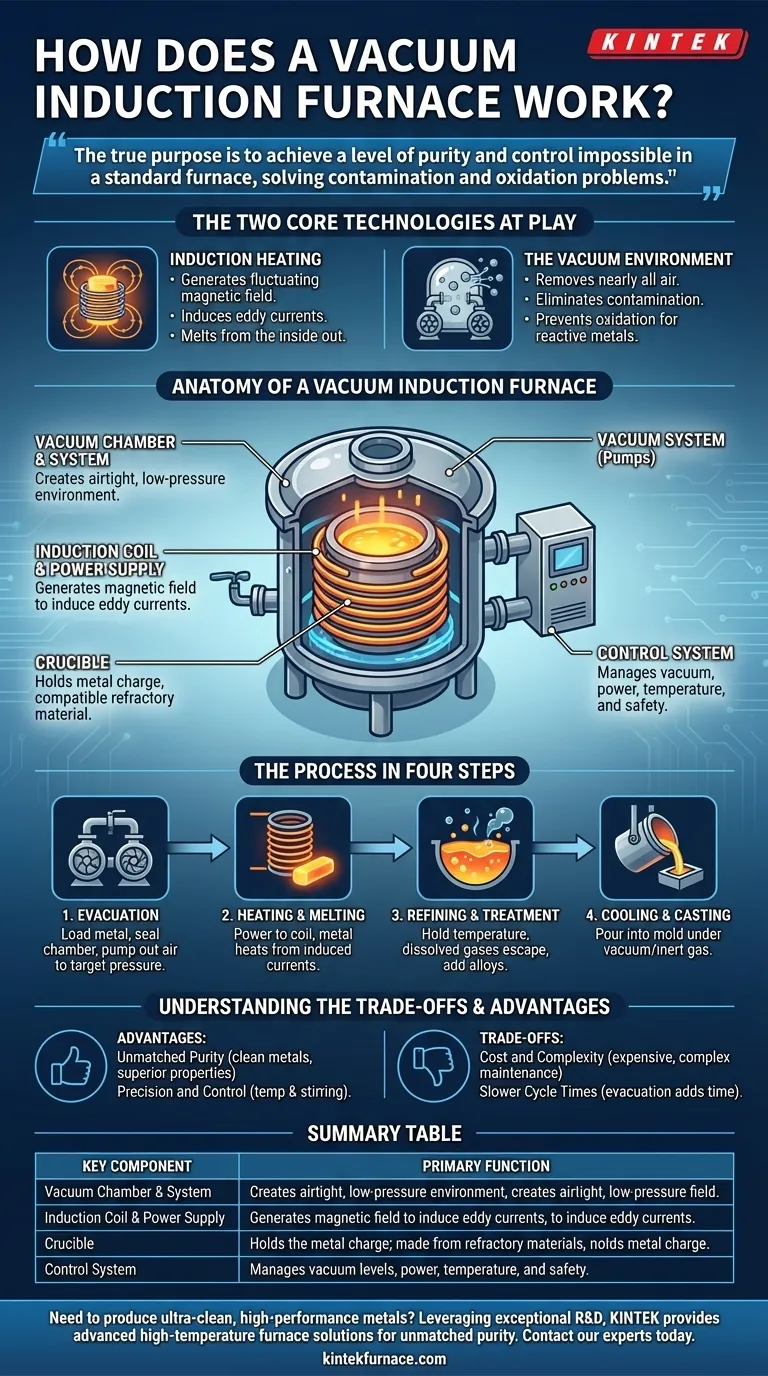

Vacuum Creation
- The furnace chamber is evacuated using a vacuum pump system to remove air and gases, achieving pressures as low as 10^-3 to 10^-6 mbar.
- This eliminates oxygen, preventing oxidation and contamination of the melt, which is crucial for reactive metals like titanium or nickel-based superalloys.
- The vacuum also removes dissolved gases (e.g., hydrogen, nitrogen) from the molten metal, improving final material properties.
-
Induction Heating Mechanism
- Alternating current passes through water-cooled copper coils surrounding the crucible, creating a high-frequency electromagnetic field.
- This field induces eddy currents in the conductive metal charge, generating heat through resistance (Joule heating).
- Heating rates can exceed 300°C/min, enabling rapid melting while maintaining precise temperature control (±5°C).
-
Material Processing Stages
- Charging: Solid metal (e.g., scraps, ingots) is loaded into a refractory-lined crucible.
- Melting: The vacuum is established, and induction heating liquefies the charge. Additional alloying elements may be added during melting.
- Refining: The vacuum degasses the melt, while electromagnetic stirring ensures homogeneous composition.
- Pouring: The molten metal is cast into molds, often under controlled atmosphere or vacuum to preserve quality.
-
Key Components
- Crucible: Typically made of ceramic (e.g., alumina, zirconia) or graphite, resistant to thermal shock and chemical erosion.
- Coil System: Designed for optimal electromagnetic coupling with the charge; frequency ranges from 50 Hz to 10 kHz depending on melt size.
- Vacuum System: Combines roughing pumps (mechanical) and high-vacuum pumps (diffusion or turbomolecular) for rapid evacuation.
- Control Systems: Monitor and adjust power input, temperature, and vacuum levels in real-time for repeatable results.
-
Advantages Over Conventional Furnaces
- Purity: Eliminates oxide/nitride inclusions; reduces impurities to <10 ppm levels.
- Alloy Flexibility: Enables melting of reactive metals (e.g., Ti, Zr) impossible to process in air.
- Energy Efficiency: Induction heating provides 60-75% thermal efficiency vs. 40-50% for combustion furnaces.
- Process Control: Computerized systems log all parameters for quality assurance and traceability.
-
Industrial Applications
- Aerospace: Superalloy turbine blades requiring creep resistance at high temperatures.
- Medical: ASTM F136 titanium for implants where biocompatibility is critical.
- Energy: Rare-earth magnets in wind turbines and electric vehicles.
- Research: Development of novel alloys with tailored microstructures.
Modern vacuum induction furnace systems often integrate additional features like tilt pouring, multiple vacuum ports for sampling, and inert gas backfilling for specialized operations. Their ability to combine rapid melting with ultra-clean processing makes them indispensable for high-value metallurgy.
Summary Table:
| Key Feature | Description |
|---|---|
| Vacuum Creation | Removes oxygen and contaminants, achieving pressures as low as 10^-3 to 10^-6 mbar. |
| Induction Heating | Uses high-frequency electromagnetic fields to heat metal rapidly (±5°C control). |
| Material Processing | Stages include charging, melting, refining, and pouring under controlled conditions. |
| Advantages | Purity (<10 ppm impurities), alloy flexibility, energy efficiency (60-75%), and precise control. |
| Applications | Aerospace superalloys, medical implants, rare-earth magnets, and advanced research. |
